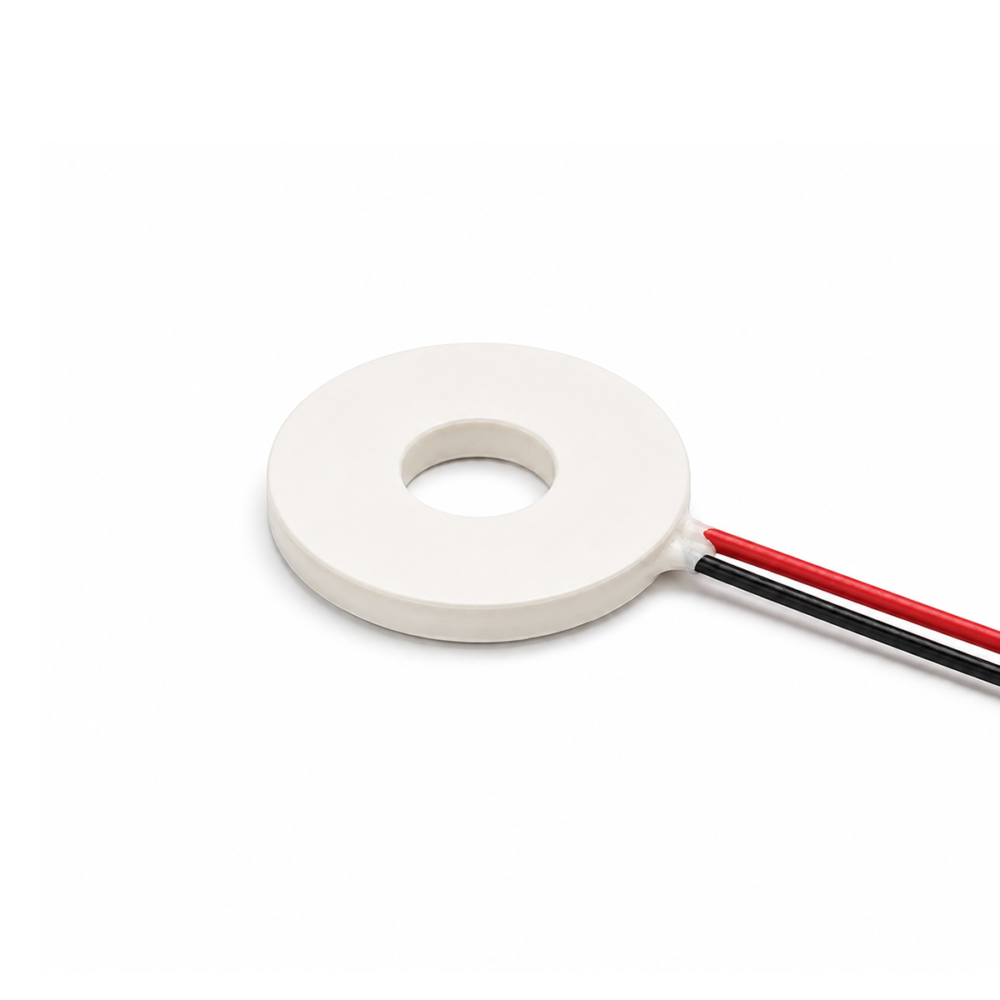

ATEC1-49-3AS 12.6W 3A Circular Thermoelectric Cooler (TEC) Module (Ø26mm)
$29.00
Circular Thermoelectric Cooler (TEC / Peltier Module)
Qmax: 12.6 W
Imax: 3 A
Vmax: 5.5 V
ΔTmax: 63°C
Dimensions: 26 × 10 × 3.3 mm
Sealing: Sealed
Discount per Quantity
| Quantity | Price |
|---|---|
| 1 - 4 | $29.00 |
| 5 - 24 | $28.42 |
| 25 - 99 | $27.84 |
| 100 + | $27.26 |
Product Overview
ATEC1-49-3AS is a sealed, single-stage thermoelectric cooler (TEC / Peltier module) rated 3 A, 12.6 W Qmax and 63°C ΔTmax in a 26 × 10 mm, 49-couple package (5.5 V Vmax).
Its edge-sealed construction blocks moisture for humid or condensing environments. Ideal for temperature control of TO-can laser diodes, photodetectors and circular optical sub-assemblies; pairs with ATI TEC controllers and NTC thermistors.
Specifications
| Qmax | 12.6 W |
| Imax | 3 A |
| Vmax | 5.5 V |
| ΔTmax | 63°C |
| Lc | 26 mm |
| W | 10 mm |
| H | 3.3 mm |
| Construction / Temp. Range | Sealed, single-stage; -55°C to +85°C |
| Weight | 0.2 lbs |
|---|
