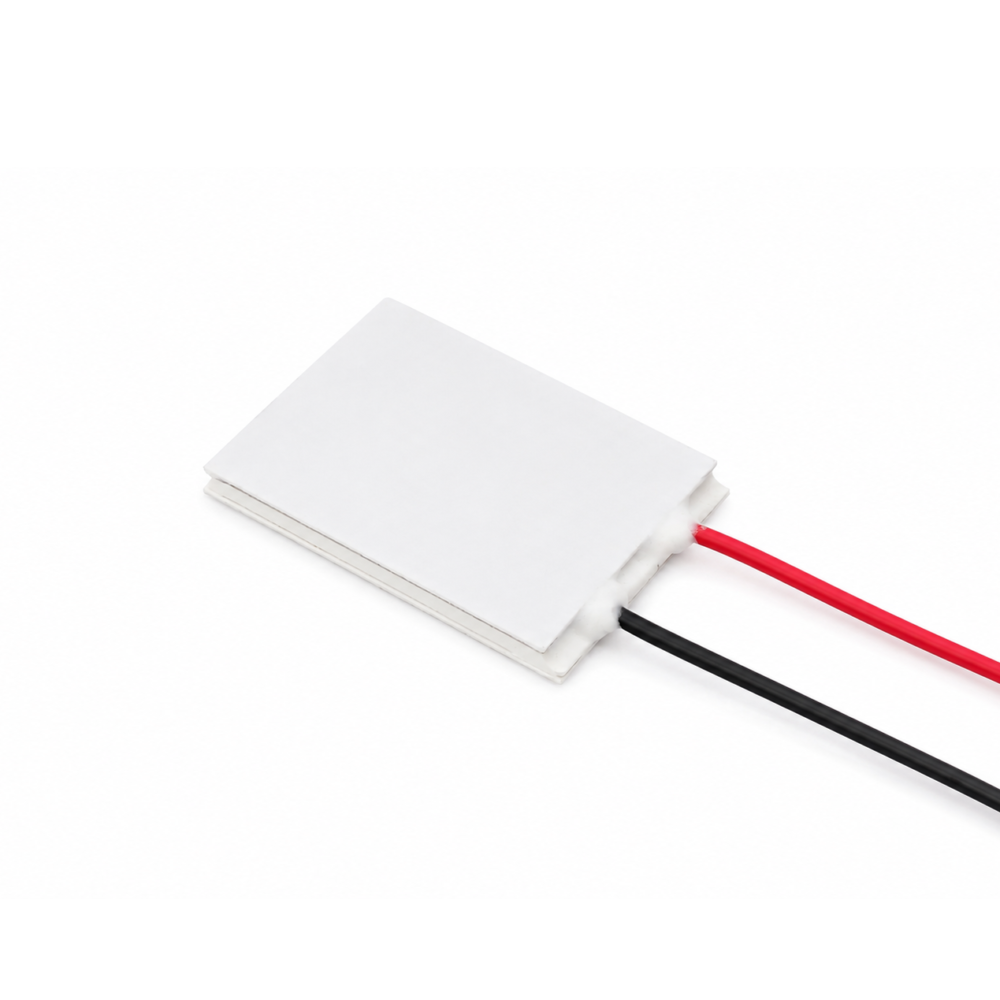

ATE1-TC-127-7ASH 69W 7A Thermal Cycling Thermoelectric Cooler (TEC) Module (30×40mm)
$32.00
Thermal Cycling (Long-Life) Thermoelectric Cooler (TEC / Peltier Module)
Qmax: 69 W
Imax: 7 A
Vmax: 18.9 V
ΔTmax: 78°C
Dimensions: 30 × 40 × 3.4 mm
Sealing: Sealed
Out of stock
Product Overview
ATE1-TC-127-7ASH is a sealed, single-stage thermoelectric cooler (TEC / Peltier module) rated 7 A, 69 W Qmax and 78°C ΔTmax in a 30 × 40 mm, 127-couple package (18.9 V Vmax).
Its edge-sealed construction blocks moisture for humid or condensing environments. Ideal for temperature control of PCR thermal cyclers, DNA amplification and bio-instruments; pairs with ATI TEC controllers and NTC thermistors.
Specifications
| Qmax | 69 W |
| Imax | 7 A |
| Vmax | 18.9 V |
| ΔTmax | 78°C |
| Lc | 30 mm |
| Lh | 30 mm |
| W | 40 mm |
| H | 3.4 mm |
| Construction / Temp. Range | Sealed, single-stage; -55°C to +85°C |
