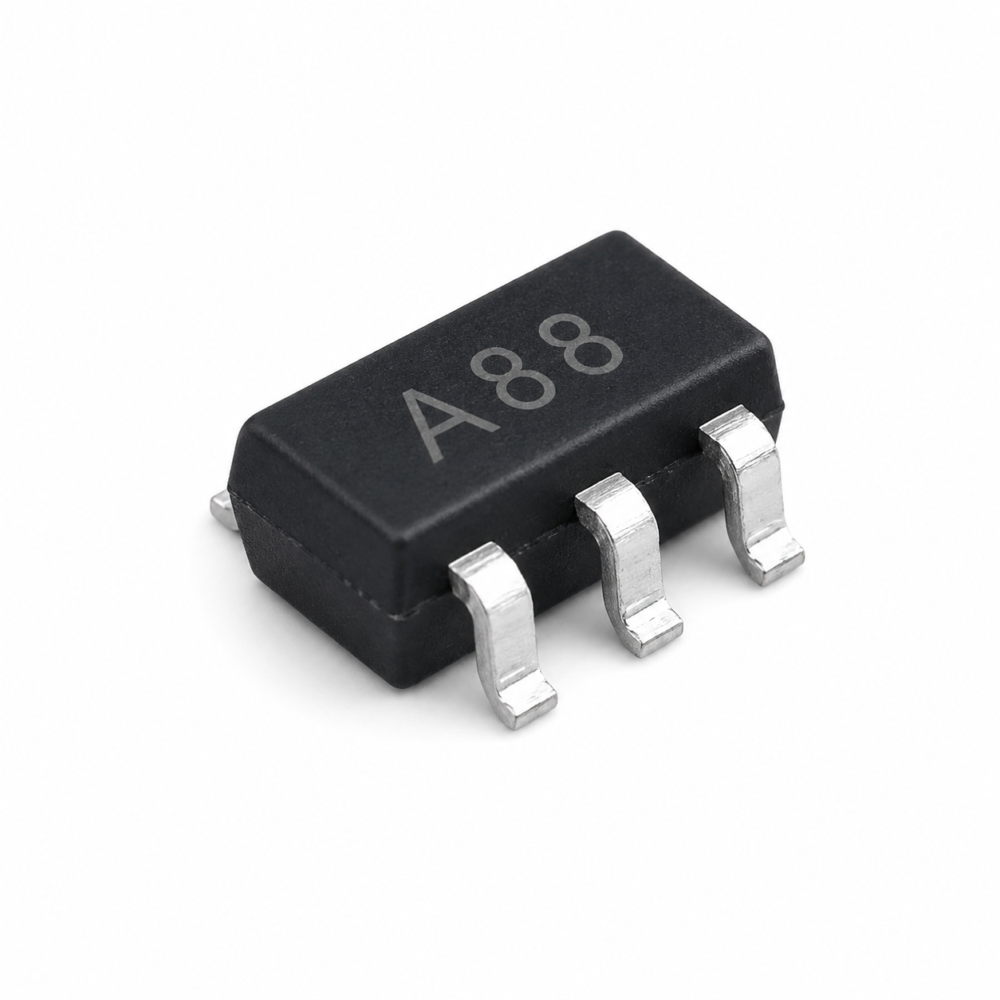

AT1881 36V 12MHz Low-Offset Operational Amplifier
$1.89
High-Voltage Operational Amplifier
Supply Voltage: 4.5V ~ 36V
Bandwidth (GBW): 12MHz
Low Offset: ±15µV, Low Noise 6nV/√Hz
Out of stock
Product Overview
The AT1881 is a high supply voltage operational amplifier with 12MHz gain-bandwidth, ±15µV maximum input offset, and 6nV/√Hz low input noise density. It is designed for precision signal conditioning in industrial and instrumentation applications.
The AT1881 features rail-to-rail output swing, input common-mode range extending to V−, and integrated over-temperature protection. It is suitable for sensor interfacing, active filters, motor control, and low-noise power supply designs.
Specifications
| Supply Voltage | 4.5V to 36V |
| Gain Bandwidth (GBW) | 12MHz |
| Input Offset Voltage | ±15µV (Max) |
| Input Voltage Noise | 6nV/√Hz @ 1kHz |
| Slew Rate | 12V/µs |
| Input/Output | Rail-to-Rail Output |
| Operating Temperature | −40°C to +125°C |
| Protection | Over-Temperature |
| Weight | 0.3 lbs |
|---|
