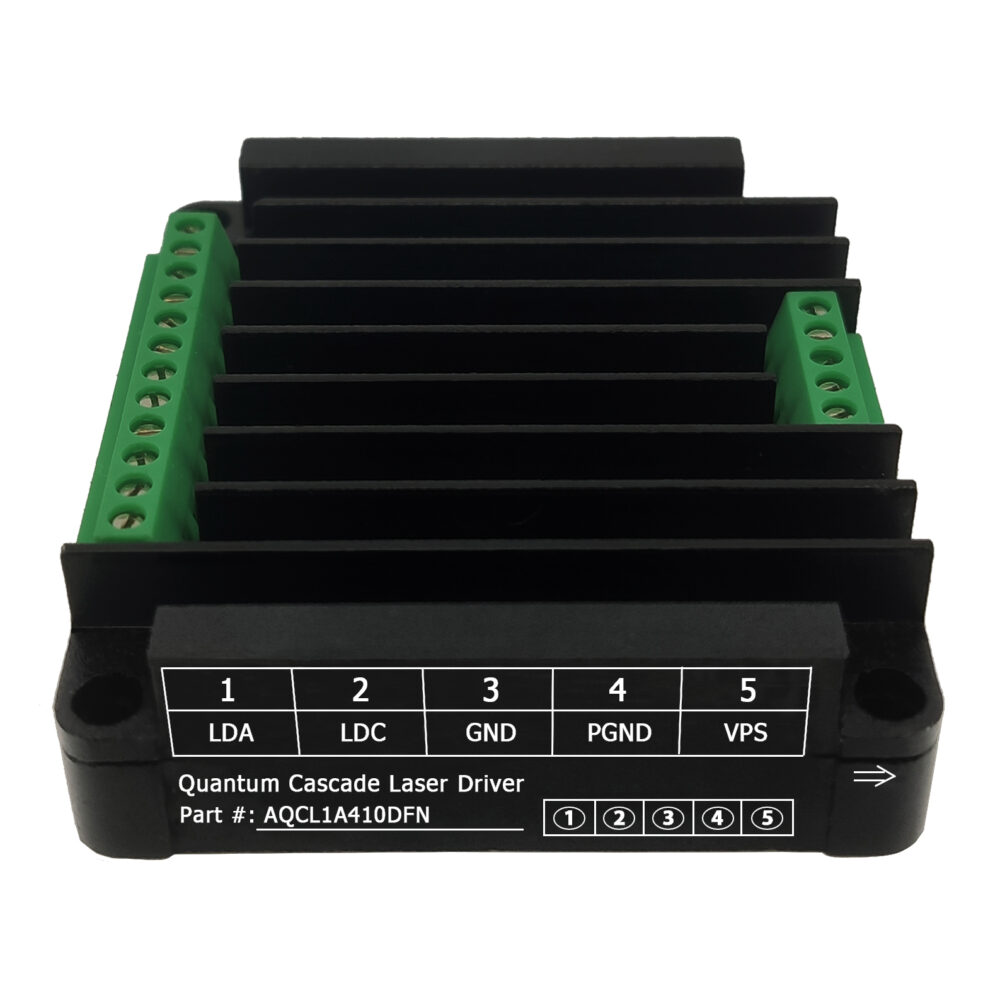

AQCL1A410DFN Ultra-Low Noise Laser Driver, 1A, High Voltage DC Input
$9,999.99
Constant Current Laser Diode Driver
Input Voltage (VVPS): 10V ~ 28V
Output Voltage: -18V ~ -8V
Max. Output Current: 1A
Noise: <1.25µAP-P
Discount per Quantity
| Quantity | Price |
|---|---|
| 1 - 9 | $9,999.99 |
| 10 - 49 | $9,996.99 |
| 50 - 199 | $9,992.99 |
| 200 - 499 | $9,989.99 |
| 500 + | $9,984.99 |
Product Overview
The AQCL1A410DFN is a constant current laser diode driver designed for driving up to 1A laser diodes with ultra-low output noise. It operates from a 10V ~ 28V power supply and delivers stable current output with a -18V ~ -8V output voltage range, with output noise <1.25µAP-P (0.1Hz ~ 10Hz).
The driver is suitable for applications including QCL (Quantum Cascade Laser) Driving, Radar, Medical Diagnostics, Spectroscopy, Chemical Analysis, General Measurement Systems.
Specifications
| Input Voltage (VVPS) | 10V ~ 28V |
| Output Voltage | -18V ~ -8V |
| Max. Output Current | 1A |
| Noise | <1.25µAP-P |
| Stability | <20ppm/°C |
| Modulation BW | DC ~ 1MHz |
| Drive Type | Linear |
| Package Type | Chassis |
| Input Type | DC High |
| Operating Temperature (°C) | -40 ~ 65 (ambient) |
| Dimension (mm) | 49.4×45×14 |
| Weight | 2 lbs |
|---|
