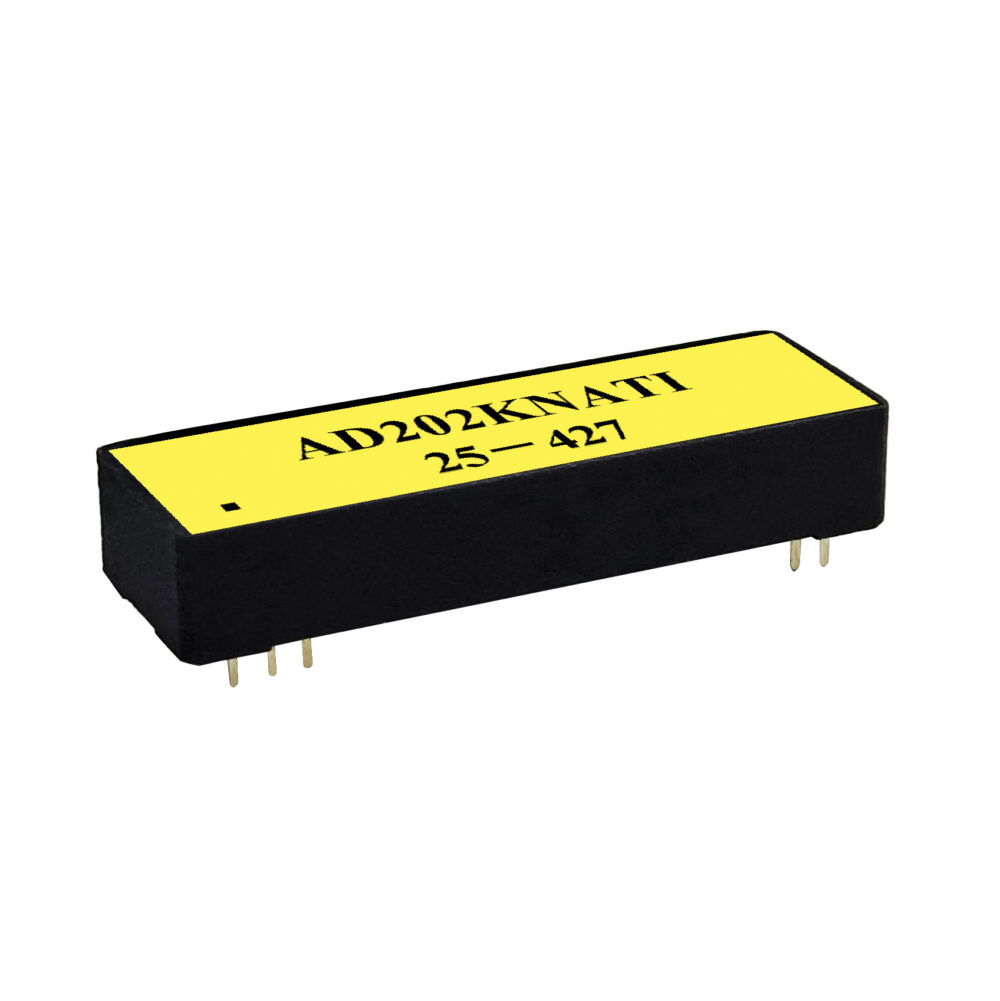

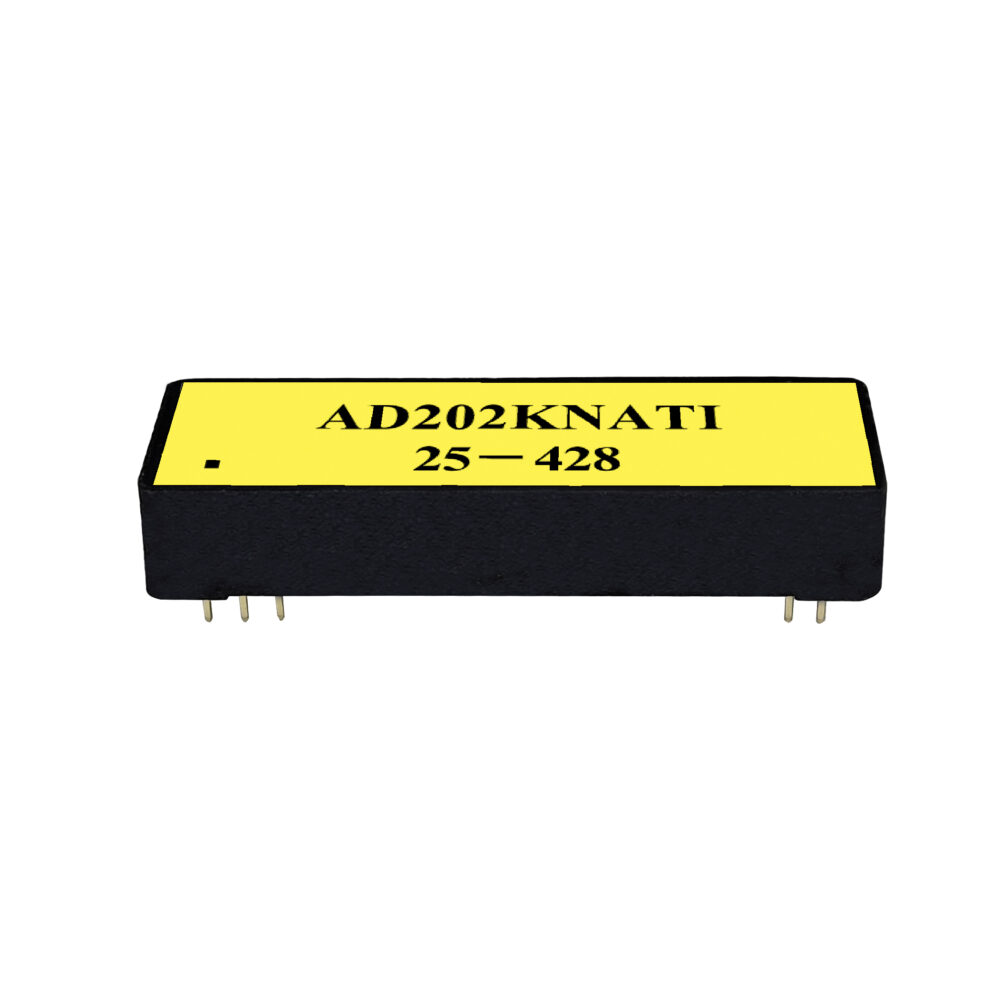

AD202KNATI High Voltage Isolation Amplifier, AD202KN Replacement, 1500V rms, DIP
$79.00
High Voltage Isolation Amplifier
AD202KN Drop-in Replacement in DIP Package
1500V rms Isolation (±2000V peak), 800kHz Bandwidth
±0.02% Linearity, 12mA Supply Current
Discount per Quantity
| Quantity | Price |
|---|---|
| 1 - 9 | $79.00 |
| 10 - 49 | $76.00 |
| 50 - 199 | $73.00 |
| 200 - 499 | $70.00 |
| 500 + | $67.00 |
Product Overview
The AD202KNATI is a high voltage isolation amplifier for applications where an input signal must be measured, processed or transmitted without a galvanic connection. It provides signal isolation and isolated power in a compact DIP package.
Analog Devices discontinued the AD202 family in October 2022, with final shipments in October 2024, and named no replacement part and no pin-compatible alternative. The AD202KNATI is an upgraded drop-in replacement for the AD202KN: the pinout and footprint are unchanged, so no board modification is required. It is RoHS compliant, which the original part was not, and our datasheet guarantees production for at least ten years.
It suits multichannel data acquisition, current shunt measurement, motor control, process signal isolation and high voltage instrumentation, and other applications calling for isolated analog measurement.
The AD202KNATI achieves both signal and power isolation through internal transformer coupling, removing the external isolated DC-DC converter from the design and reducing board space, component count and overall system cost.
The AD202KNATI is powered from a single 15 V DC supply and provides isolated power outputs of ±7.5 V for the input amplifier, the modulator and a light external load. An uncommitted input operational amplifier allows buffering or gain to be added without extra parts.
Specifications
| Isolation Rating | 1500V rms continuous (±2000V peak continuous) |
| Bandwidth | 800kHz full-power (−3dB) |
| Linearity | ±0.02% |
| Rise Time | 0.5µs |
| Package | DIP |
| Supply Voltage | 15V DC ±5% |
| Supply Current | 12mA |
| Common-Mode Rejection | 130dB at gain = 100V/V |
| Isolated Power Output | ±7.5V, 400µA total |
| Isolation Ports | Two-port: input isolated from output and power |
| Coupling Method | Internal transformer coupling |
| Operating Temperature | −40°C to +85°C |
| RoHS | Compliant; documentation available on request |
| Production Support | Guaranteed production for at least 10 years |
| Replacement Type | Upgraded drop-in replacement for AD202KN |
| Isolation Rating | 1500V rms |
|---|---|
| Bandwidth | 800kHz |
| Linearity | ± 0.02% |
| Power Supply Current | 12mA |
| HVIA Package | DIP |
