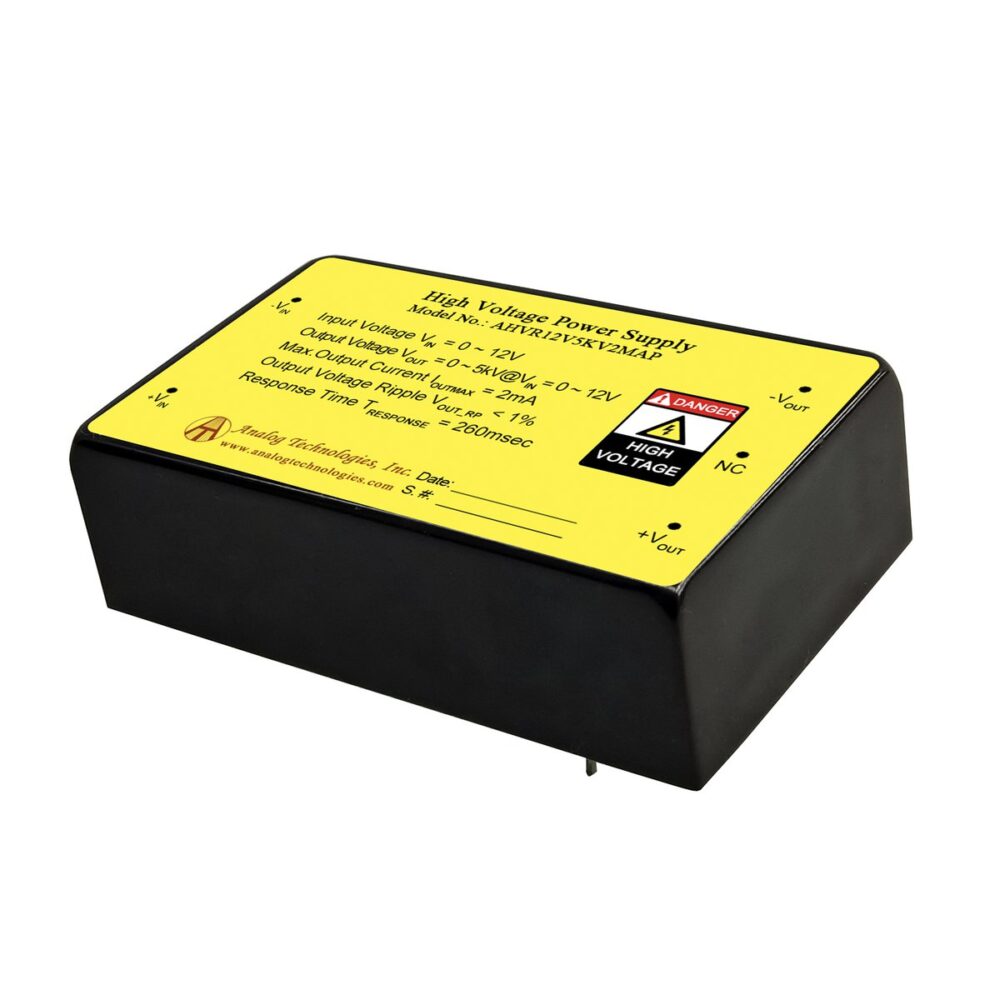

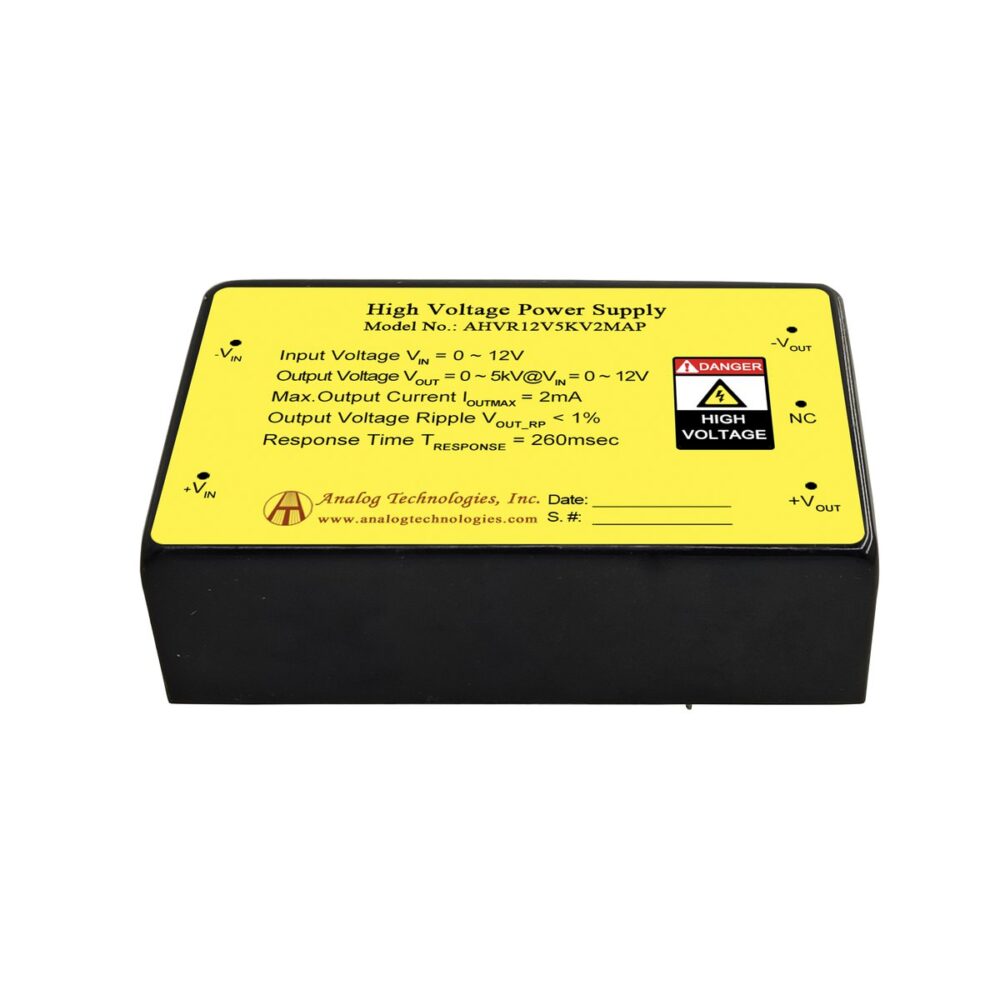

AHVR12V5KV2MAP 5kV 2mA HV Power Supply (0 ~ 12V Input)
$199.00
I/O Proportional High Voltage Power Supply
Input Voltage: 0 ~ 12V
Output Voltage: 0V ~ 5kV
Max. Output Current: 2mA
Discount per Quantity
| Quantity | Price |
|---|---|
| 1 - 9 | $199.00 |
| 10 - 49 | $189.00 |
| 50 - 99 | $179.00 |
| 100 + | $169.00 |
Product Overview
The AHVR12V5KV2MAP is an I/O proportional DC-DC high voltage power supply module. Its output voltage is directly proportional to the input voltage, delivering 0V to 5kV as the input is varied over 0V to 12V, with a maximum output current of 2mA.
The output voltage is set by the input supply voltage rather than by a separate control pin, which suits systems that already have a variable or regulated low-voltage rail available. Typical applications include precision control systems, automated instruments, proportional control applications, and programmable high voltage systems.
The output voltage is continuously adjustable from 0V up to the rated maximum by varying the input supply voltage, to which the output is directly proportional; the typical turn-on voltage is 0.7V. The output is unregulated, so the actual output voltage also depends on load current — the rated maximum is specified at full load.
Specifications
| Input Voltage | 0V to 12V |
| Output Voltage | 0V to 5kV |
| Max. Output Current | 2mA |
| Output Type | I/O Proportional |
| Package Type | DIP |
| Input Type | DC |
| Dimension | 71.1×43.2×21.6 |
| Weight | 3 lbs |
|---|---|
| Input Voltage | 12V, 5V |
| Polarity | Positive |
| Package Type | DIP |
