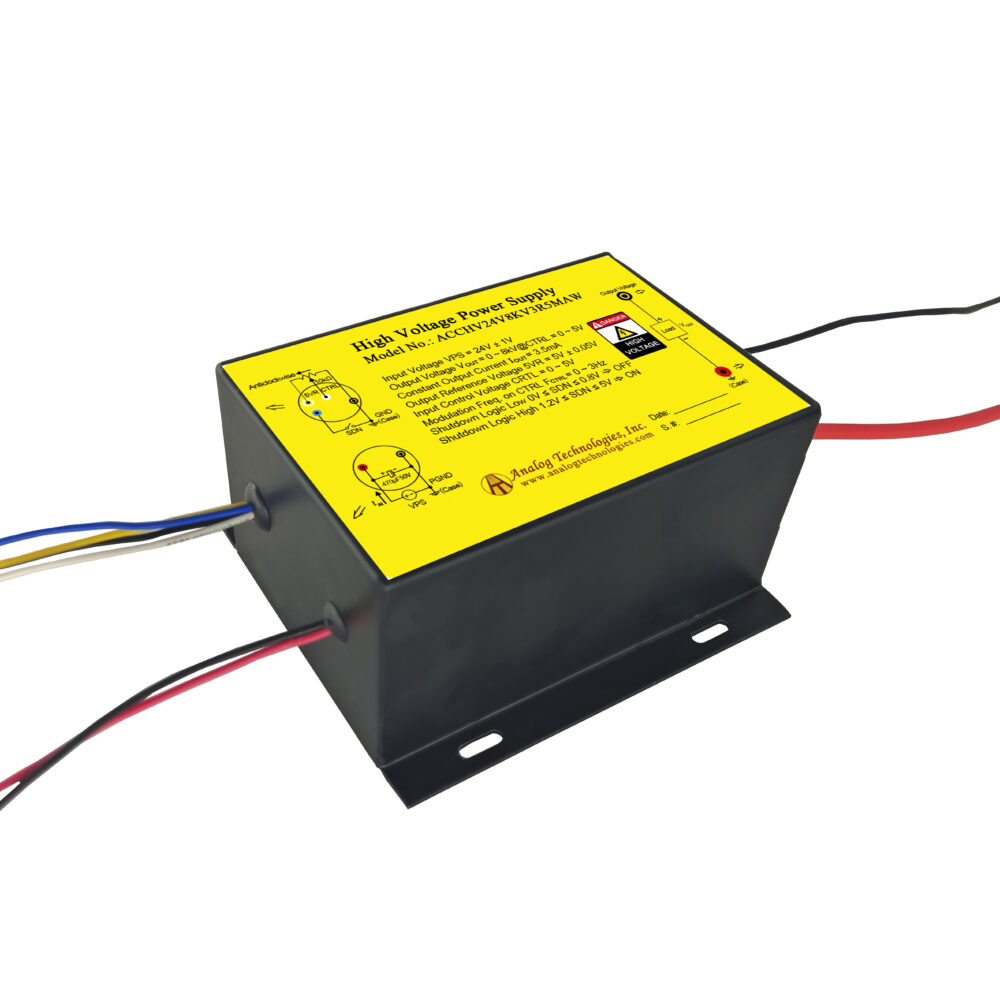

ACCHV24V8KV3R5MAW 0 to 8kV 3.5mA HV Power Supply (24V Input)
$399.00
Capacitor Charging High Voltage Power Supply
Input Voltage: 24V ± 1V
Output Voltage: 0V ~ 8kV
Max. Output Current: 3.5mA
Discount per Quantity
| Quantity | Price |
|---|---|
| 1 - 9 | $399.00 |
| 10 - 49 | $389.00 |
| 50 - 99 | $379.00 |
| 100 + | $369.00 |
Product Overview
The ACCHV24V8KV3R5MAW is a capacitor charging high voltage power supply designed for 24V input capacitor charging hv power supplies. It converts 24V ± 1V input into a high voltage output up to 0 to 8kV, with a constant output current of 3.5mA.

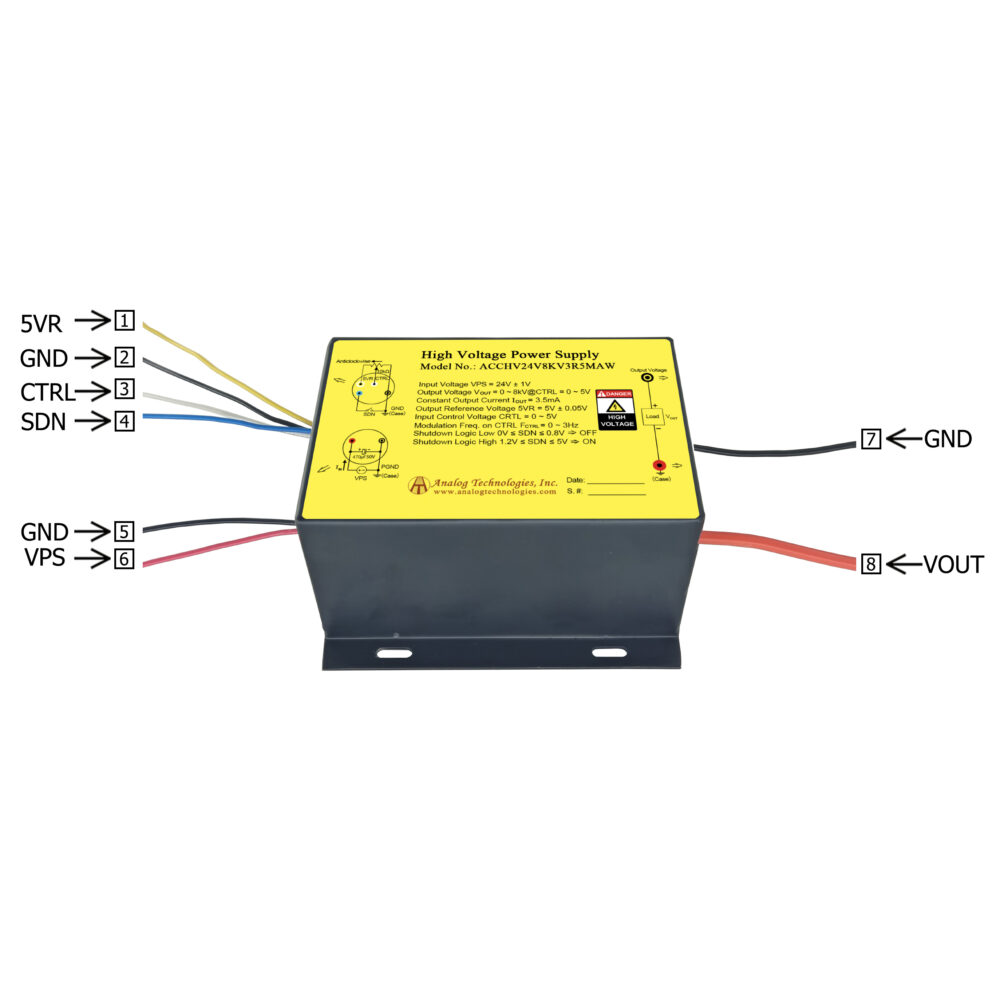

The output voltage is linearly adjustable from 0 to 8kV via a 0 to 5V control signal (CTRL), with a 5V ± 0.05V reference and electronic shutdown control. Housed in a metal enclosure for zero EMI and good heat sinking, it is suitable for capacitor charging, X-ray machines, spectral analysis, nondestructive inspection, semiconductor manufacturing equipment, particle accelerators, capillary electrophoresis, physical vapor deposition, electrospinning, and DC reactive magnetron sputtering.
The output voltage is continuously adjustable from 0V up to the rated maximum via the CTRL pin, using either a potentiometer or an external 0V to 5V analog signal. The output is linearly proportional to the control voltage.
Specifications
| Input Voltage | 24V ± 1V |
| Output Voltage | 0V to 8kV |
| Max. Output Current | 3.5mA |
| Output Type | Constant Current/Constant Voltage (CCCV) |
| Package Type | Lead Wire |
| Input Type | DC |
| Dimension | 100×90×55 |
| Weight | 1 lbs |
|---|---|
| Input Voltage | 24V |
| Polarity | Positive |
| Package Type | Lead Wire |
