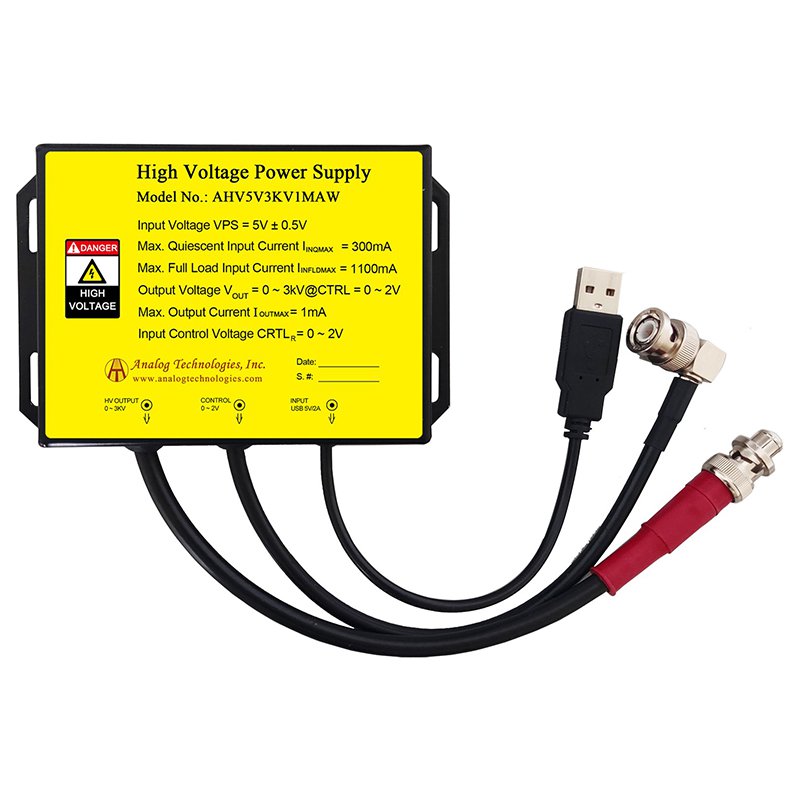

AHV5V3KV1MAW 3kV 1mA DC DC HV Power Supply (5V Input)
$179.00
DC-DC High Voltage Power Supply
Input Voltage: 4.5V ~ 5.5V
Output Voltage: 0V ~ 3kV
Max. Output Current: 1mA
Discount per Quantity
| Quantity | Price |
|---|---|
| 1 - 9 | $179.00 |
| 10 - 49 | $169.00 |
| 50 - 99 | $159.00 |
| 100 + | $149.00 |
Product Overview
The AHV5V3KV1MAW is a dc-dc high voltage power supply designed for 5v input high voltage power supplies. It converts 4.5V to 5.5V input into a high voltage output up to 3kV, with a maximum output current of 1mA.
The module is designed for efficient DC-DC high voltage conversion, featuring compact size, reliable regulation, and convenient integration into low voltage powered systems. It is suitable for applications such as laboratory experiments, portable systems, compact high voltage modules, and scientific instrumentation.
The output voltage is continuously adjustable from 0V up to the rated maximum via the CTRL pin, using either a potentiometer or an external 0V to 5V analog signal. The output is linearly proportional to the control voltage.
Specifications
| Input Voltage | 4.5V to 5.5V |
| Output Voltage | 0V to 3kV |
| Max. Output Current | 1mA |
| Output Type | Constant Voltage |
| Package Type | USB |
| Input Type | DC |
| Dimension | 125×80×30 |
| Weight | 3 lbs |
|---|---|
| Input Voltage | 5V |
| Polarity | Positive |
| Package Type | USB |
