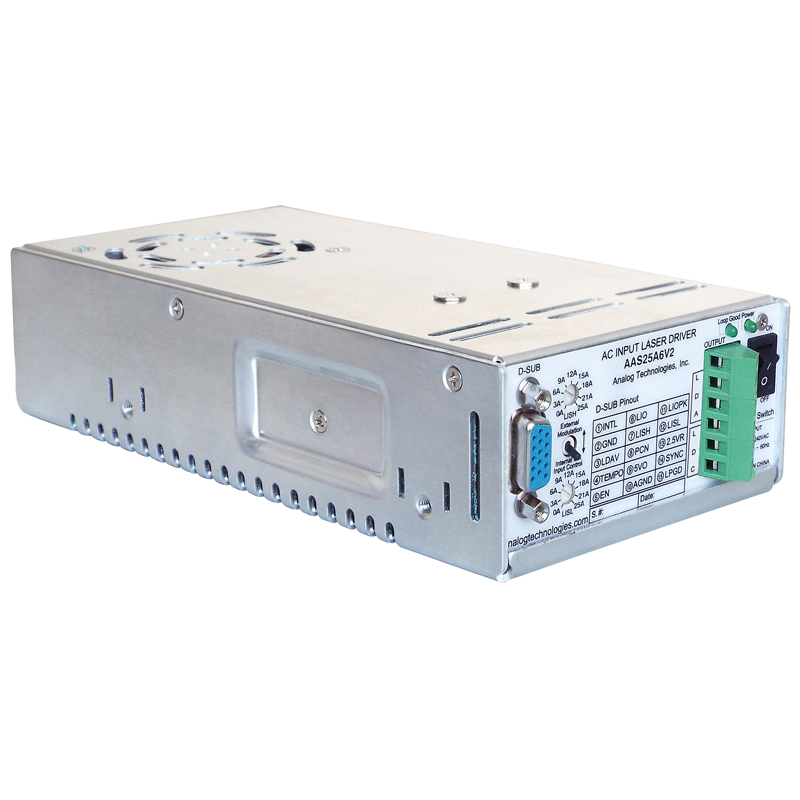

The AAS25A6V2 is a constant current laser diode driver designed for driving up to 25A laser diodes with low output noise. It operates from a universal AC mains input of 88VAC ~ 264VAC (47~63Hz) and delivers stable current output across a 1V ~ 6V load voltage range, with output noise 354µAP-P (0.1Hz~10Hz).
The driver is suitable for applications including High Current Diode Laser Bar Driving, Industrial Laser Systems, Material Processing, Medical Laser Equipment, Scientific Research.
Specifications
Input Voltage (VVPS)
88VAC ~ 264VAC (47~63Hz)
Output Voltage
1V ~ 6V
Max. Output Current
25A
Noise
354µAP-P (0.1Hz~10Hz)
Modulation BW
DC ~ 5kHz (digital)
Efficiency
70%
Drive Type
Switch
Package Type
Chassis
Input Type
AC Universal
Operating Temperature (°C)
-20 ~ 50
Dimension (mm)
199×99×50
Weight
5.3 lbs
Laser Input Voltage
AC Universal
Laser Max Current
15A And Above
Laser Drive Type
Switch
Laser Package
Chassis
Vin
88VAC ~ 264VAC (47 ~ 63Hz)
Iout
25A
Vf
1V ~ 6V
Noise
354µAP-P (0.1Hz ~ 10Hz)
