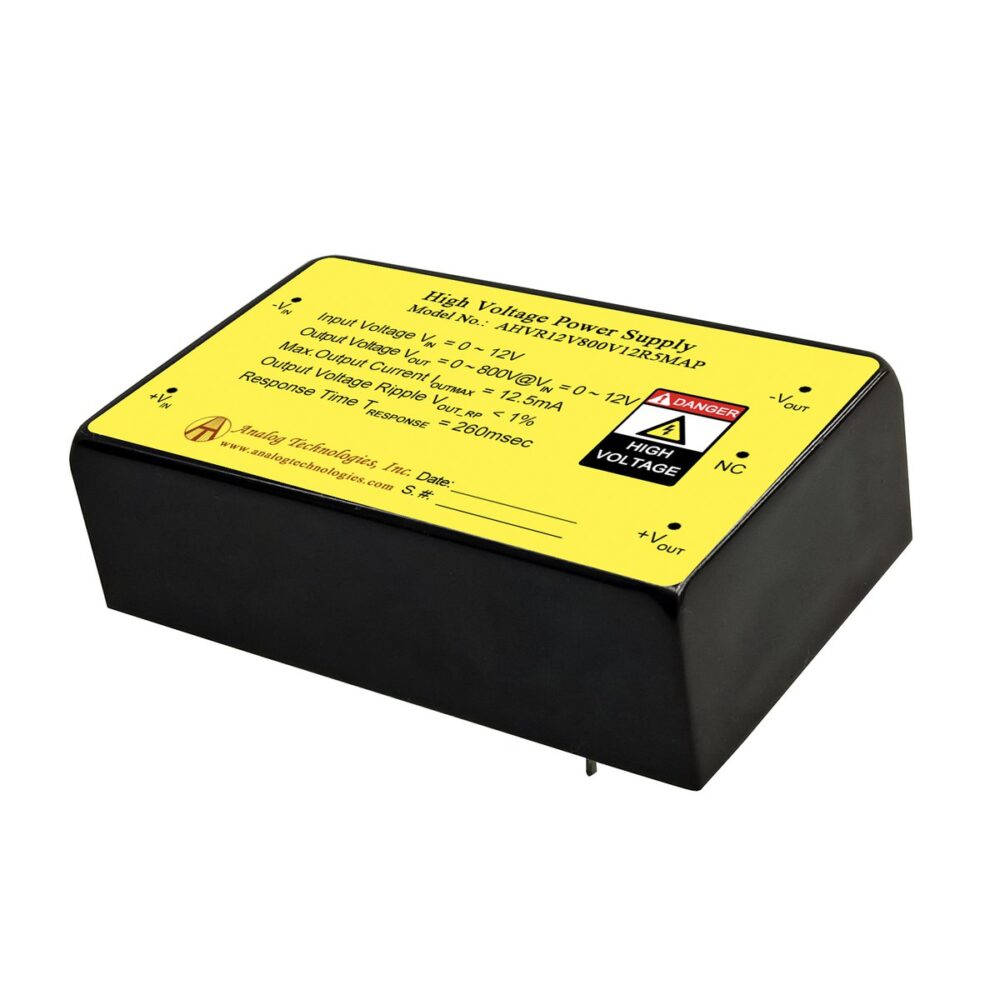

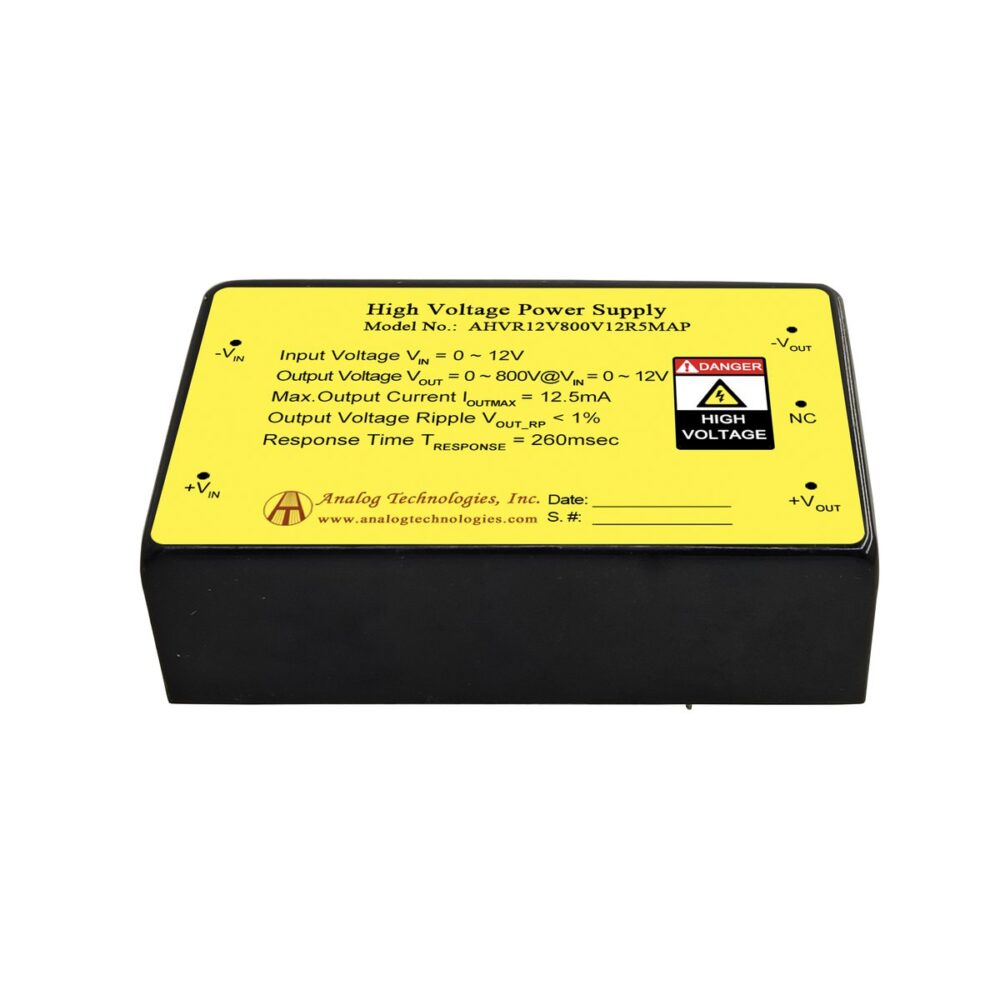

AHVR12V800V12R5MAP 800V 12.5mA HV Power Supply (0 ~ 12V Input)
$127.00
I/O Proportional High Voltage Power Supply
Input Voltage: 0 ~ 12V
Output Voltage: 0~800V
Max. Output Current: 12.5mA
Available on backorder
Discount per Quantity
| Quantity | Price |
|---|---|
| 1 - 9 | $127.00 |
| 10 - 49 | $117.00 |
| 50 - 99 | $107.00 |
| 100 + | $97.00 |
Product Overview
The AHVR12V800V12R5MAP is a i/o proportional high voltage power supply designed for i/o proportional dc-dc high voltage power supplies. It converts 0 to 12V input into a high voltage output up to 0~800V, with a maximum output current of 12.5mA.
The module supports proportional high voltage control, making it suitable for applications requiring adjustable output through external control signals and closed-loop system integration. It is suitable for applications such as precision control systems, automated instruments, proportional control applications, and programmable high voltage systems.
Specifications
| Input Voltage | 0 to 12V |
| Output Voltage | 0~800V |
| Max. Output Current | 12.5mA |
| Output Type | I/O Proportional |
| Package Type | DIP |
| Input Type | DC |
| Dimension | 71.1×43.2×21.6 |
| Weight | 3 lbs |
|---|---|
| Polarity | Positive |
| Package Type | DIP |
| Vin | 0 ~ 12V |
| Vout | 0 ~ 800V |
| Iout | 12.5mA |
| Dimension | 71.1×43.2×21.6 |
