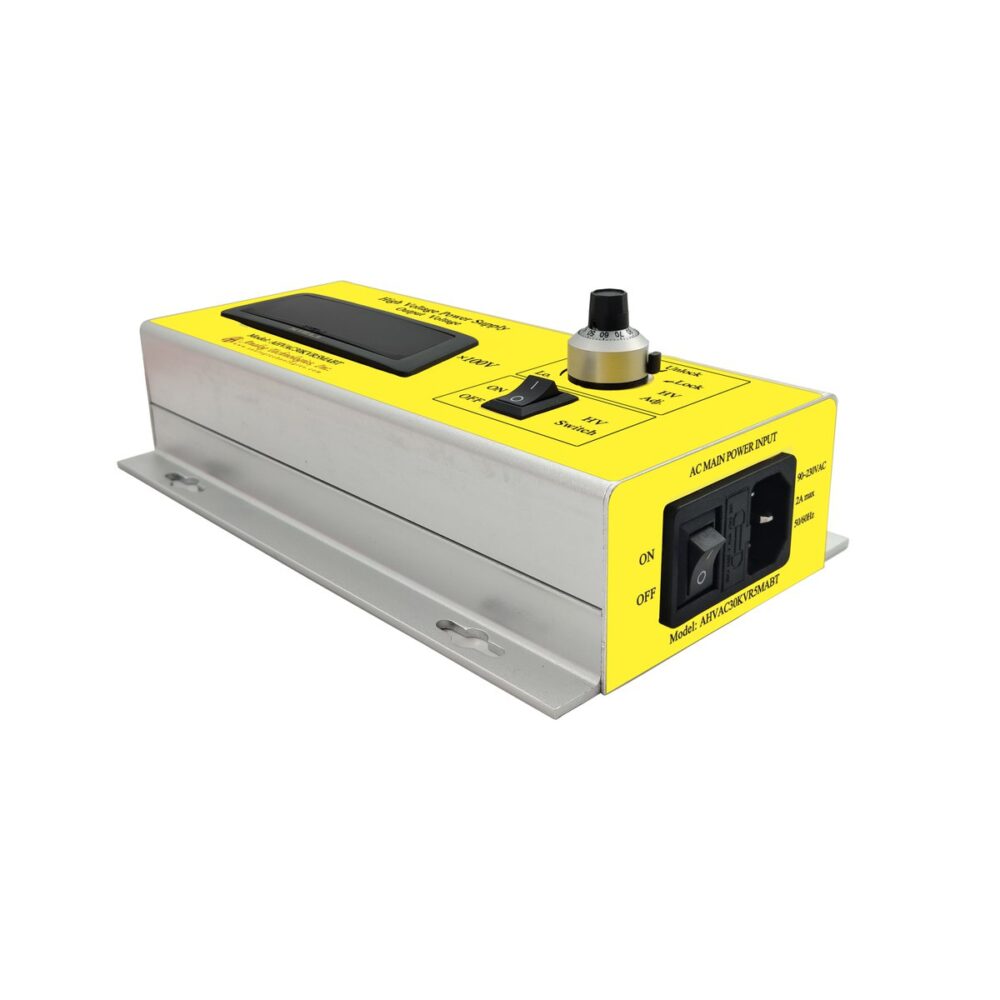

AHVAC30KVR5MABT 30kV 0.5mA AC DC HV Power Supply (90 ~ 230V Input)
$599.00
AC-DC High Voltage Power Supply
Input Voltage: 90 ~ 230V
Output Voltage: 0V ~ 30kV
Max. Output Current: 0.5mA
Discount per Quantity
| Quantity | Price |
|---|---|
| 1 - 9 | $599.00 |
| 10 - 49 | $589.00 |
| 50 - 99 | $579.00 |
| 100 + | $569.00 |
Product Overview
The AHVAC30KVR5MABT is a ac-dc high voltage power supply designed for ac-dc benchtop high voltage power supplies. It converts 90 to 230V input into a high voltage output up to 30kV, with a maximum output current of 0.5mA.
The module is designed for stable AC-DC high voltage conversion, offering reliable output performance, compact construction, and easy integration into equipment requiring mains-powered high voltage supply. It is suitable for applications such as laboratory equipment, industrial instruments, bench-top systems, and general high voltage power applications.

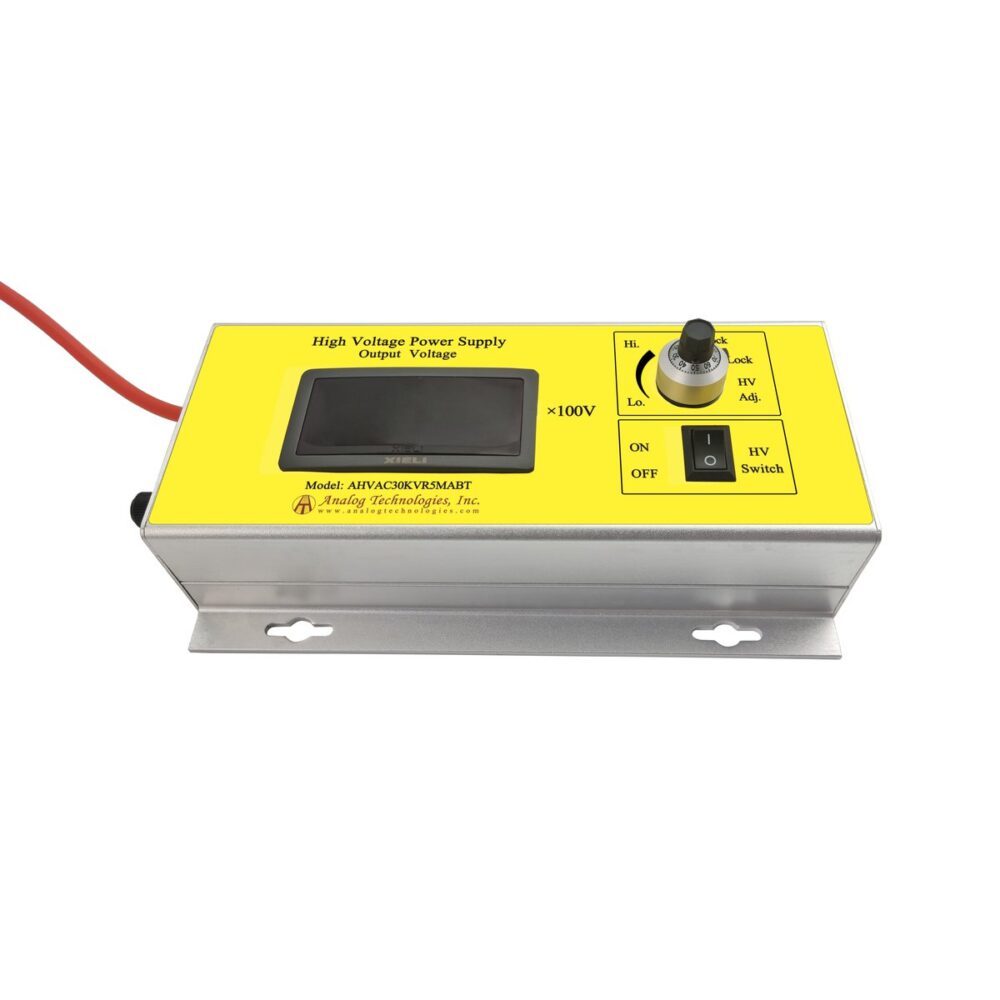

The output voltage is continuously adjustable from 0V up to the rated maximum using the front-panel 10-turn potentiometer, with the setting shown on the built-in digital display and held by a potentiometer lock.
Specifications
| Input Voltage | 90 to 230V |
| Output Voltage | 0V to 30kV |
| Max. Output Current | 0.5mA |
| Output Type | Constant Voltage |
| Package Type | Benchtop |
| Input Type | AC |

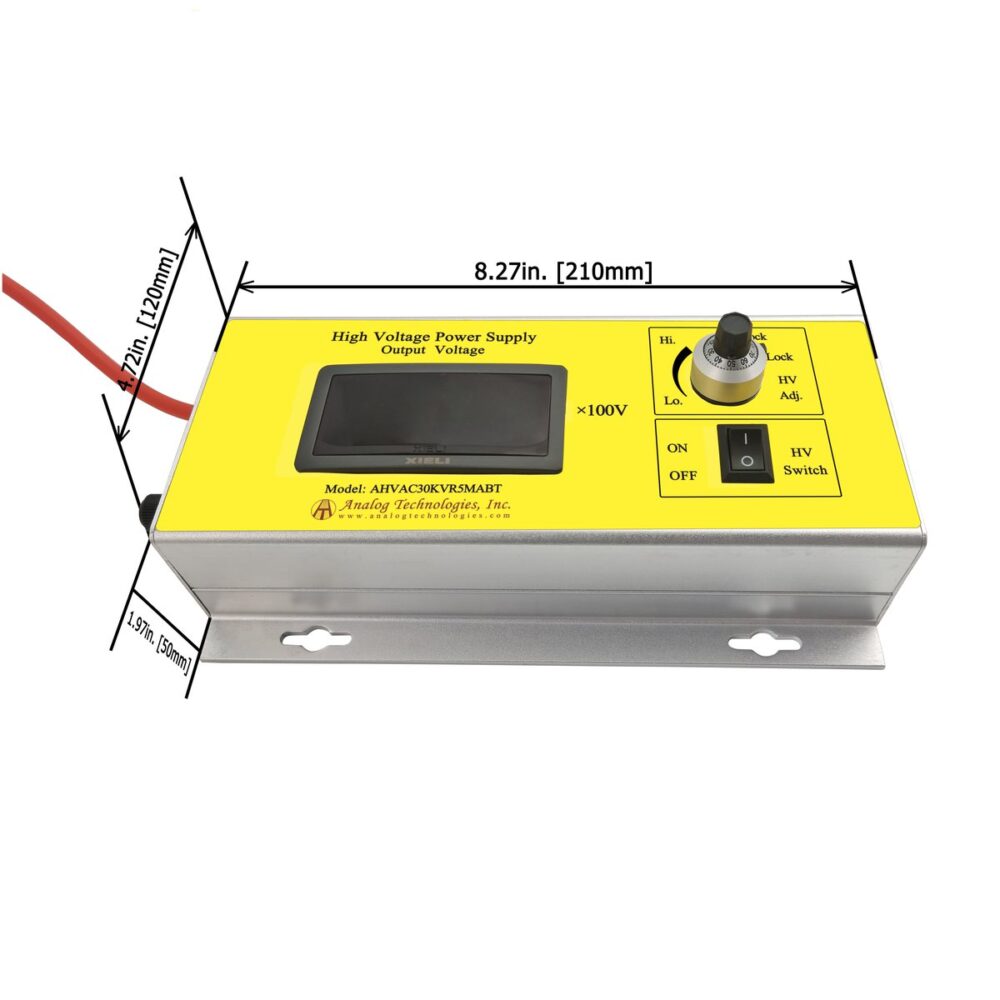

| Dimension | 210×120×50 |
| Weight | 7 lbs |
|---|---|
| Input Voltage | AC Input |
| Polarity | Positive |
| Package Type | Benchtop |
