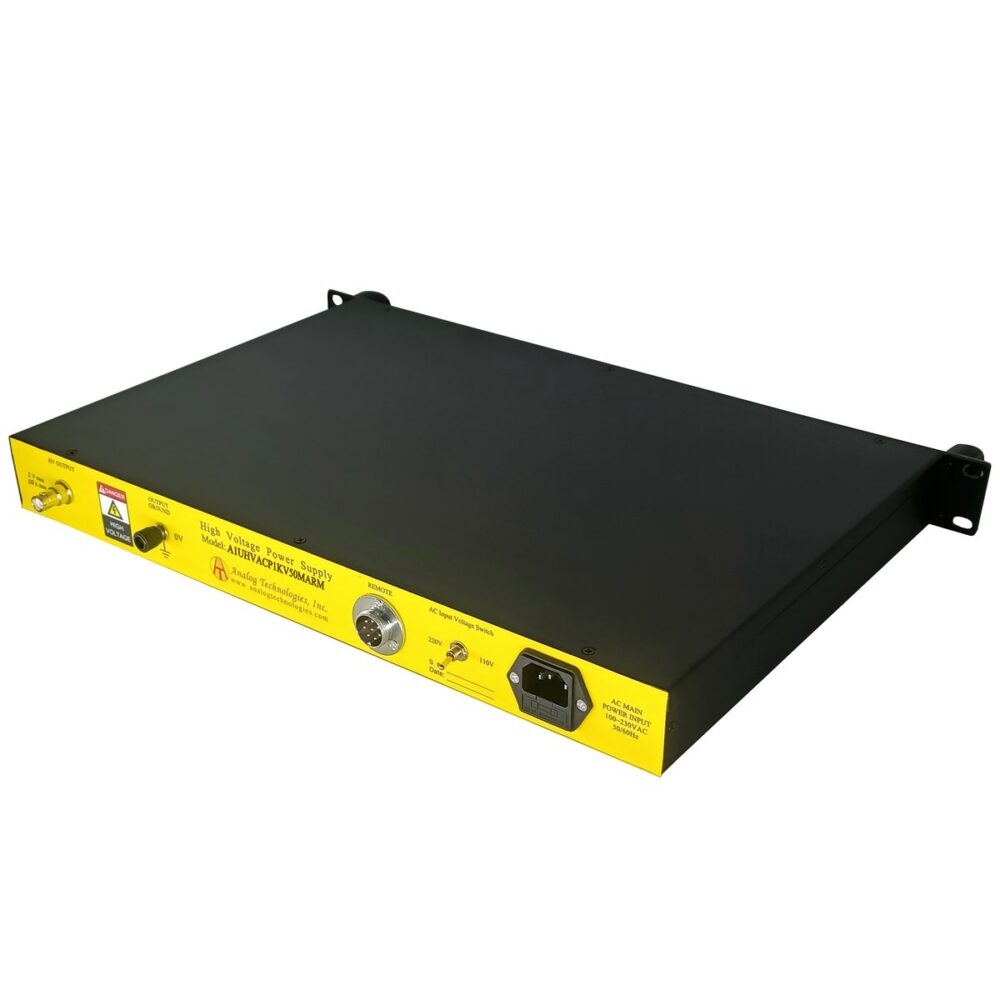

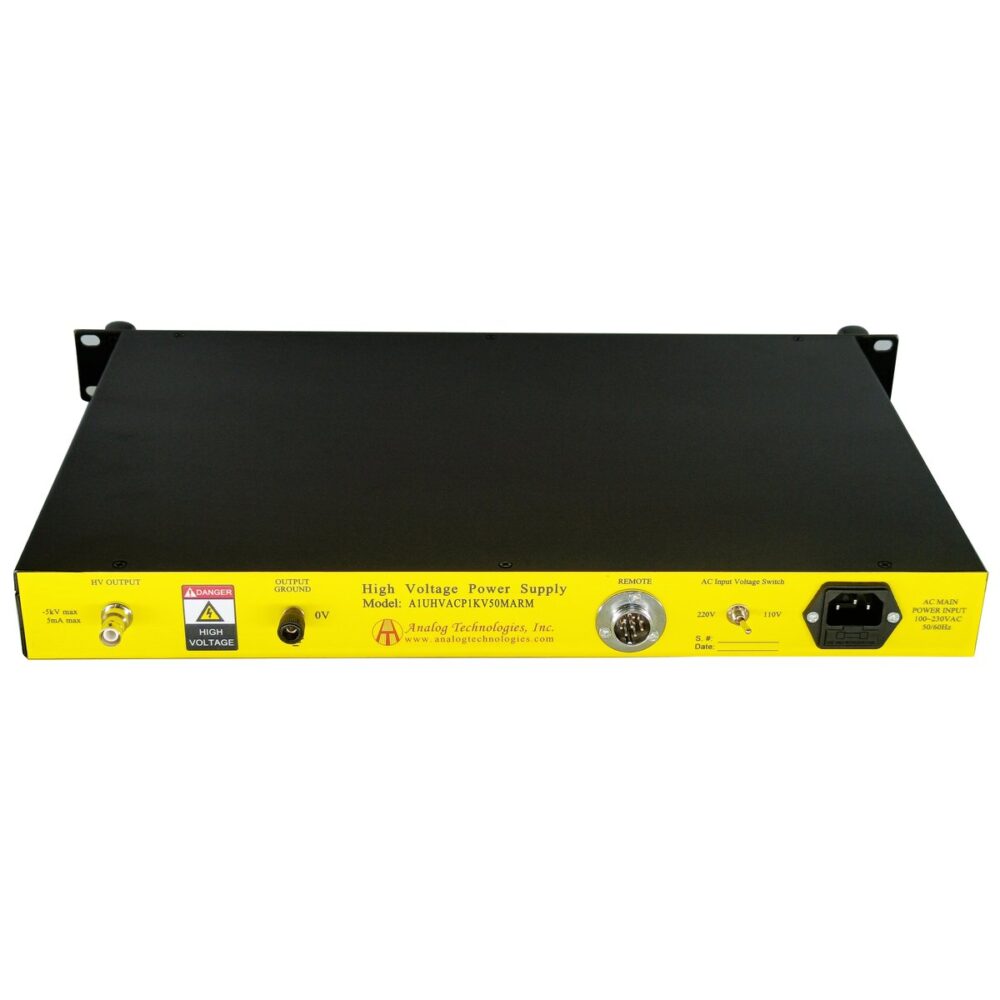

A1UHVACP1KV50MARM 1kV 50mA AC DC HV Power Supply (110V / 220V Input)
$2,299.00
AC-DC High Voltage Power Supply
Input Voltage: 110V / 220V
Output Voltage: 0V ~ 1kV
Max. Output Current: 50mA
Discount per Quantity
| Quantity | Price |
|---|---|
| 1 - 9 | $2,299.00 |
| 10 - 49 | $2,199.00 |
| 50 - 99 | $2,099.00 |
| 100 + | $1,999.00 |
Product Overview
The A1UHVACP1KV50MARM is a ac-dc high voltage power supply designed for a1u rack mount ac-dc high voltage power supplies. It converts 110V / 220V input into a high voltage output up to 1kV, with a maximum output current of 50mA.
The module is designed for stable AC-DC high voltage conversion, offering reliable output performance, compact construction, and easy integration into equipment requiring mains-powered high voltage supply. It is suitable for applications such as laboratory equipment, industrial instruments, bench-top systems, and general high voltage power applications.

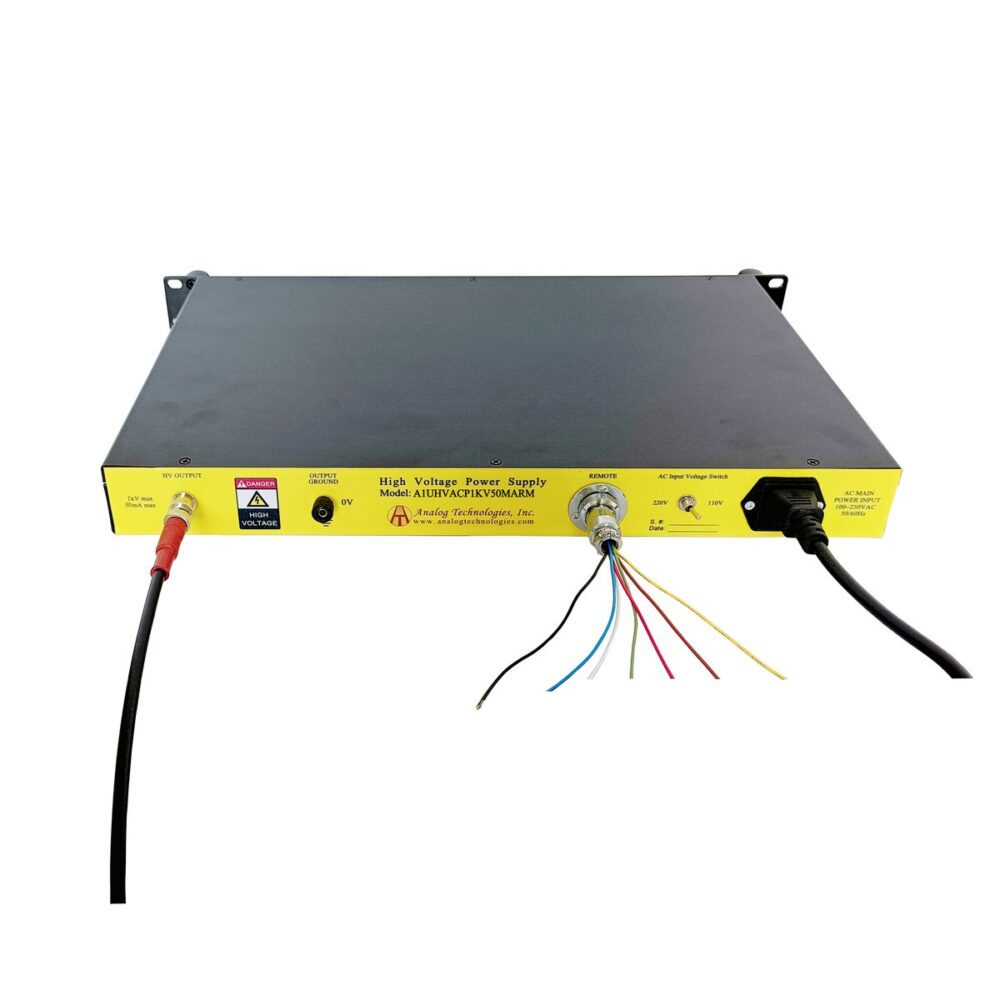

The output voltage is continuously adjustable from 0V up to the rated maximum through the remote voltage program input on the multi-pin control connector, where 0V to 5V corresponds to 0 to 100% of rated output. The same connector provides voltage and current monitor outputs, a remote current program input, a shutdown pin and a +5V reference.
Specifications
| Input Voltage | 110V / 220V |
| Output Voltage | 0V to 1kV |
| Max. Output Current | 50mA |
| Output Type | Constant Voltage |
| Package Type | 1U |
| Input Type | AC |
| Dimension | 482.5×350×44 |
| Weight | 13 lbs |
|---|---|
| Input Voltage | AC Input |
| Polarity | Positive |
| Package Type | 1U |
