ACCHV24V6KV1MAW 0 to 6kV 1mA HV Power Supply (24V Input)
$169.00
Capacitor Charging High Voltage Power Supply
Input Voltage: 24V ± 1V
Output Voltage: 0V ~ 6kV
Max. Output Current: 1mA
Discount per Quantity
| Quantity | Price |
|---|---|
| 1 - 9 | $169.00 |
| 10 - 49 | $159.00 |
| 50 - 99 | $149.00 |
| 100 + | $139.00 |
Product Overview
The ACCHV24V6KV1MAW is a capacitor charging high voltage power supply designed for 24v input capacitor charging hv power supplies. It converts 24V ± 1V input into a high voltage output up to 0 to 6kV, with a maximum output current of 1mA.
The module is optimized for capacitor charging applications, providing controlled high voltage output suitable for pulse power systems, energy storage charging, and related high voltage subsystems. It is suitable for applications such as capacitor charging circuits, pulse power systems, discharge circuits, and energy storage applications.

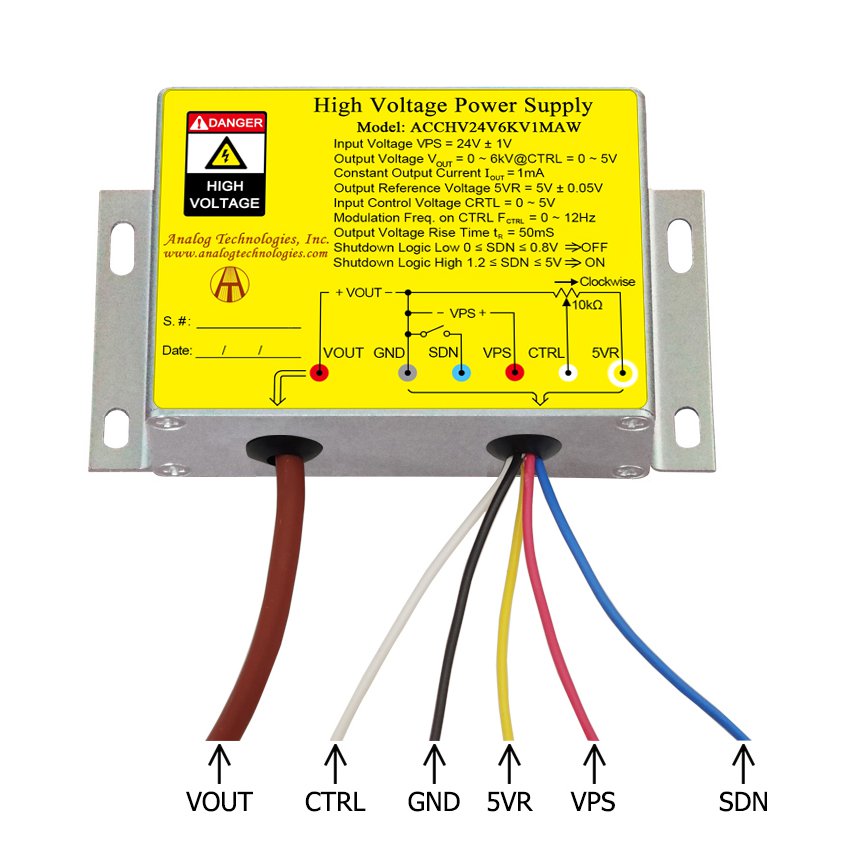

The output voltage is continuously adjustable from 0V up to the rated maximum via the CTRL pin, using either a potentiometer or an external 0V to 5V analog signal. The output is linearly proportional to the control voltage.
Specifications
| Input Voltage | 24V ± 1V |
| Output Voltage | 0V to 6kV |
| Max. Output Current | 1mA |
| Output Type | Constant Curent/Constant Voltage(CCCV) |

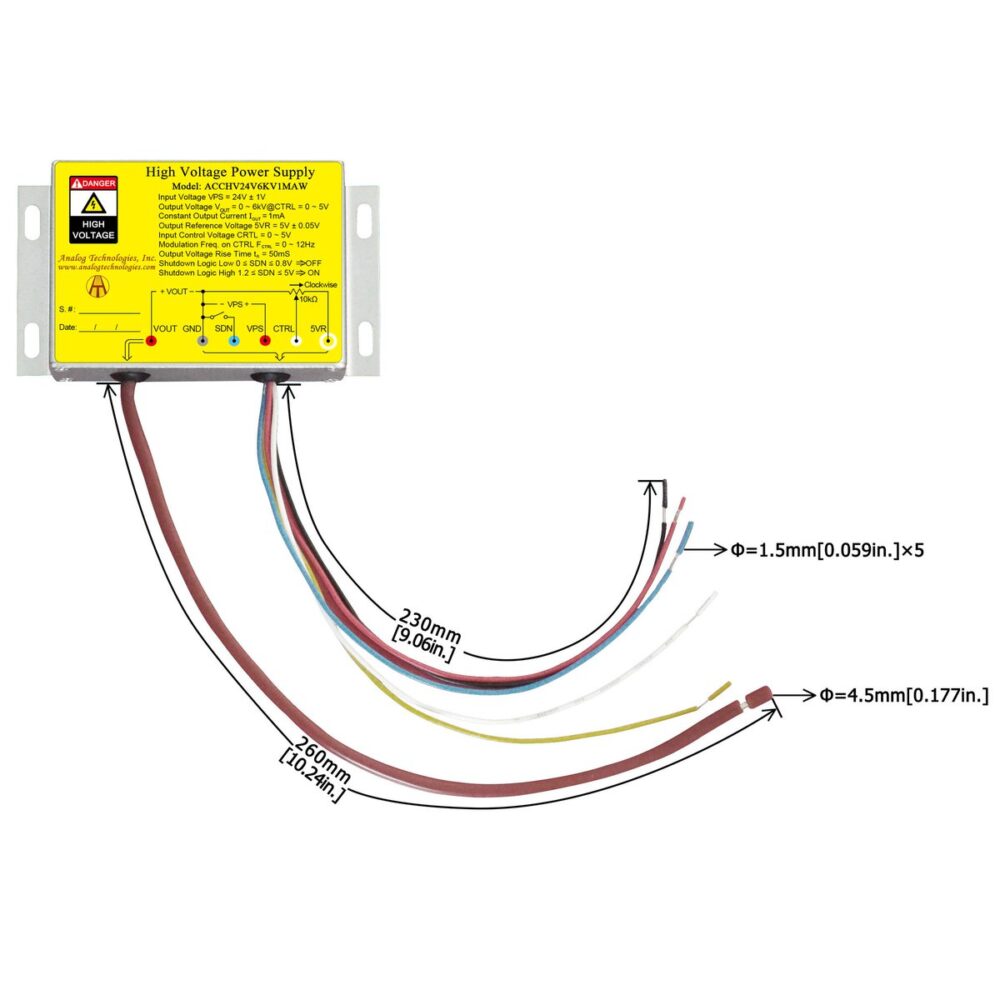

| Package Type | Lead Wire |
| Input Type | DC |

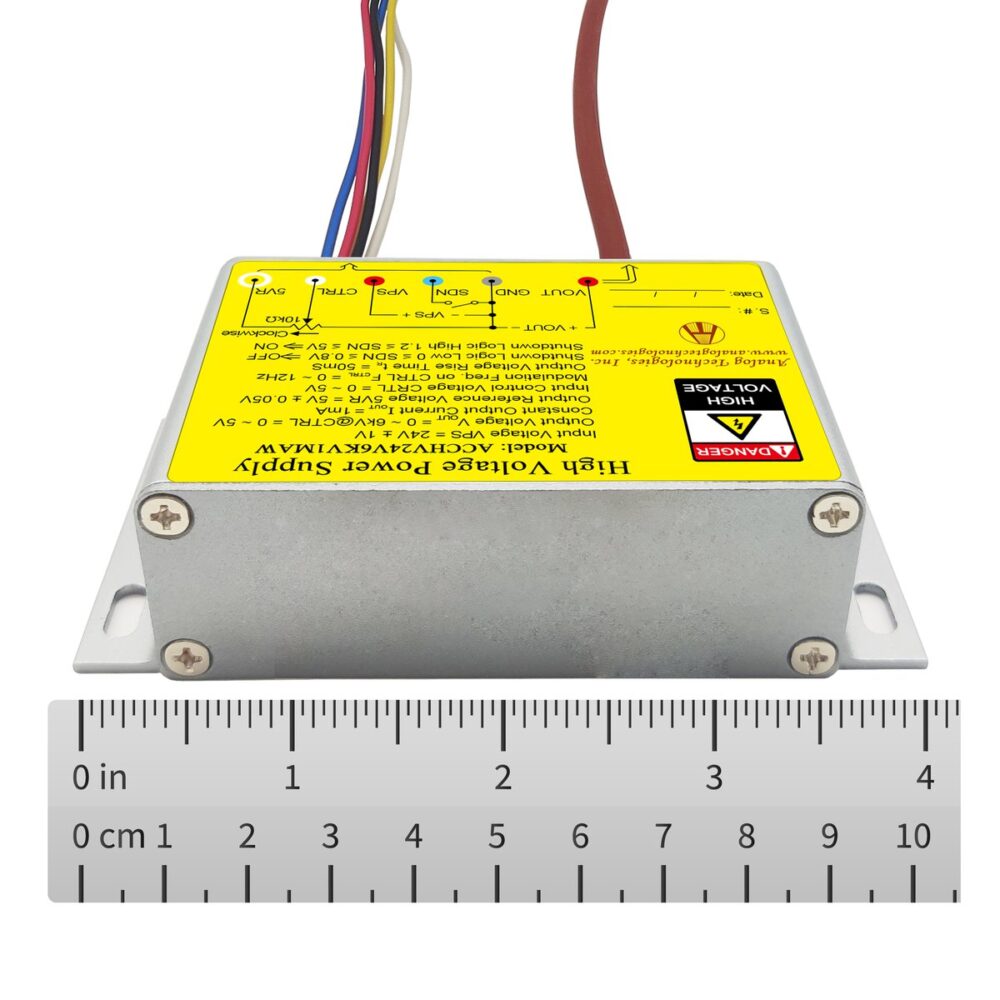

| Dimension | 85×55×28 |
| Weight | 1 lbs |
|---|---|
| Input Voltage | 24V |
| Polarity | Positive |
| Package Type | Lead Wire |
