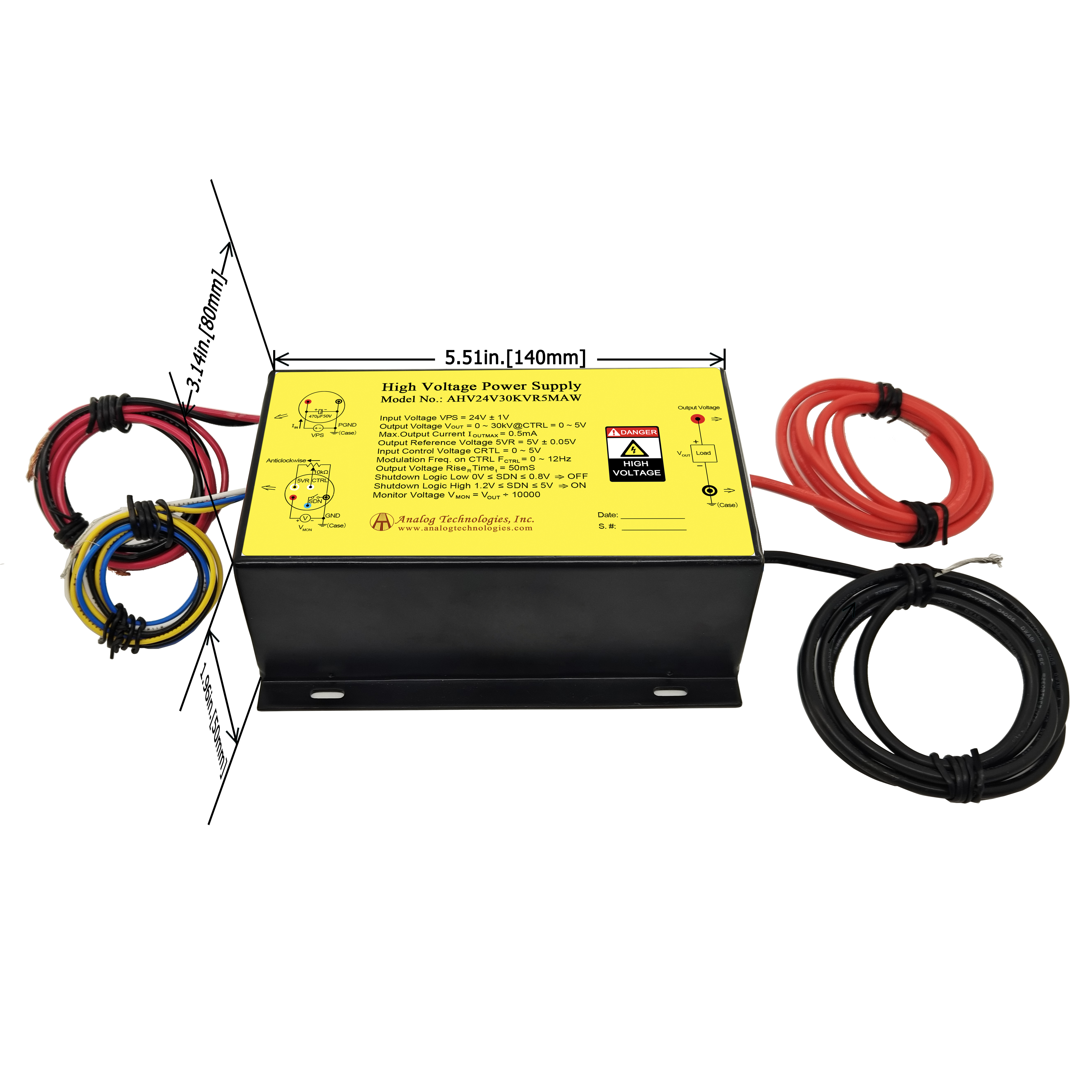

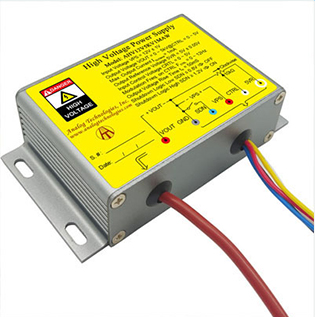

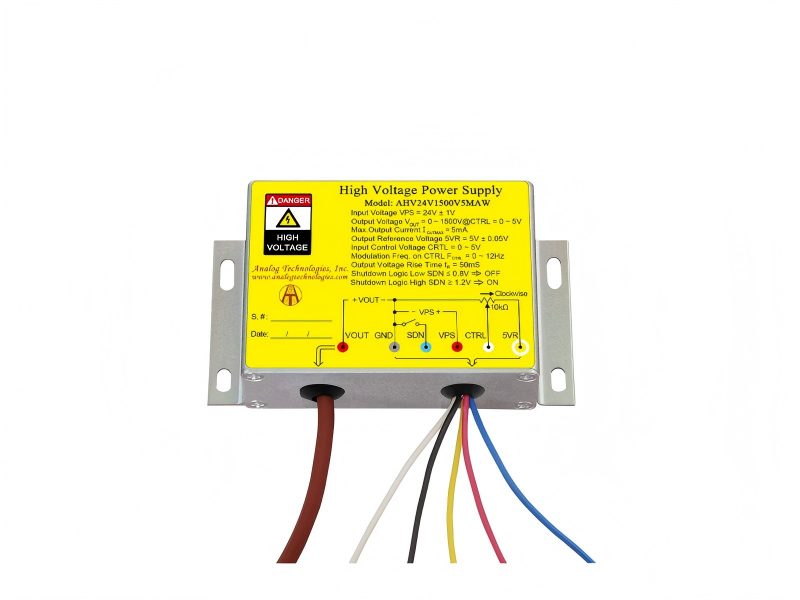

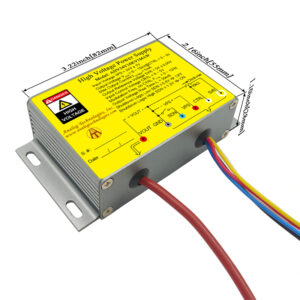

Draw a clear distinction between input lead and output lead: input 24V (red lead), ground electrodes (black lead), regulation wire (white lead), reference voltage 5V (yellow lead), shutdown (blue lead), and output high-tension cable (thick brown lead).While regulating the potentiometer, connect the intermediate tap of the potentiometer with white l…

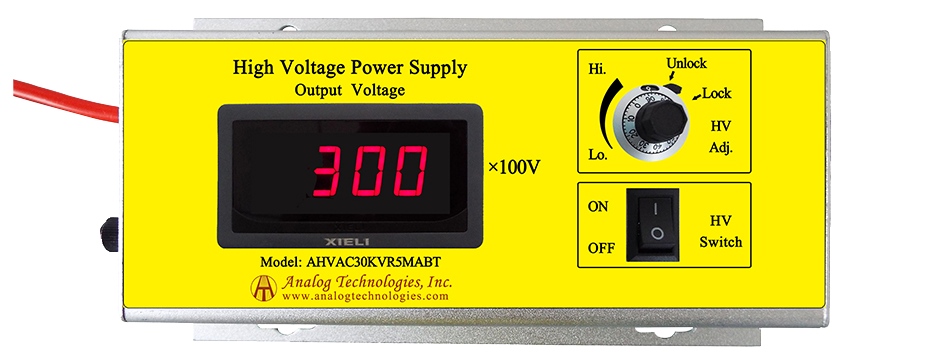

Input Power Voltage: 24V ±1VInput Current Range: 200mA to 900mAOutput Voltage: 0 to 30kV@CTRL = 0 to 5VMonitor Voltage: 0 to 3VMax. Output Current: 0.5mA

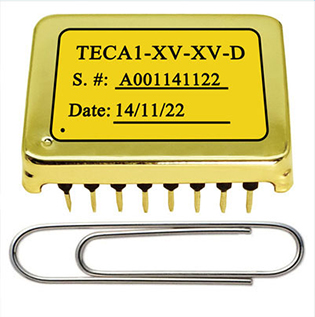

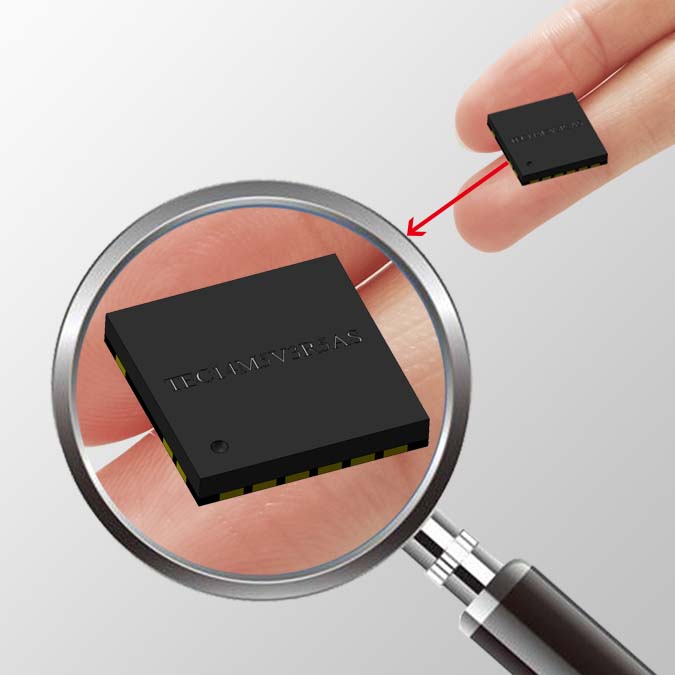

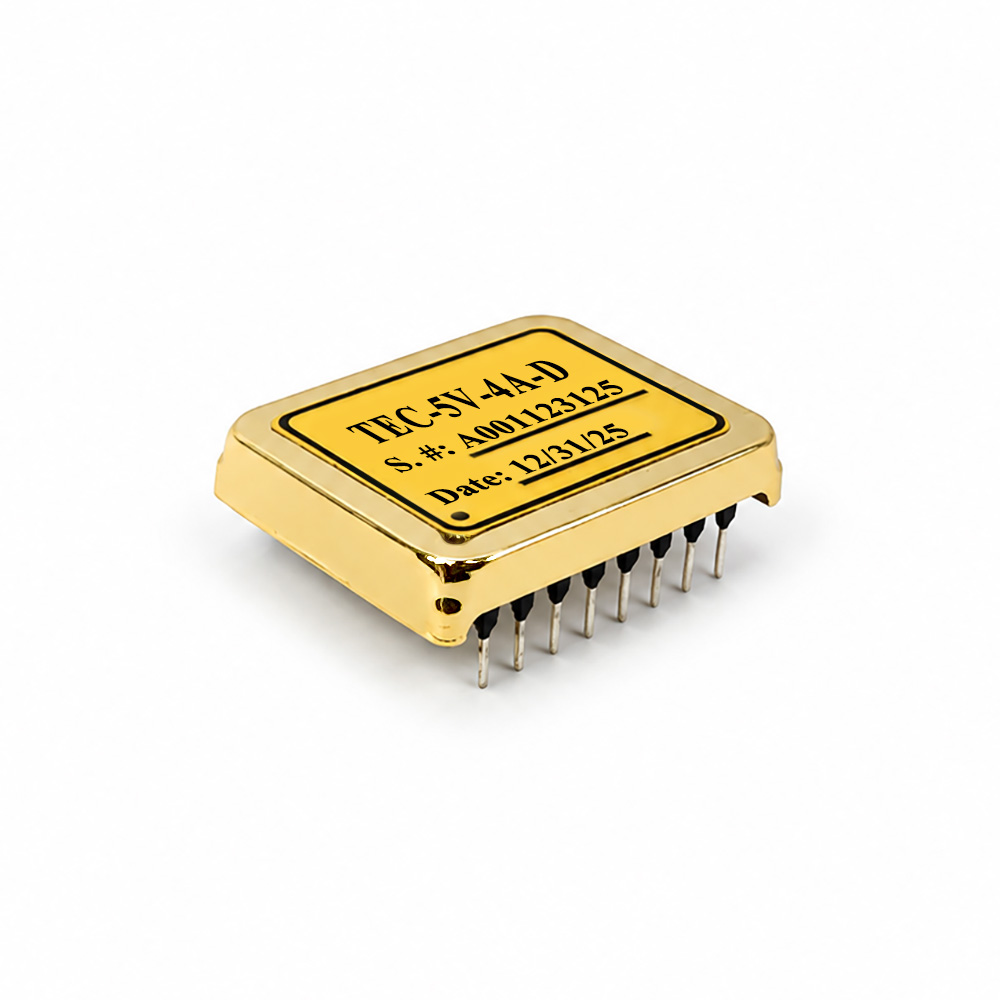

The TEC14M5V3R5AS is an ultra compact, low profile, and fully molded TEC controller designed for driving TECs (Thermo-Electric Coolers) with high electrical andmechanical reliability that can achieve high temperature stability for regulating the object temperature.
High Reliability: fully moldedBottom Thermal Pad: allows high power heat sinkingMaximum Output Current: 3.5AMaximum Output Voltage: ±VVPSHigh Temperature Stability: 0.001°C

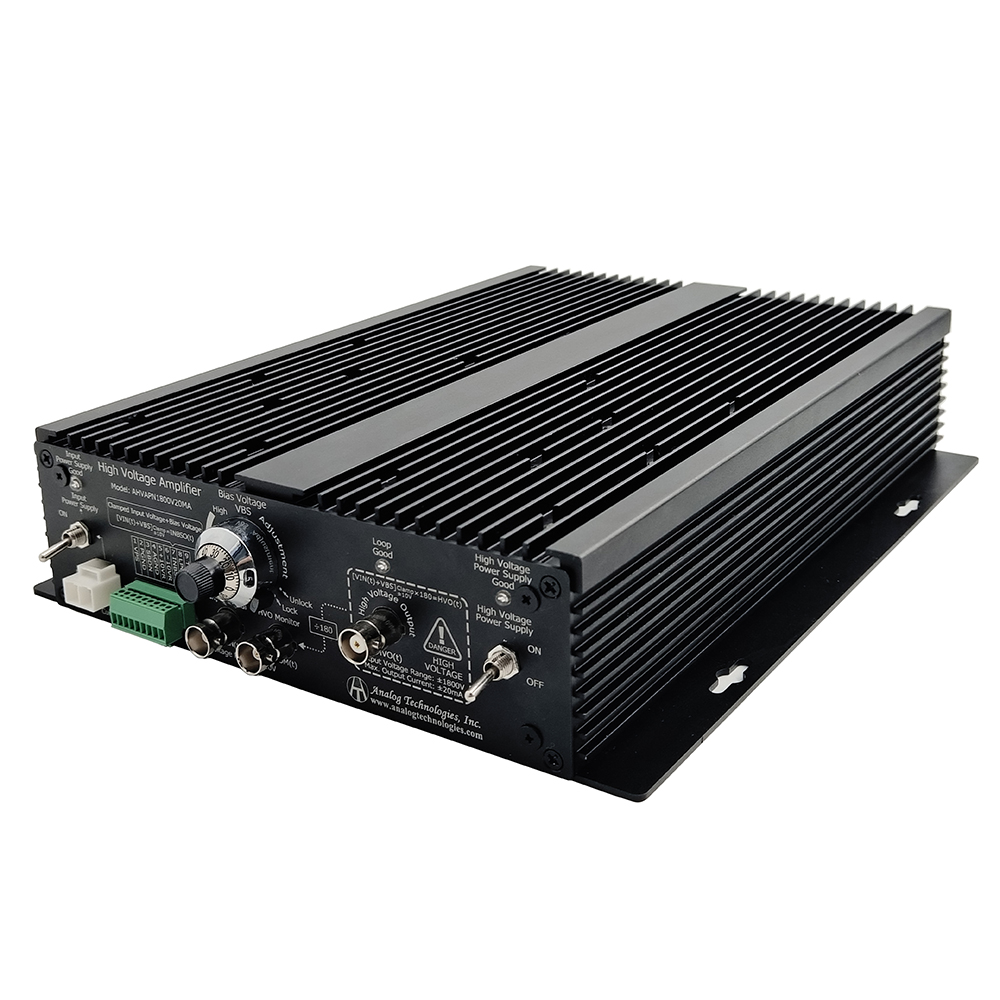

The AHVAPN1800V20MA is an electronic module for amplifying an analog input voltage into a high voltage output. It comes with a high voltage DC-DC converter, which converts the 24V input voltage into two output voltages: −1800V and +1800V. The analog input voltage, VIN(t), can be from −10V to +10V, the corresponding output voltage,
Built-in High Voltage Power Supply Bi-directional Output: ±1800VHigh Current Capability: Up to 20mAHigh Slew Rate: 2000V/µs@open loadInput Signal Voltage Range: ±10V

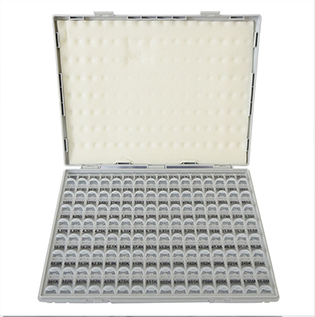

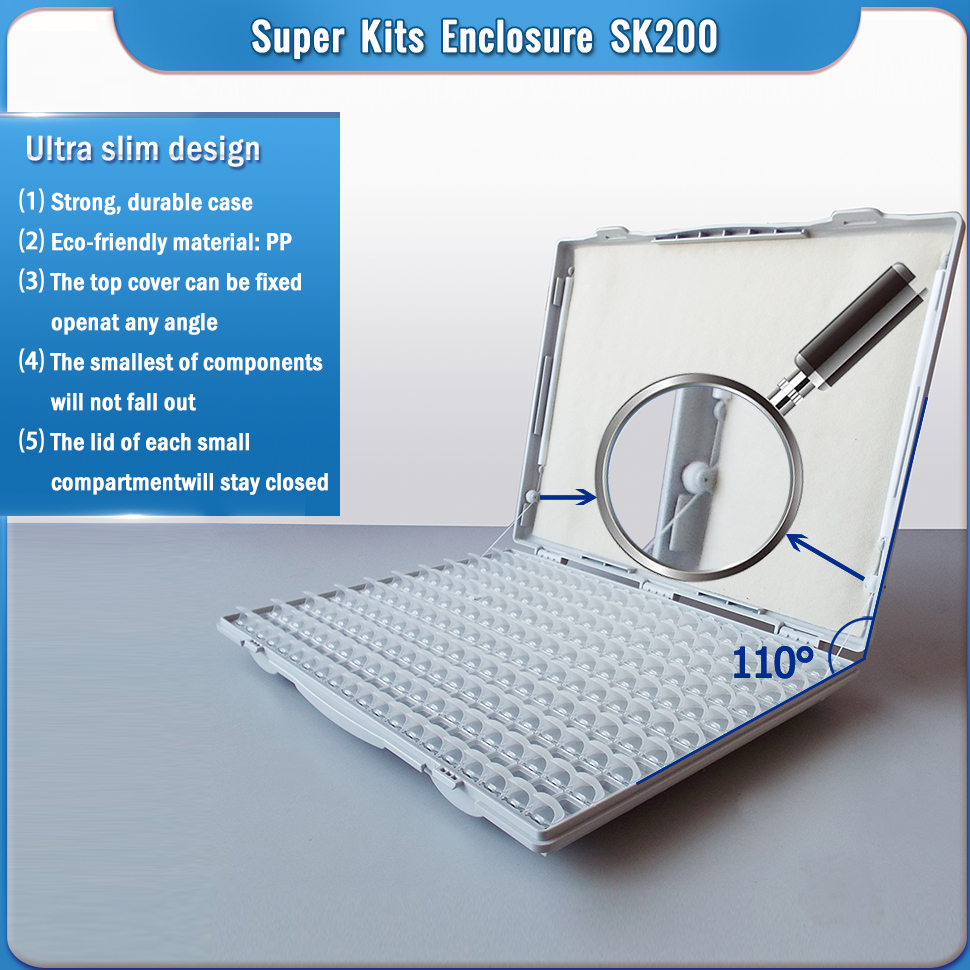

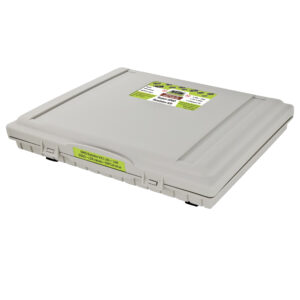

The Super Kits Enclosure SK200 is a newly developed product offered by ATI, which has 200 individual compartments for enclosing SMT components, such as chip resistors, capacitors, inductors, diodes, triodes, LEDs, ICs, etc.The Super Kits Enclosure measures only 12.2"(L) × 9.5"(W) × 1.6"(H) or 309mm(L) × 242mm(W) × 40mm(H). These enclosures can be e…
Ultra slim design Strong, durable case Eco-friendly material: PPThe top cover can be fixed open at any angle The smallest of components will not fall out

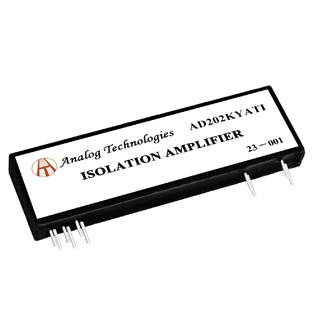

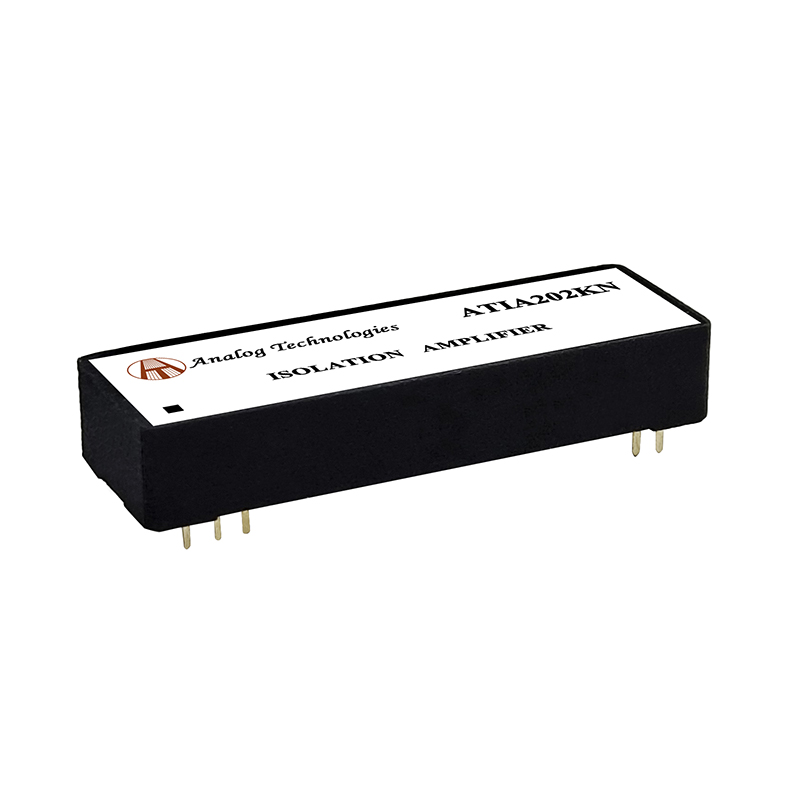

The ATIA202KN is a high voltage isolation amplifier designed for multiple applications where input signals are measured, processed, or transmitted without a galvanic connection. These isolation amplifiers in DIP package offer a signal and power isolation function. With internal transformer-coupling, the ATIA202KN provides total galvanic isolation b…
Isolated Power Outputs Small Size: 4 Channels/lnch LowUncommitted Input Amplifier High CMR: 130dB (Gain = 100V/V)High Accuracy: ±0.2% Max Nonlinearity

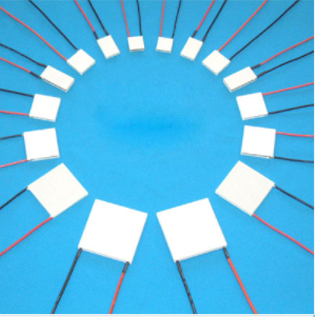

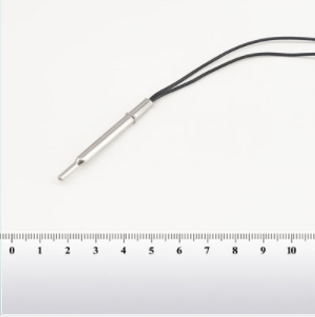

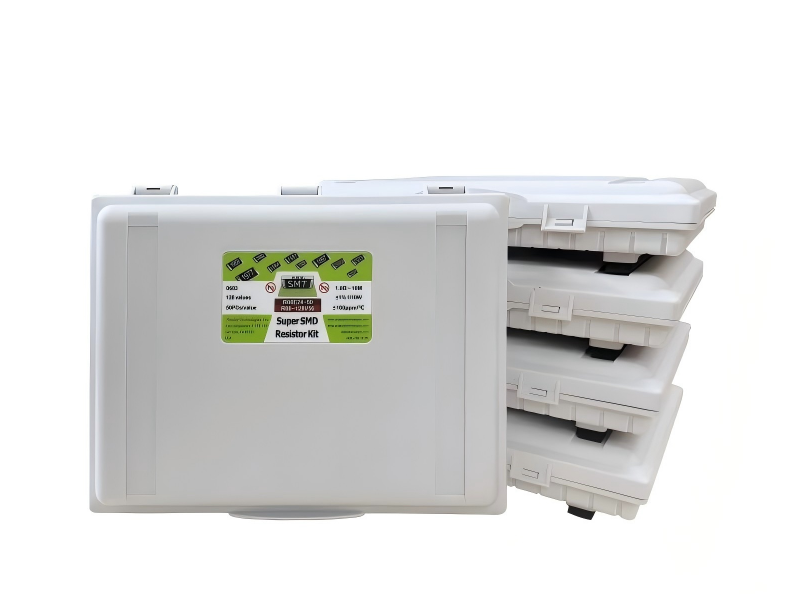

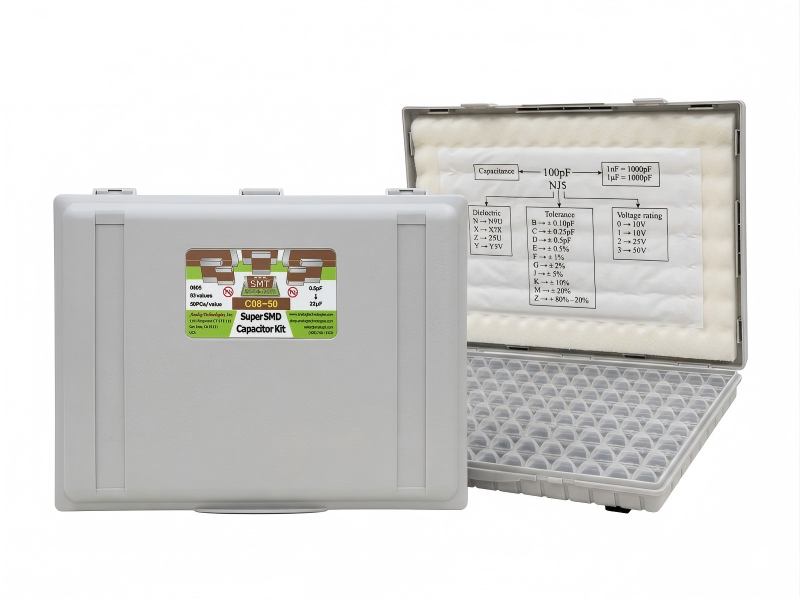

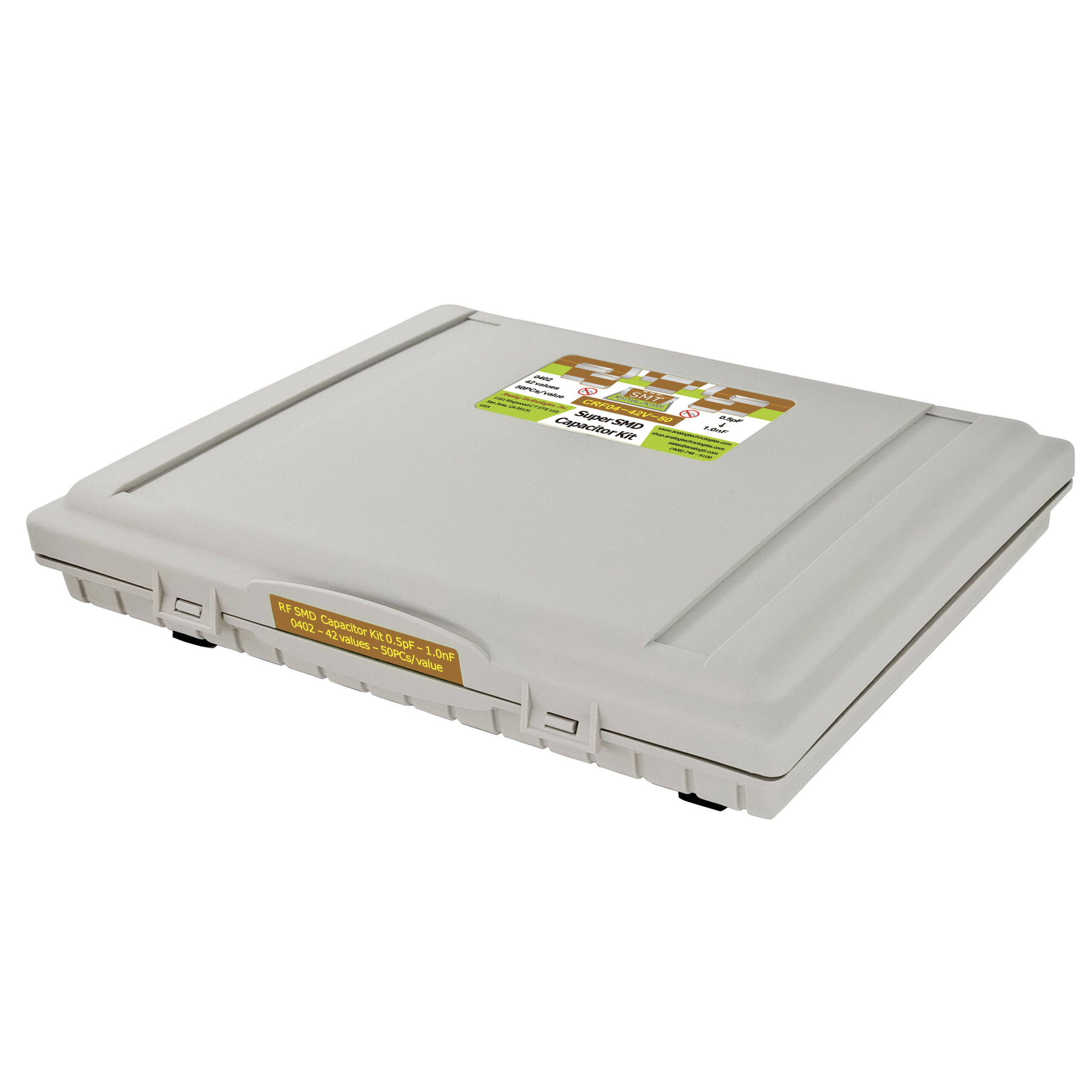

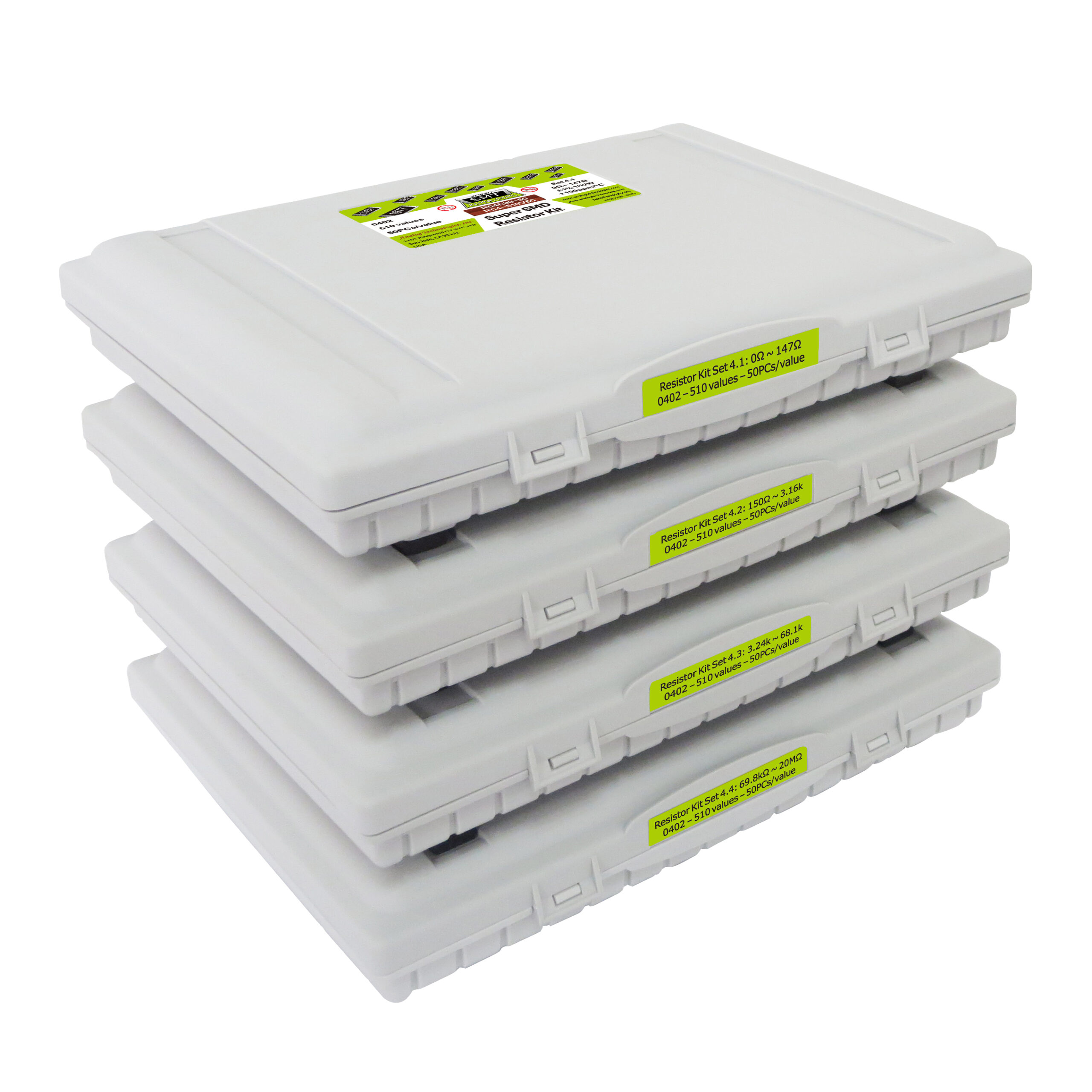

Founded in 1997, Analog Technologies, Inc. (ATI), specializes in the R&D and production of analog and digital electronic hardware modules, sub-systems, and systems. Our main product lines include: laser drivers, TEC (Thermo-Electric Cooler) controllers, TECs (Thermo-Electric Coolers), high precision and high stability thermistors, customized heat sinks, SMT (SMD) resistor kits, SMT (SMD) capacitor kits, SMT (SMD) inductor kits, LED drivers, LED lights, etc.
