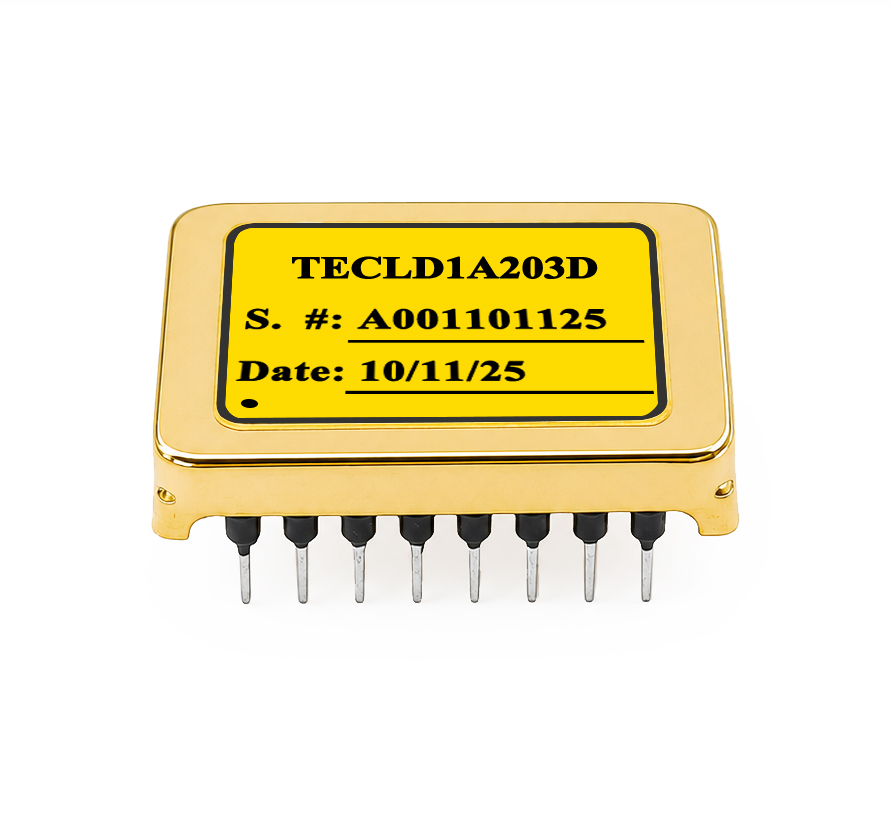

TECLD1A203D TEC Laser Controller Combo, 1A Laser, ±3.5A TEC
Coming Soon
TEC Controller and Laser Driver in One Module
Max. Laser Current: 1A (with heat sink)
Laser Noise: 1.6µAP-P
Max. TEC Current: ±3.5A
Temperature Stability: ±0.001°C
Product Overview
The TECLD1A203D combines a high efficiency TEC controller and a low noise laser driver in one compact, fully shielded module. It drives laser diodes up to 1A with a heat sink and TEC modules up to ±3.5A, with ±0.001°C temperature stability.
All analog parameters are set and read back through a 2-pin digital port. One parameter can be set through the analog input (AI) pin, and one signal can be monitored through the analog output (AO) pin. The TEC controller has an auto PID compensation network, and the laser driver has a programmable current limit. This product is in development; specifications may change.
Specifications
| Max. Laser Current | 1A (with heat sink) |
| Input Voltage (VVPS) | 5V |
| Laser Output Voltage | VVPS − 1V (max.) |
| Laser Noise | 1.6µAP-P @0.1Hz~10Hz |
| Laser Absolute Accuracy | <0.1% |
| Laser Stability | <±100ppm/°C |
| Full Power Bandwidth | 1MHz (max.) |
| Laser Current Limit | Programmable |
| Laser Drive Type | Linear |
| Max. TEC Current | ±3.5A |
| TEC Voltage Range | −VVPS ~ VVPS − 0.3V |
| TEC Efficiency | ≥90% |
| Temperature Stability | ±0.001°C |
| TEC Compensation | Auto PID |
| Interface | 2-pin digital port, 1 analog input (AI), 1 analog output (AO) |
| Shielding | Complete |
| RoHS | 100% lead (Pb)-free, RoHS compliant |
| Weight | 0.3 lbs |
|---|
