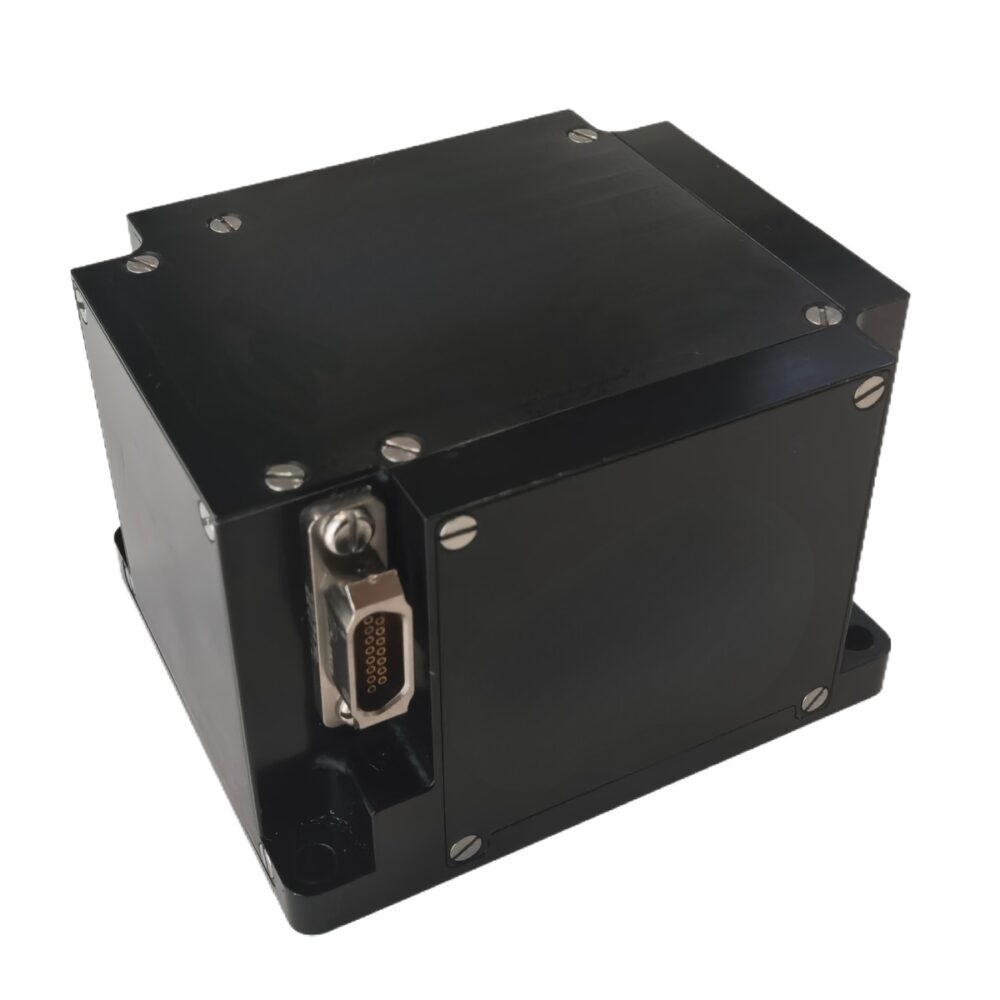

FG-1321-R07 3-axis Fiber Optic Gyro RS422 (77×65×51mm)

The FG-1321-R07 is a medium-precision, three-axis fiber optic gyroscope. It combines all-digital closed-loop control with micro-signal correlation detection. Miniaturized optical components reduce the volume while retaining the linearity and temperature adaptability that fiber optic gyros are chosen for.

The unit runs from +5 VDC and uses an industry-standard RS422 digital output that can be customized. Construction is rugged: it withstands 100 g shock over 6 ms and 18 g vibration, and operates from -45 to +70°C. The housing measures 77×65×51mm. The design is ITAR-free, which removes export and import licensing steps for international projects.

Typical uses include airborne navigation, unmanned aircraft, ships and vehicles, positioning and orientation systems, ship and aviation attitude systems, infrared pod servo guidance, and orbital detection and attitude control.
