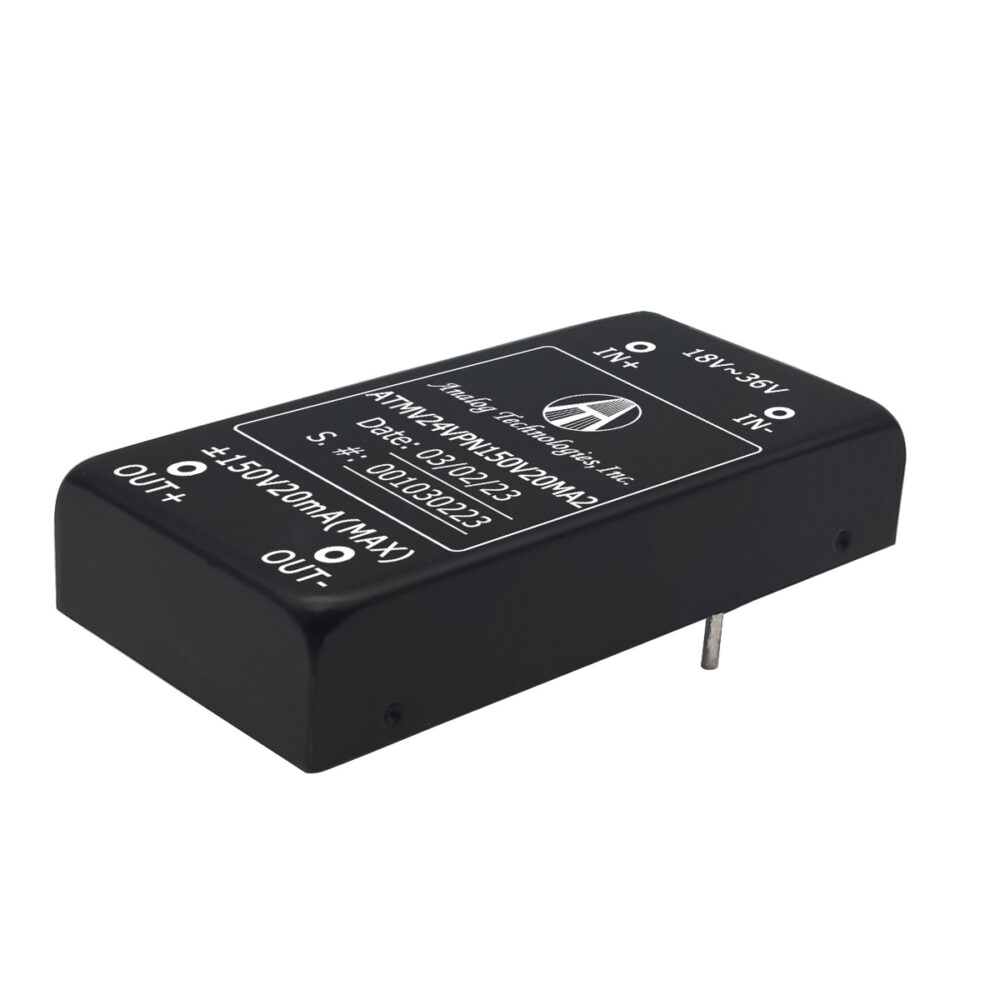

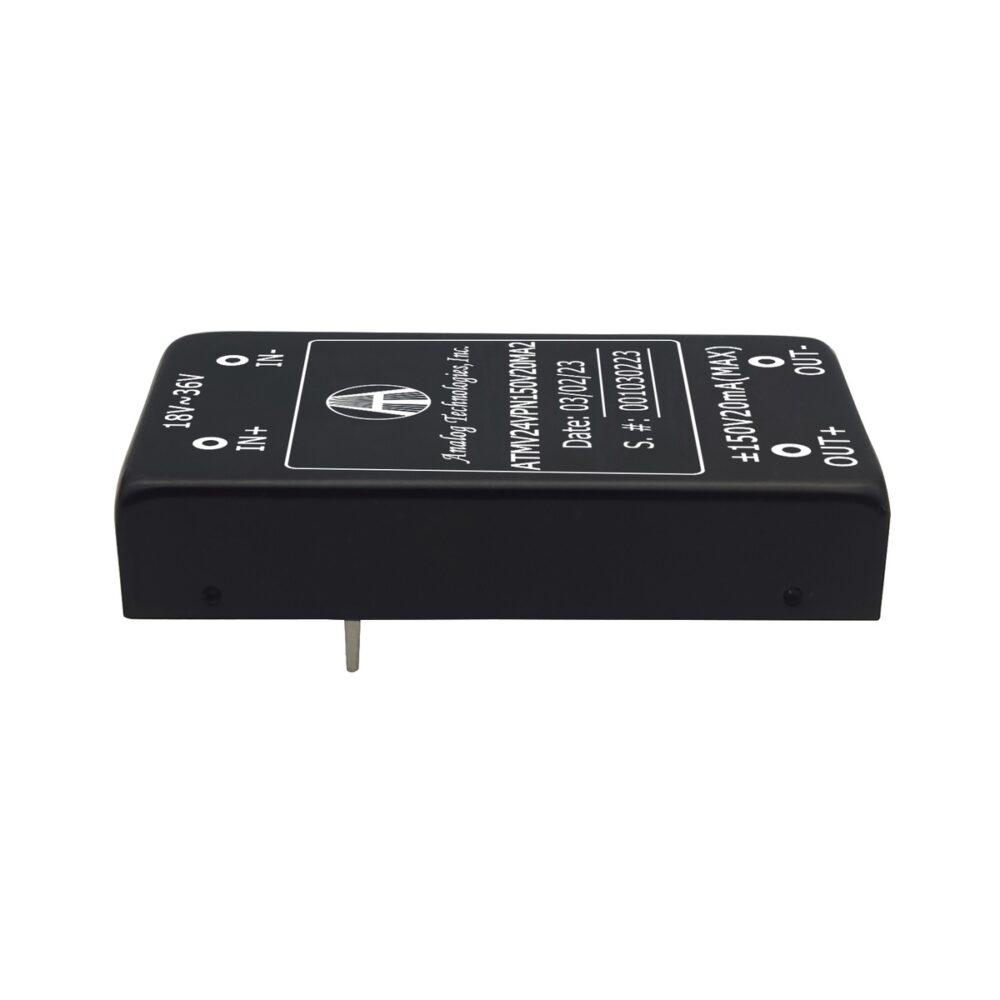

The ATMV24VPN150V20MA2 is an isolated DC-DC converter designed for 24V input isolated power applications. It converts 18V to 36V input into a bipolar output of ±150V, with a maximum output current of ±20mA and a 1500VDC input-to-output isolation barrier.
The module provides efficient isolated DC-DC conversion in a compact package, with reliable regulation, galvanic isolation, and easy integration into low-voltage powered systems. It is suitable for powering the isolated side of measurement and signal-conditioning circuits, sensor and instrumentation supplies, and industrial control systems.
Specifications
Input Voltage
18V to 36V
Output Voltage
±150V
Max. Output Current
±20mA
Output Type
Dual
Rated Power
6W
Efficiency
75%
Isolation
1500VDC
Input Type
DC

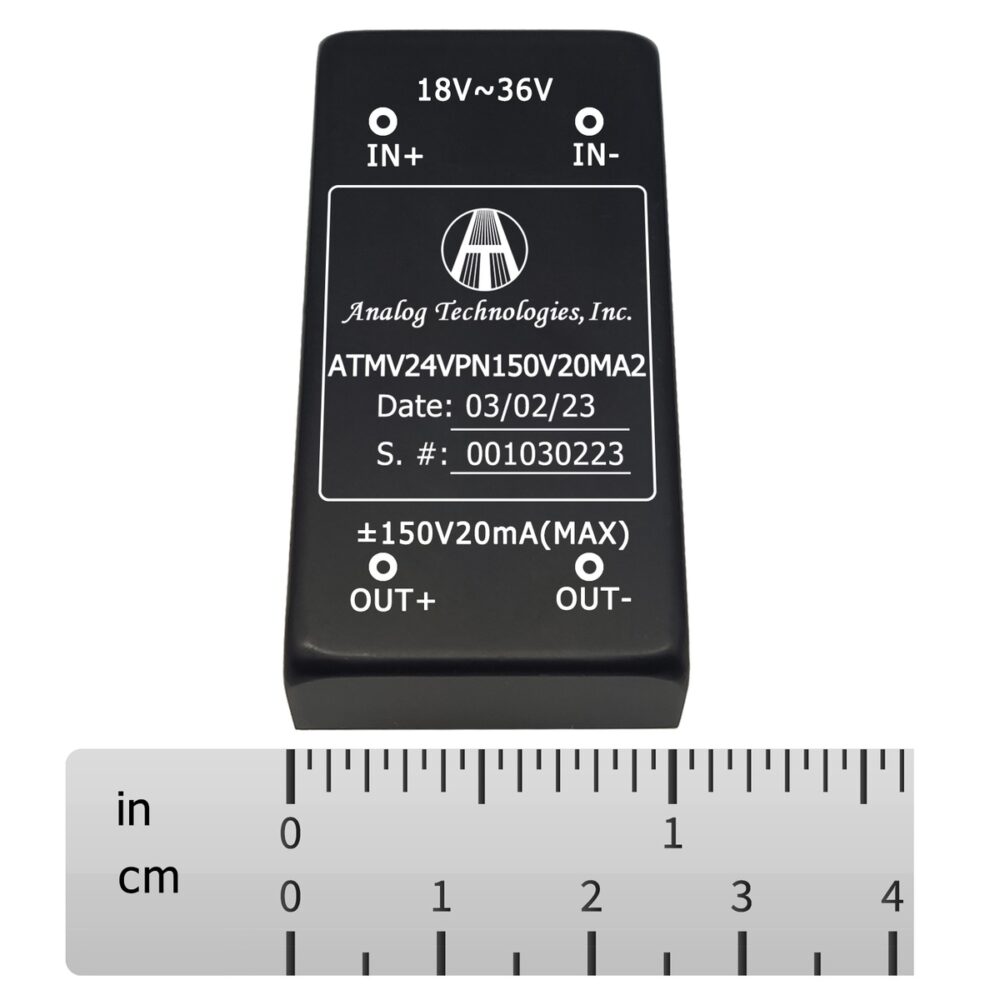

Dimension
50.8×25.4×10.5
Weight
0.3 lbs
Polarity
Bipolar
Efficiency
75%
Power
6W
