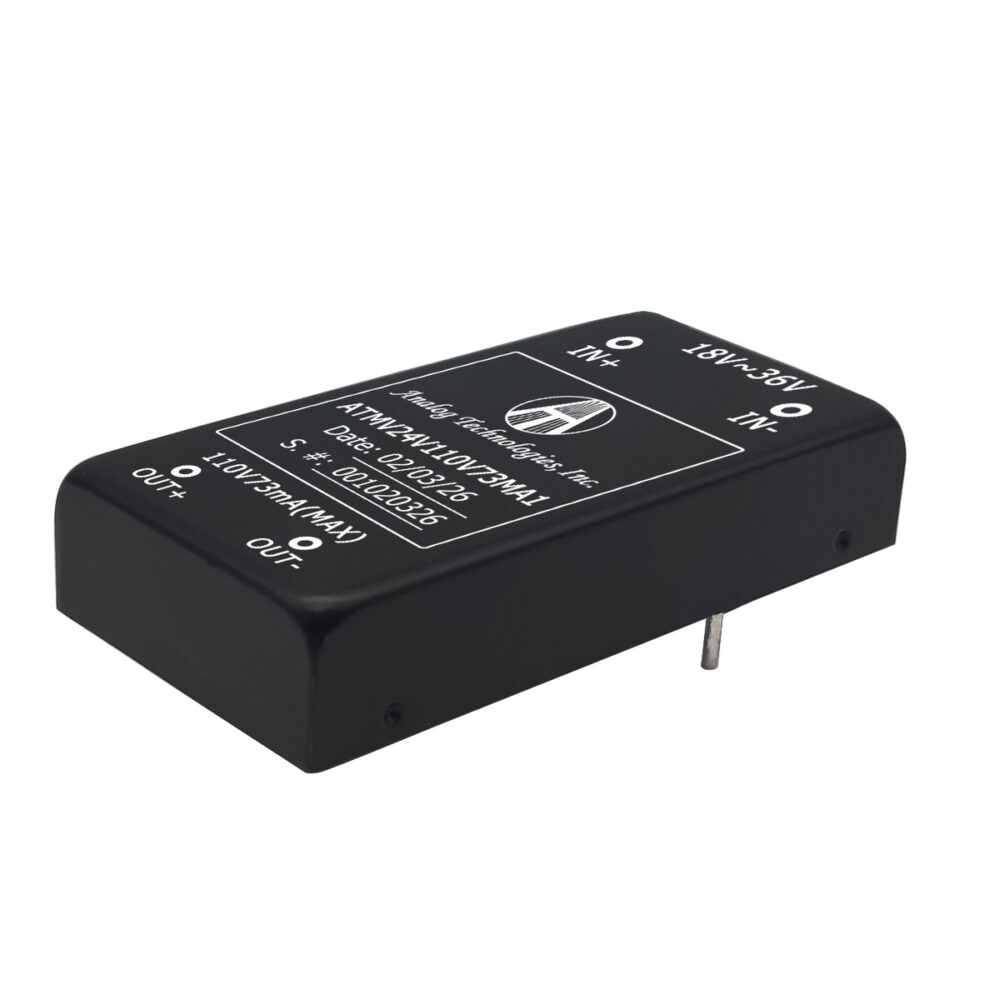

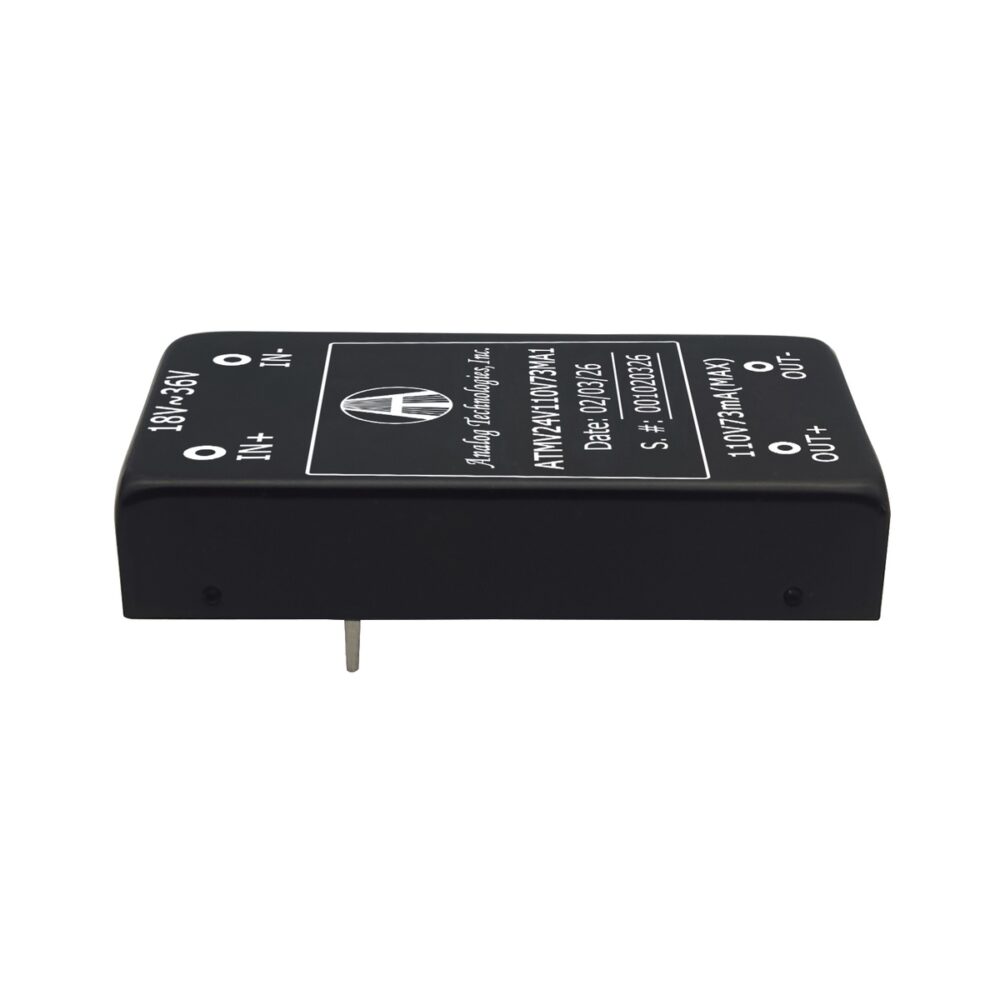

The ATMV24V110V73MA1 is an isolated DC-DC converter designed for 24V input isolated power applications. It converts 18V to 36V input into a single output of 110V, with a maximum output current of 73mA and a 1500VDC input-to-output isolation barrier.
The module provides efficient isolated DC-DC conversion in a compact package, with reliable regulation, galvanic isolation, and easy integration into low-voltage powered systems. It is suitable for powering the isolated side of measurement and signal-conditioning circuits, sensor and instrumentation supplies, and industrial control systems.
Specifications
Input Voltage
18V to 36V
Output Voltage
110V
Max. Output Current
73mA
Output Type
Single
Rated Power
8W
Efficiency
78%
Isolation
1500VDC
Input Type
DC
Dimension
50.8×25.4×10.5
Weight
0.3 lbs
Polarity
Positive
Efficiency
78%
Power
8W
