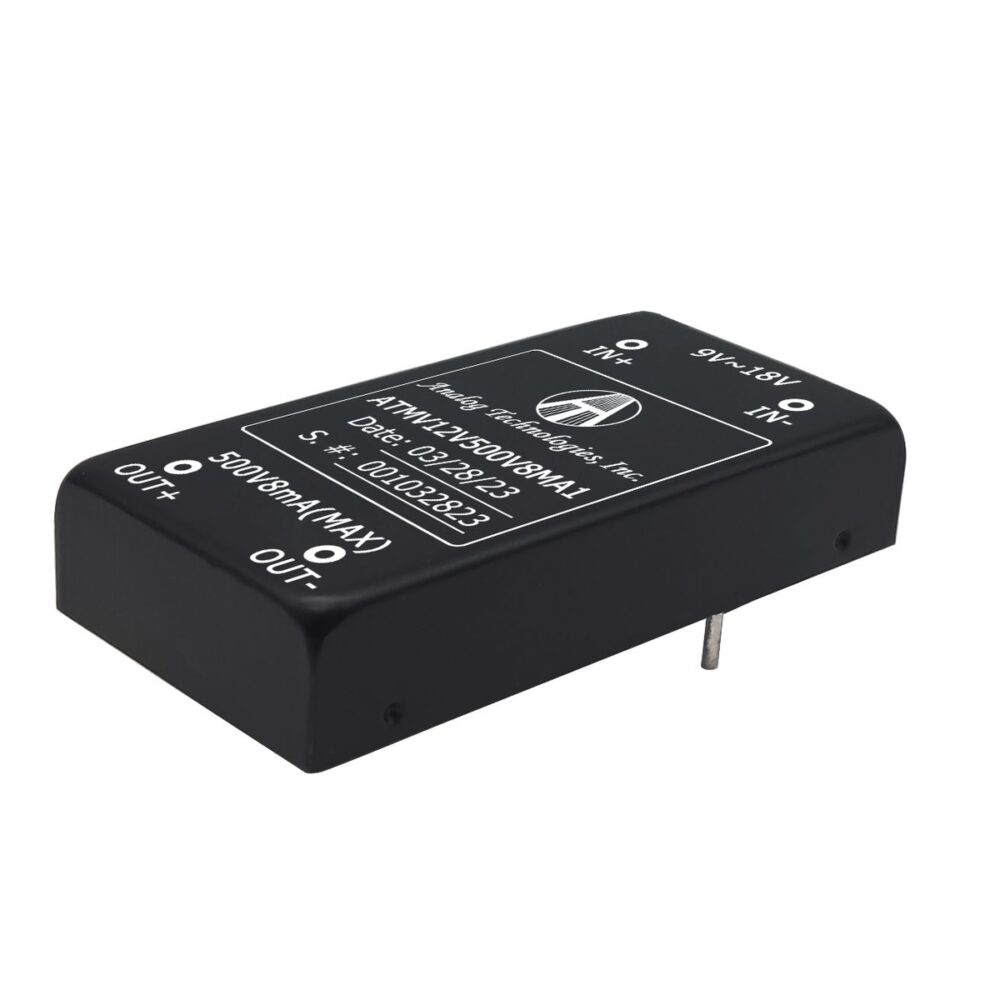

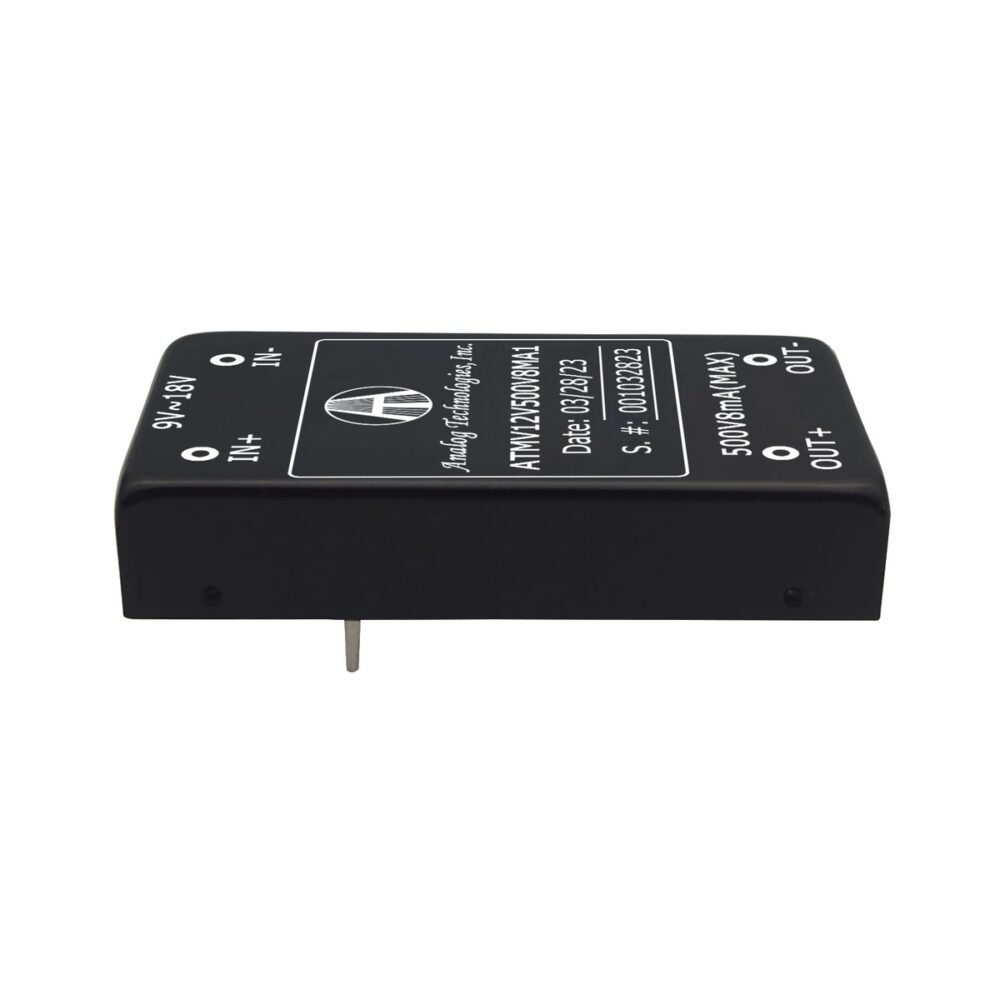

The ATMV12V500V8MA1 is an isolated DC-DC converter designed for 12V input isolated power applications. It converts 10V to 18V input into a single output of 500V, with a maximum output current of 8mA and a 1500VDC input-to-output isolation barrier.
The module provides efficient isolated DC-DC conversion in a compact package, with reliable regulation, galvanic isolation, and easy integration into low-voltage powered systems. It is suitable for powering the isolated side of measurement and signal-conditioning circuits, sensor and instrumentation supplies, and industrial control systems.
Specifications
Input Voltage
10V to 18V
Output Voltage
500V
Max. Output Current
8mA
Output Type
Single
Rated Power
4W
Efficiency
78%
Isolation
1500VDC
Input Type
DC
Dimension
50.8×25.4×10.5
Weight
0.3 lbs
Polarity
Positive
Efficiency
78%
Power
4W
