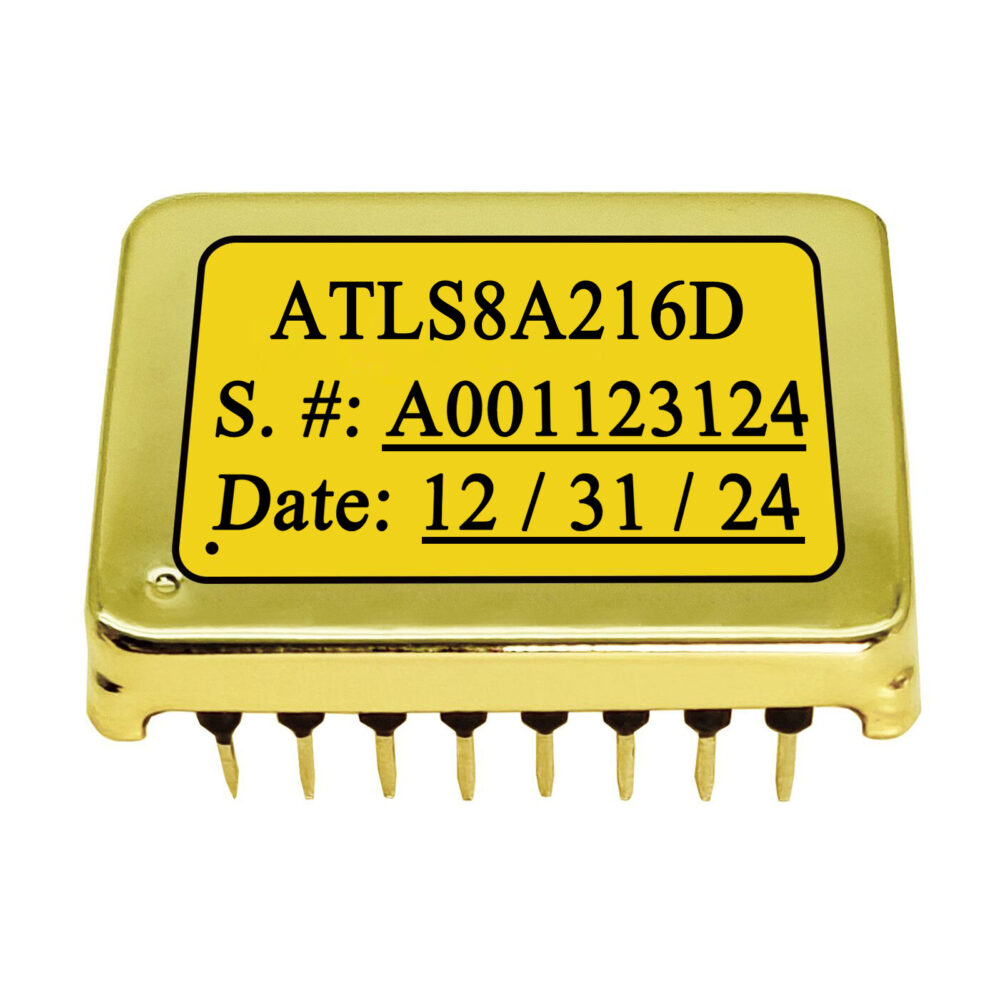

The ATLS8A216D is a constant current laser diode driver designed for driving up to 8A laser diodes. It operates from a 5.5V ~ 15V power supply and delivers stable current output across a 1.1V ~ 12V load voltage range.
The driver is suitable for applications including DPSSL, EDFA, Fiber Lasers.
Specifications
Input Voltage (VVPS)
5.5V ~ 15V
Output Voltage
1.1V ~ 12V (0.2VVPS ~ 0.8VVPS)
Max. Output Current
8A
Noise
<12µAP-P
Stability
<±600µA @8A, -20°C ~ 80°C
Modulation BW
DC ~ 20kHz
Efficiency
90% (IOUT=8A, VLDA=10V, VVPS=15V), no heat sink needed
Drive Type
Switch
Package Type
DIP
Input Type
DC Medium
Operating Temperature (°C)
-40 ~ 110
Dimension (mm)
27.4×21×5.7
Weight
0.3 lbs
Laser Input Voltage
DC Medium (6V To 16V)
Laser Max Current
6A To 15A
Laser Drive Type
Switch
Laser Package
DIP
Vin
5.5V ~ 15V
Iout
8A
Vf
1.1V ~ 12V
Noise
<12µAP-P
