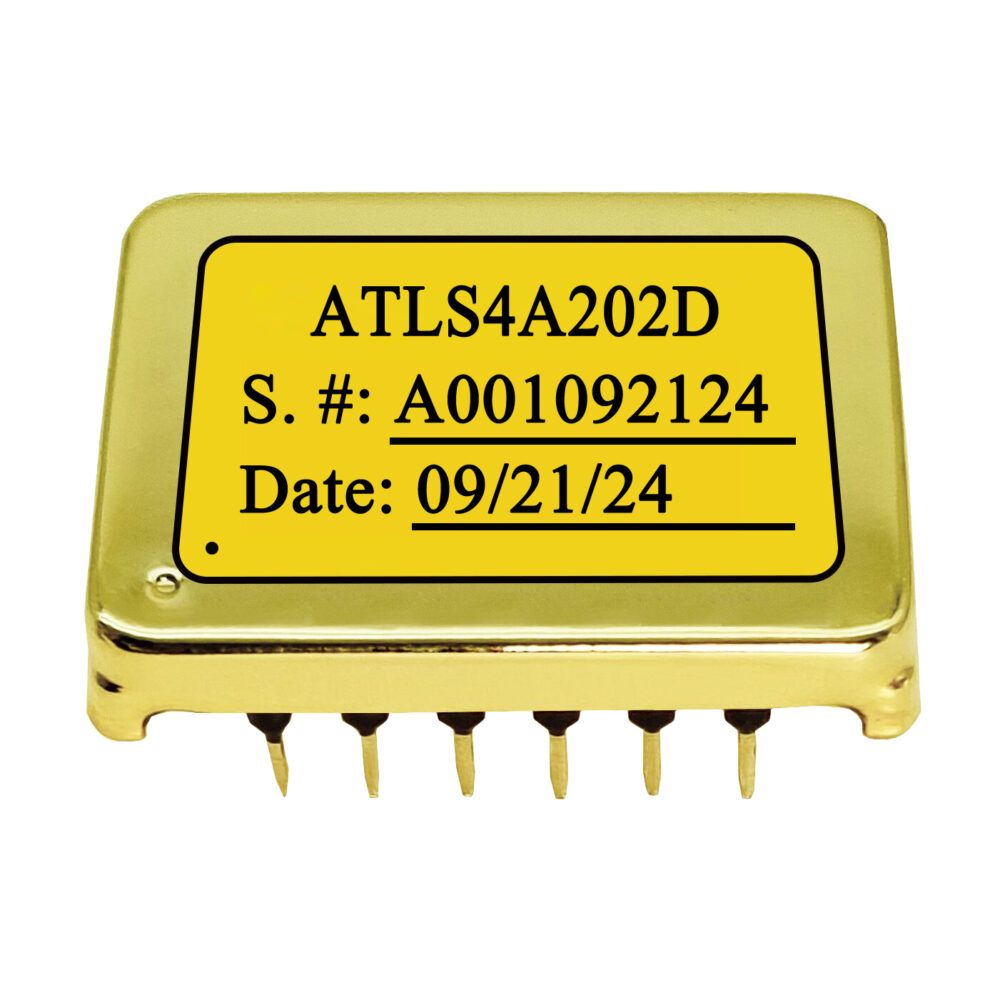

The ATLS4A202D is a constant current laser diode driver designed for driving up to 4A laser diodes with low output noise. It operates from a 3.0V ~ 5.5V power supply and delivers stable current output across a 0V ~ 5.3V load voltage range, with output noise <4.69µAP-P (0.1Hz ~ 10Hz).
The driver is suitable for applications including DPSSL, EDFA, Fiber Laser, Direct Diode Lasers.
Specifications
Input Voltage (VVPS)
3.0V ~ 5.5V
Output Voltage
0V ~ 5.3V (0V ~ VVPS – 0.2V)
Max. Output Current
4A
Noise
<4.69µAP-P
Stability
100ppm/°C
Efficiency
90% (IOUT=4A, VOUT=2.5V, VVPS=5V), no heat sink needed
Drive Type
Switch
Package Type
DIP
Input Type
DC Low
Operating Temperature (°C)
-40 ~ 125
Dimension (mm)
25×20×5
Weight
0.3 lbs
Laser Input Voltage
DC Low (Up To 6V)
Laser Max Current
2A To 6A
Laser Drive Type
Switch
Laser Package
DIP
