$69.00

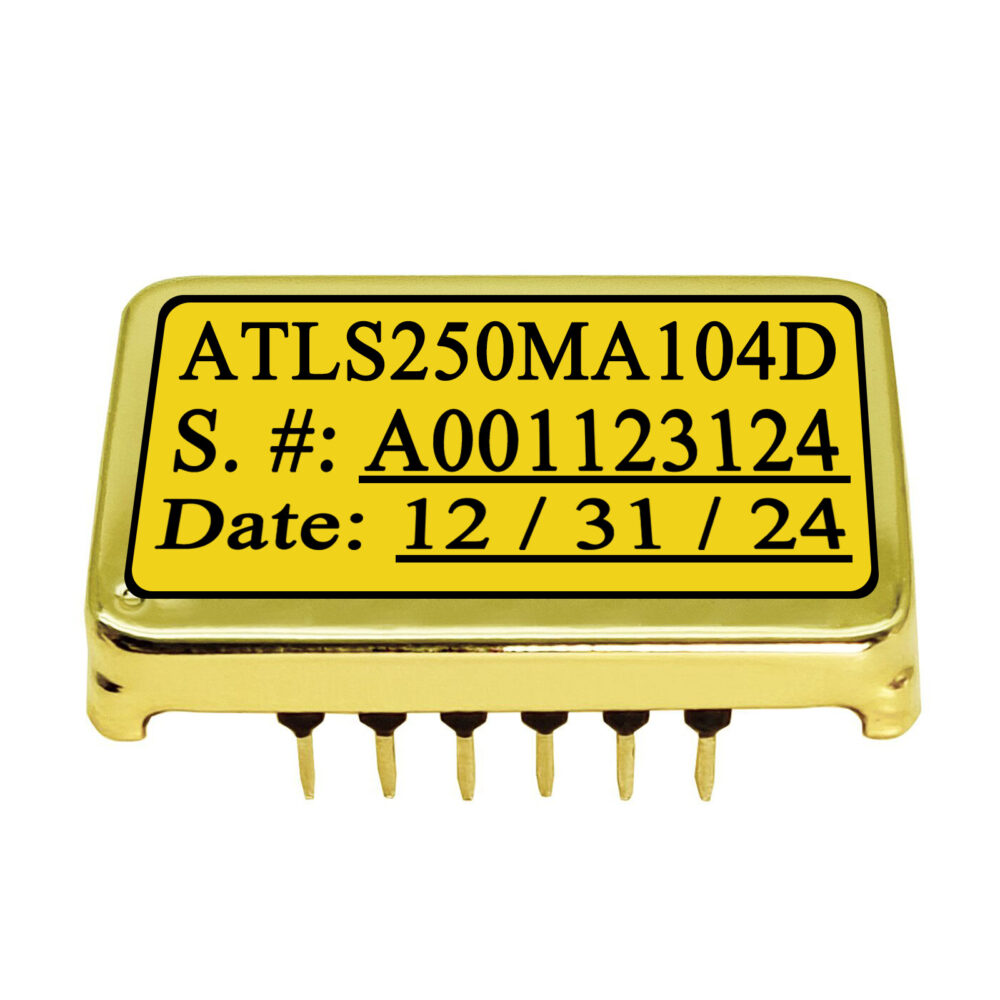

Constant Current Laser Diode Driver
Input Voltage (VVPS): 3.1V ~ 5.5V
Output Voltage: 1.5V ~ 4V (1.5V ~ VVPS – 1.5V)
Max. Output Current: 250mA
Noise: <3.6µAP-P
4 in stock
Product Overview
The ATLS250MA104D is a constant current laser diode driver designed for driving up to 250mA laser diodes with ultra-low output noise. It operates from a 3.1V ~ 5.5V power supply and delivers stable current output across a 1.5V ~ 4V load voltage range, with output noise <3.6µAP-P (0.1Hz ~ 10Hz).
The driver is suitable for applications including DPSSL, EDFA, SOA, Fiber Laser, DSB Diode Lasers.
Specifications
| Input Voltage (VVPS) | 3.1V ~ 5.5V |
| Output Voltage | 1.5V ~ 4V (1.5V ~ VVPS – 1.5V) |
| Max. Output Current | 250mA |
| Noise | <3.6µAP-P |
| Stability | <±0.5mA @ -30°C ~ 60°C |
| Modulation BW | DC ~ 4.67MHz |
| Efficiency | No heat sink needed when PDRIVER < 1W |
| Drive Type | Linear |
| Package Type | DIP |
| Input Type | DC Low |
| Operating Temperature (°C) | -40 ~ 85 |
| Dimension (mm) | 20×14.5×5 |
| Weight | 1 lbs |
|---|---|
| Laser Input Voltage | DC Low (Up To 6V) |
| Laser Max Current | Up To 500mA |
| Laser Drive Type | Linear |
| Laser Package | DIP |
