$99.00

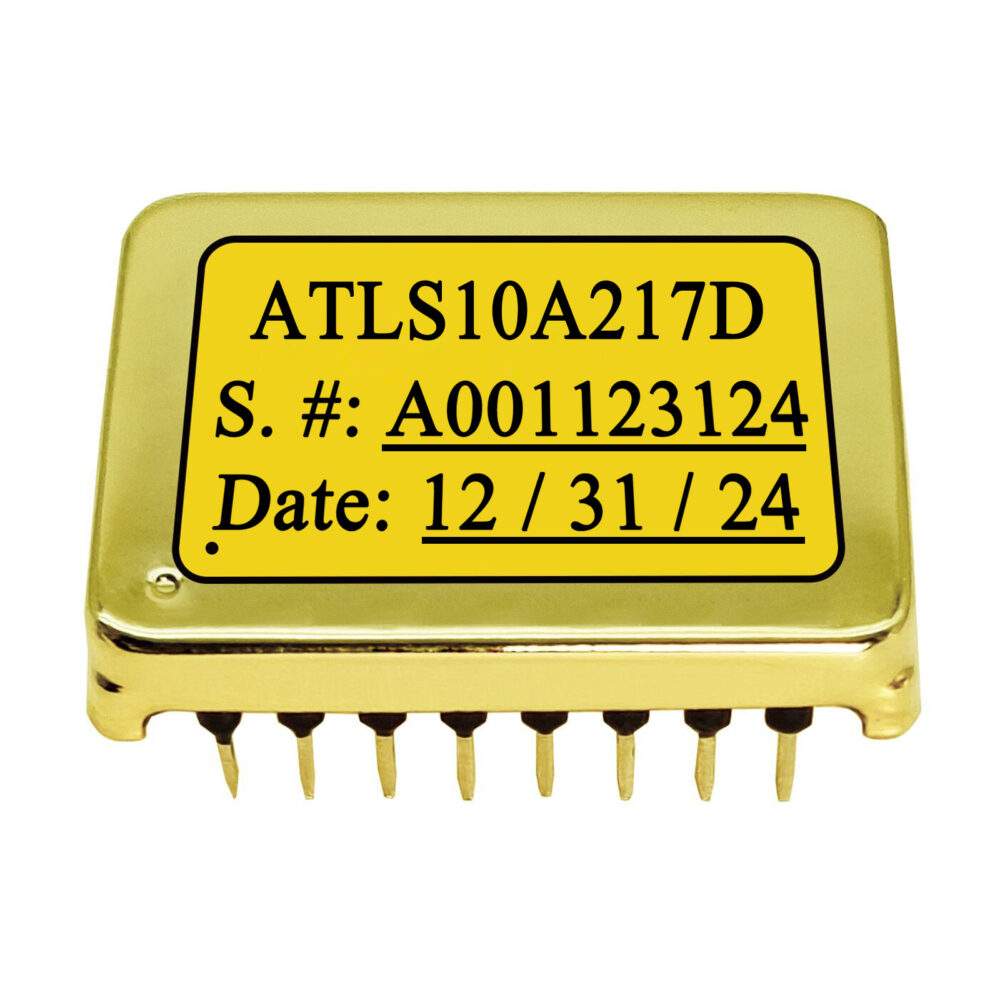

Constant Current Laser Diode Driver
Input Voltage (VVPS): 5.5V ~ 27V
Output Voltage: 1.1V ~ 21.6V (0.2VVPS ~ 0.8VVPS)
Max. Output Current: 10A
Noise: <12µAP-P
3 in stock
Product Overview
The ATLS10A217D is a constant current laser diode driver designed for driving up to 10A laser diodes. It operates from a 5.5V ~ 27V power supply and delivers stable current output across a 1.1V ~ 21.6V load voltage range.
The driver is suitable for applications including DPSSL, EDFA, Fiber Lasers.
Specifications
| Input Voltage (VVPS) | 5.5V ~ 27V |
| Output Voltage | 1.1V ~ 21.6V (0.2VVPS ~ 0.8VVPS) |
| Max. Output Current | 10A |
| Noise | <12µAP-P |
| Stability | <±6mA @10A, -20°C ~ 80°C |
| Modulation BW | DC ~ 5kHz |
| Efficiency | 90% (IOUT=10A, VLDA=20V, VVPS=27V), heat sink required |
| Drive Type | Switch |
| Package Type | DIP |
| Input Type | DC High |
| Operating Temperature (°C) | -40 ~ 110 |
| Dimension (mm) | 27.4×21×5.7 |
| Weight | 0.3 lbs |
|---|---|
| Laser Input Voltage | DC High (Above 16V) |
| Laser Max Current | 6A To 15A |
| Laser Drive Type | Switch |
| Laser Package | DIP |
