ATLF20A5V Laser Driver Noise Filter, 20A, 0V–5V, 70dB Attenuation

ATLF20A5V Laser Driver Noise Filter, 20A, 0V–5V, 70dB Attenuation

$59.00

Ripple & Noise Filter for Laser Drivers and Power Supplies
Up to 20 A Output Current, 0 V – 5 V Output Voltage
~70 dB Attenuation from 10 kHz to 1 MHz
Low Temperature Rise: 35°C · Operating Range: −20°C to 50°C
Compact In-Line Design — No Effect on Driver Output

6 in stock (can be backordered)

Datasheet
SKU: ATLF20A5V Category:

Product Overview

The ATLF20A5V is an in-line noise filter designed to remove ripple and noise from the output of laser drivers and power supplies without affecting the driver’s output. It attenuates noise in the 10 kHz to 1 MHz band by approximately 70 dB, eliminating the negative influence of power supply noise on laser driver performance.
The filter handles output currents from 0 A to 20 A over a 0 V to 5 V output voltage range, with a low temperature rise of 35°C. Its compact form factor allows it to be mounted directly on a power supply, laser driver, or any other device requiring noise filtering.

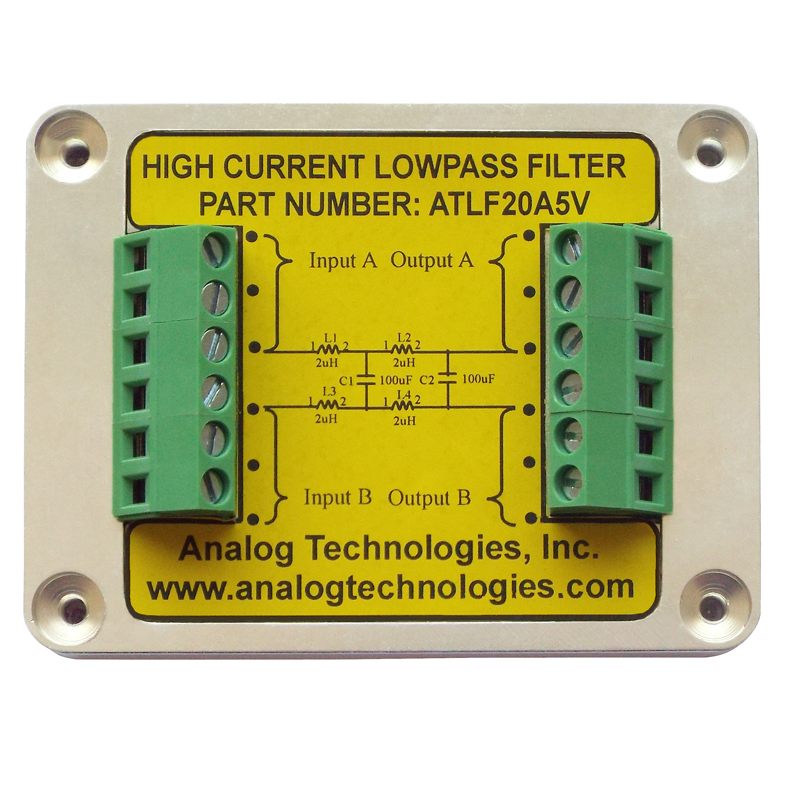

The filter has two connectors. The connector on the left is connected to the laser driver — the driver outputs connect to Input A and Input B of the filter. Output A and Output B on the right-hand connector connect to the load.

Specifications

Maximum Output Current 20 A
Output Voltage Range 0 V ~ 5 V
Attenuation ~70 dB
Filter Frequency Range 10 kHz ~ 1 MHz
Temperature Rise 35°C
Operating Temperature −20°C ~ 50°C
Input Connections Input A, Input B (from laser driver)
Output Connections Output A, Output B (to load)
Weight 0.5 lbs
