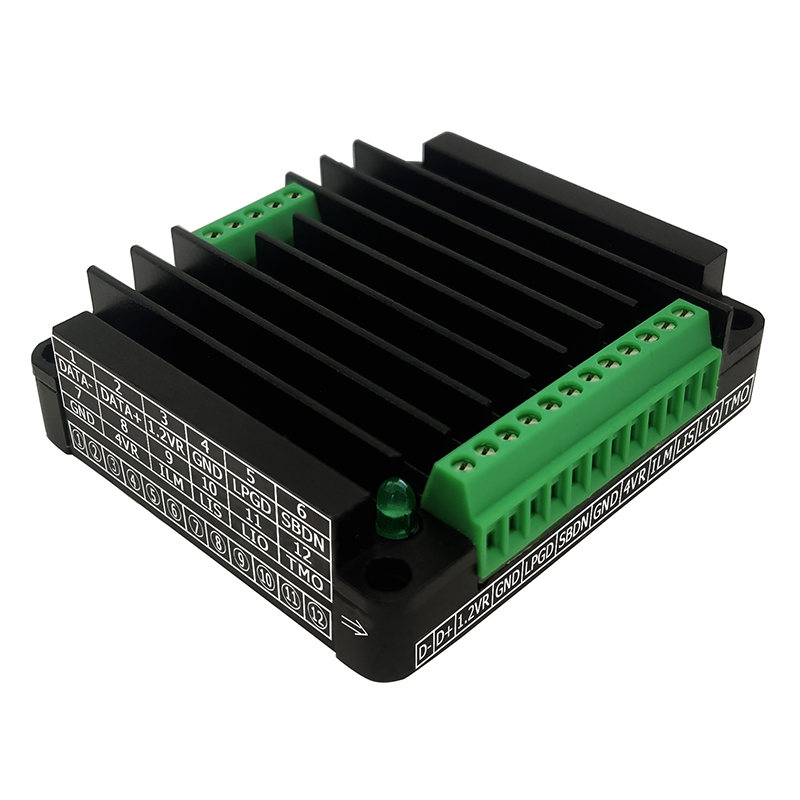

AQCL200MA410DFN Ultra-Low Noise Laser Driver, 200mA, High Voltage DC Input
$9,999.99
Constant Current Laser Diode Driver
Input Voltage (VVPS): 10V ~ 28V
Output Voltage: 1V ~ 24V (1V ~ VVPS – 4V)
Max. Output Current: 200mA
Noise: <0.25µAP-P
Available on backorder
Product Overview
The AQCL200MA410DFN is a constant current laser diode driver designed for driving up to 200mA laser diodes with ultra-low output noise. It operates from a 10V ~ 28V power supply and delivers stable current output with a -18V ~ -8V output voltage range, with output noise <0.25µAP-P (0.1Hz ~ 10Hz).
The driver is suitable for applications including QCL (Quantum Cascade Laser) Driving, Radar, Medical Diagnostics, Spectroscopy, Chemical Analysis, General Measurement Systems.
Specifications
| Input Voltage (VVPS) | 10V ~ 28V |
| Output Voltage | -18V ~ -8V |
| Max. Output Current | 200mA |
| Noise | <0.25µAP-P |
| Stability | <20ppm/°C |
| Modulation BW | DC ~ 1MHz |
| Drive Type | Linear |
| Package Type | Chassis |
| Input Type | DC High |
| Operating Temperature (°C) | -40 ~ 65 (ambient) |
| Dimension (mm) | 49.4×45×14 |
| Weight | 2 lbs |
|---|---|
| Laser Input Voltage | DC High (Above 16V) |
| Laser Max Current | Up To 500mA |
| Laser Drive Type | Linear |
| Laser Package | Chassis |
| Vin | 10V ~ 28V |
| Iout | 200mA |
| Vf | -18V ~ -8V |
| Noise | <0.25µAP-P |
