A2UHVAC5KV50MAIRM 5kV 50mA AC DC HV Power Supply (110V / 220V Input)
$3,899.00
AC-DC High Voltage Power Supply
Input Voltage: 110V / 220V
Output Voltage: 0V ~ 5kV
Max. Output Current: 50mA
Discount per Quantity
| Quantity | Price |
|---|---|
| 1 - 9 | $3,899.00 |
| 10 - 49 | $3,799.00 |
| 50 - 99 | $3,699.00 |
| 100 + | $3,599.00 |
Product Overview
The A2UHVAC5KV50MAIRM is a ac-dc high voltage power supply designed for a2u rack mount ac-dc high voltage power supplies. It converts 110V / 220V input into a high voltage output up to 5kV, with a maximum output current of 50mA.
The module is designed for stable AC-DC high voltage conversion, offering reliable output performance, compact construction, and easy integration into equipment requiring mains-powered high voltage supply. It is suitable for applications such as laboratory equipment, industrial instruments, bench-top systems, and general high voltage power applications.

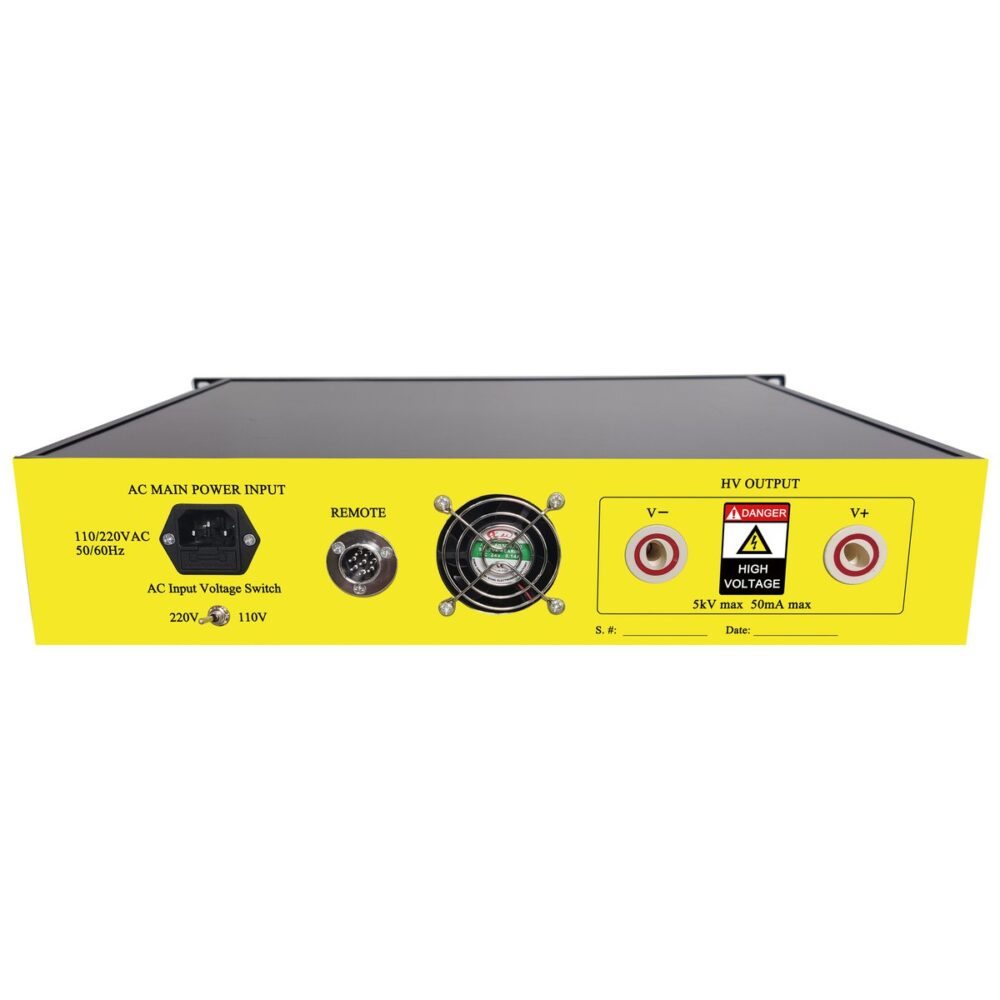

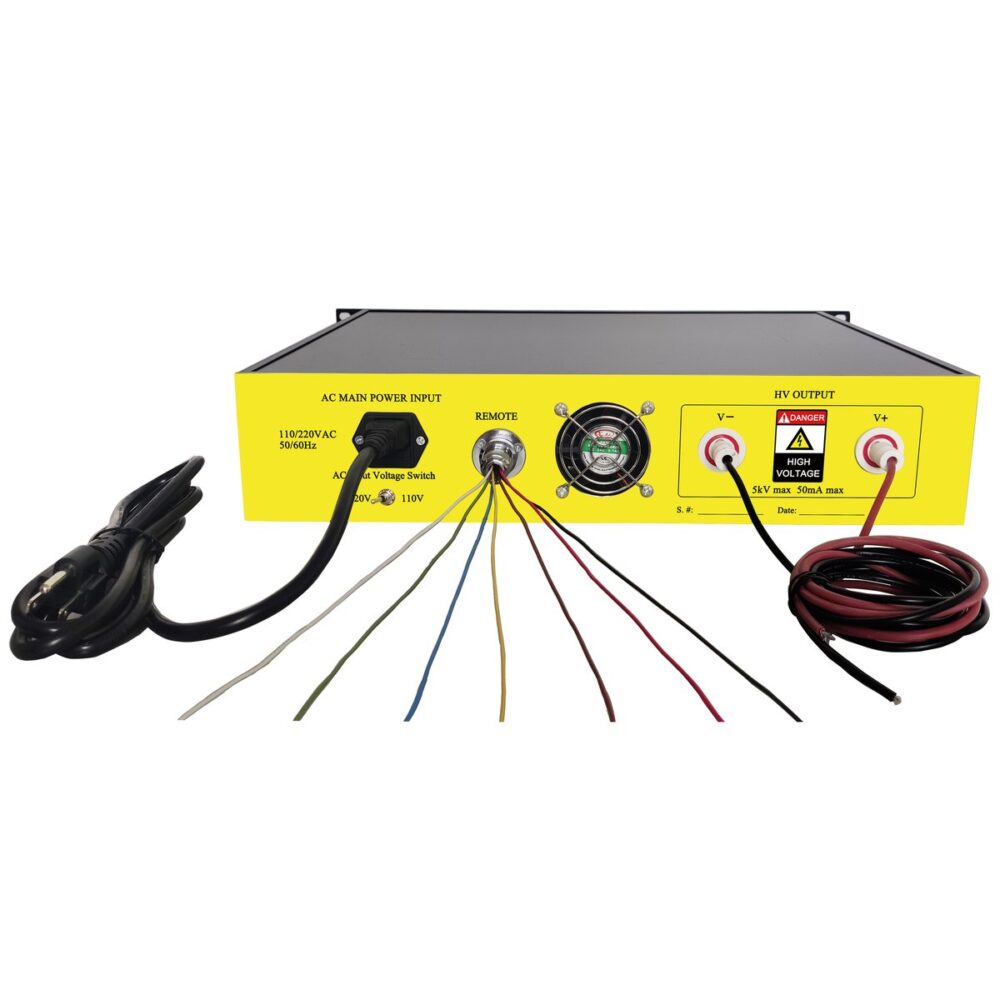

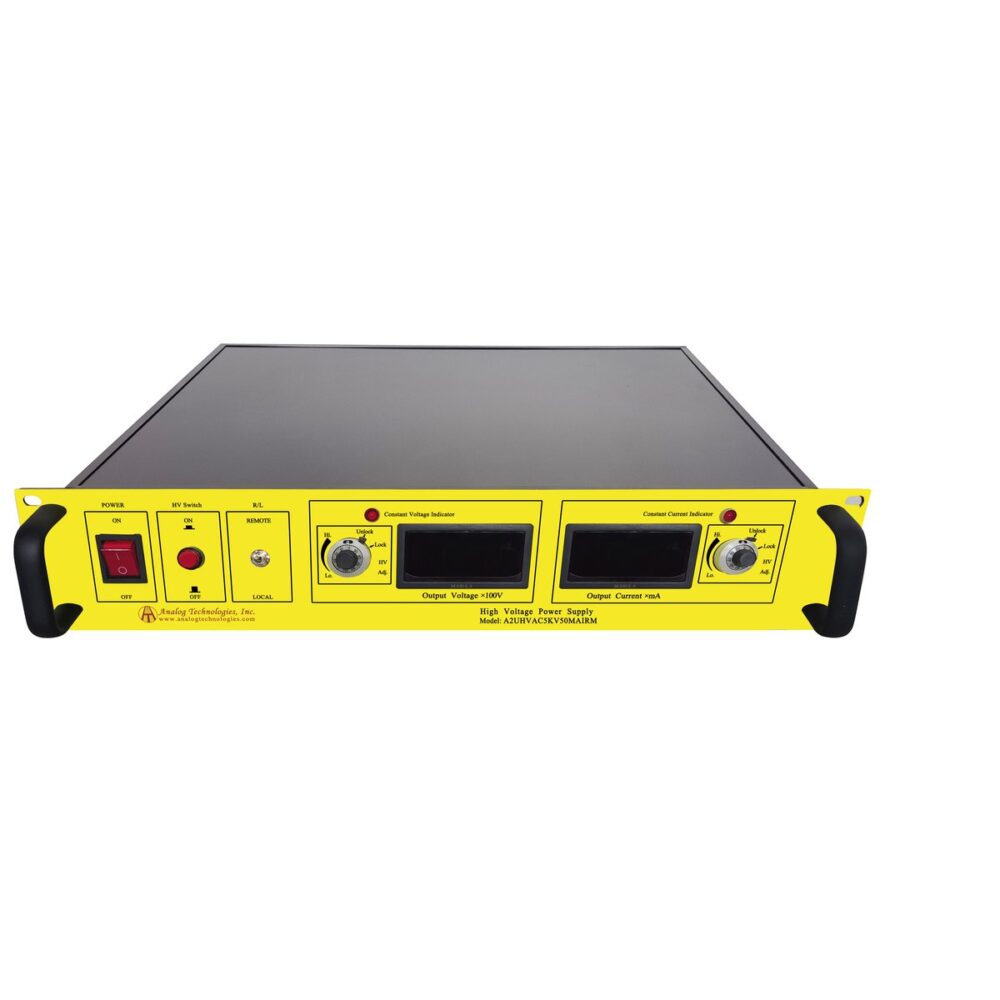

The output voltage is continuously adjustable from 0V up to the rated maximum, either locally using the front-panel 10-turn potentiometer or remotely through the rear-panel control connector with a 0V to 5V programming signal.
Specifications
| Input Voltage | 110V / 220V |
| Output Voltage | 0V to 5kV |
| Max. Output Current | 50mA |
| Output Type | Constant Voltage |
| Package Type | 2U |
| Input Type | AC |

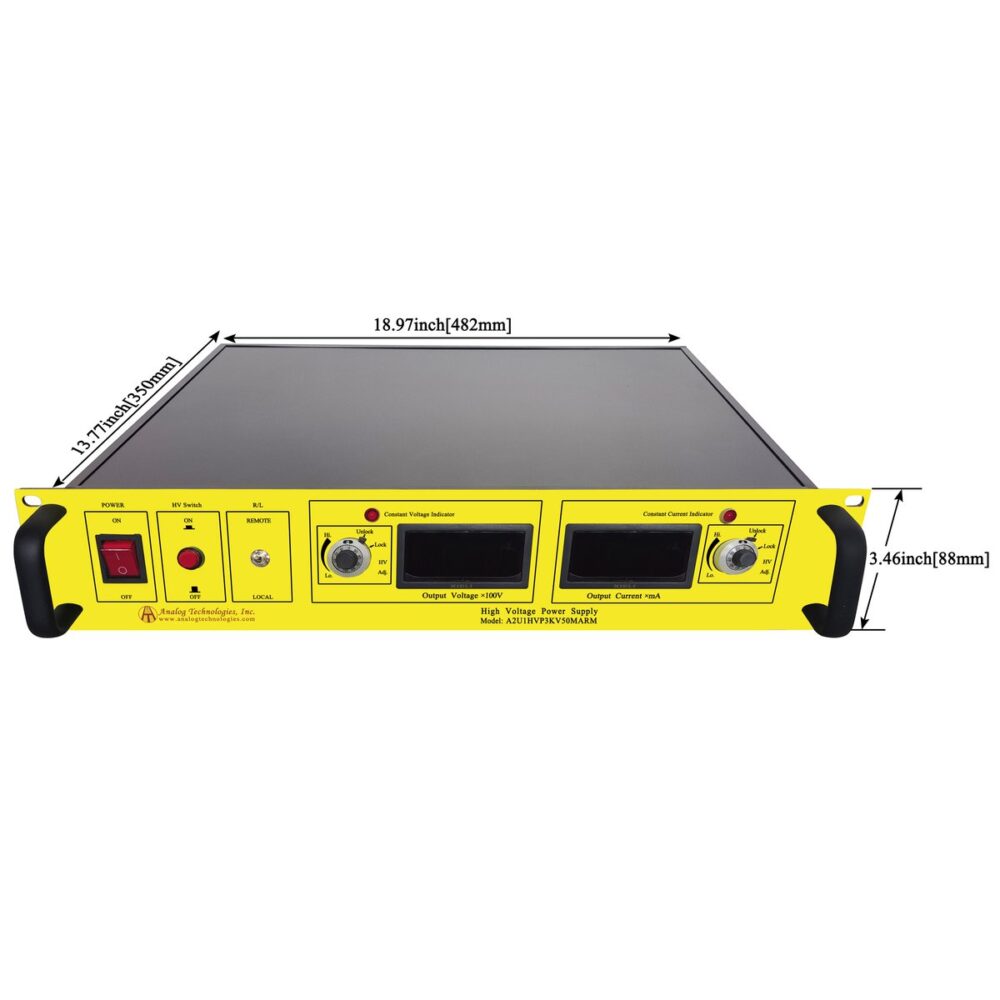

| Dimension | 482×350×88 |
| Weight | 46 lbs |
|---|---|
| Input Voltage | AC Input |
| Polarity | Positive |
| Package Type | 2U |
