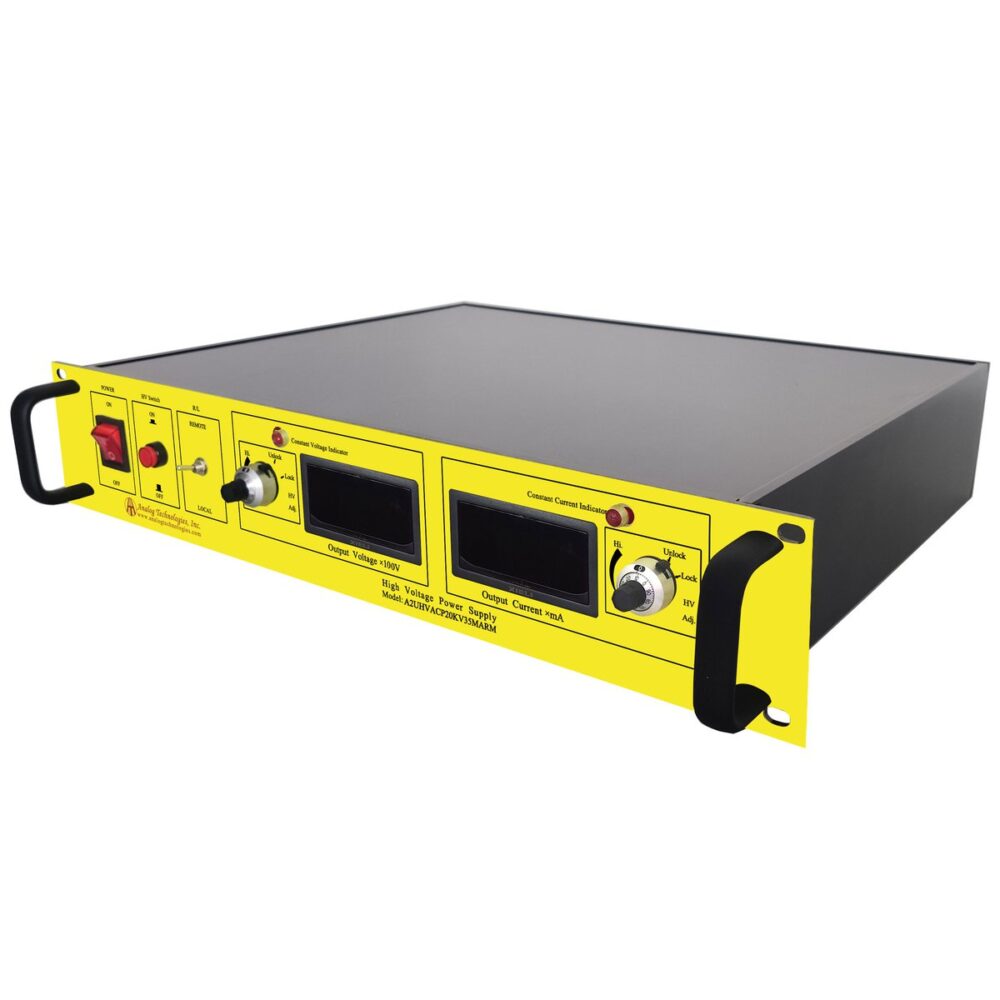

A2UHVACP20KV35MARM 20kV 35mA AC DC HV Power Supply (220V ~ 240V Input)
$4,899.00
AC-DC High Voltage Power Supply
Input Voltage: 220V ~ 240V
Output Voltage: 0V ~ 20kV
Max. Output Current: 35mA
Discount per Quantity
| Quantity | Price |
|---|---|
| 1 - 9 | $4,899.00 |
| 10 - 49 | $4,799.00 |
| 50 - 99 | $4,699.00 |
| 100 + | $4,599.00 |
Product Overview
The A2UHVACP20KV35MARM is a ac-dc high voltage power supply designed for a2u rack mount ac-dc high voltage power supplies. It converts 220V to 240V input into a high voltage output up to 20kV, with a maximum output current of 35mA.
The module is designed for stable AC-DC high voltage conversion, offering reliable output performance, compact construction, and easy integration into equipment requiring mains-powered high voltage supply. It is suitable for applications such as laboratory equipment, industrial instruments, bench-top systems, and general high voltage power applications.

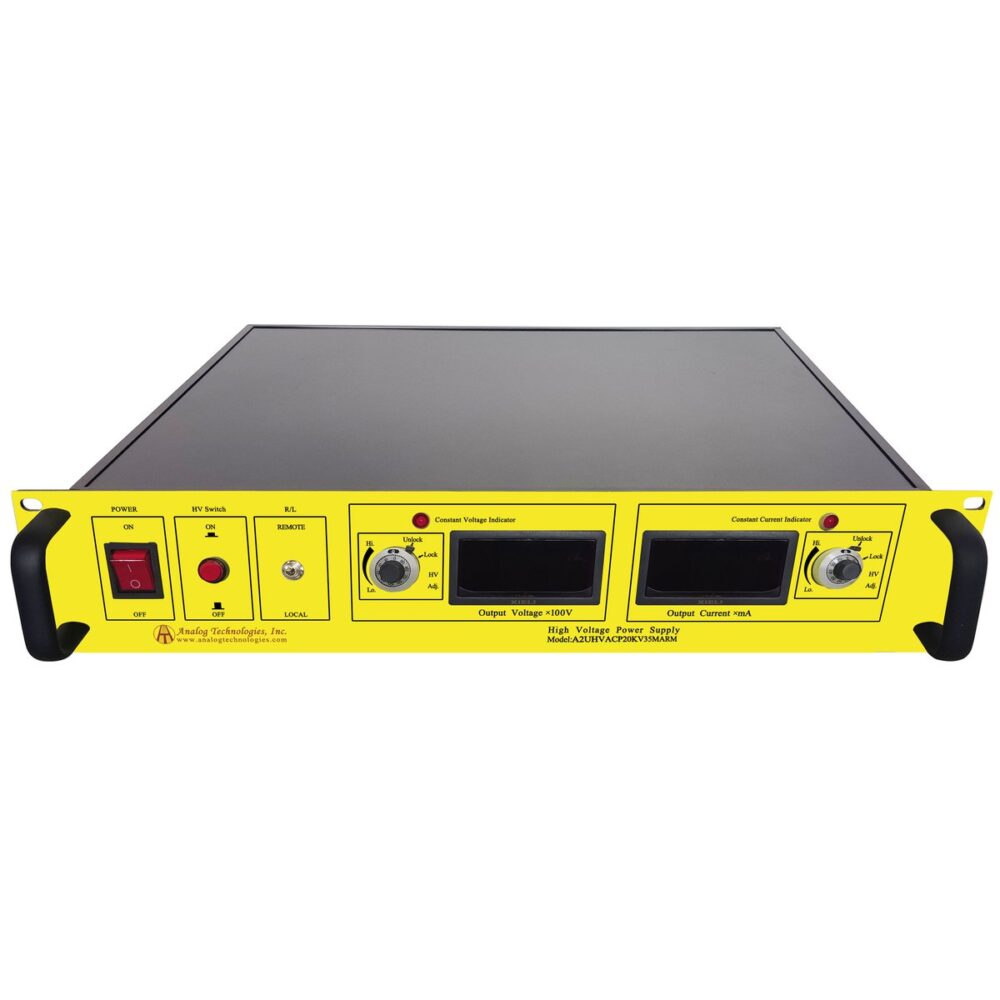

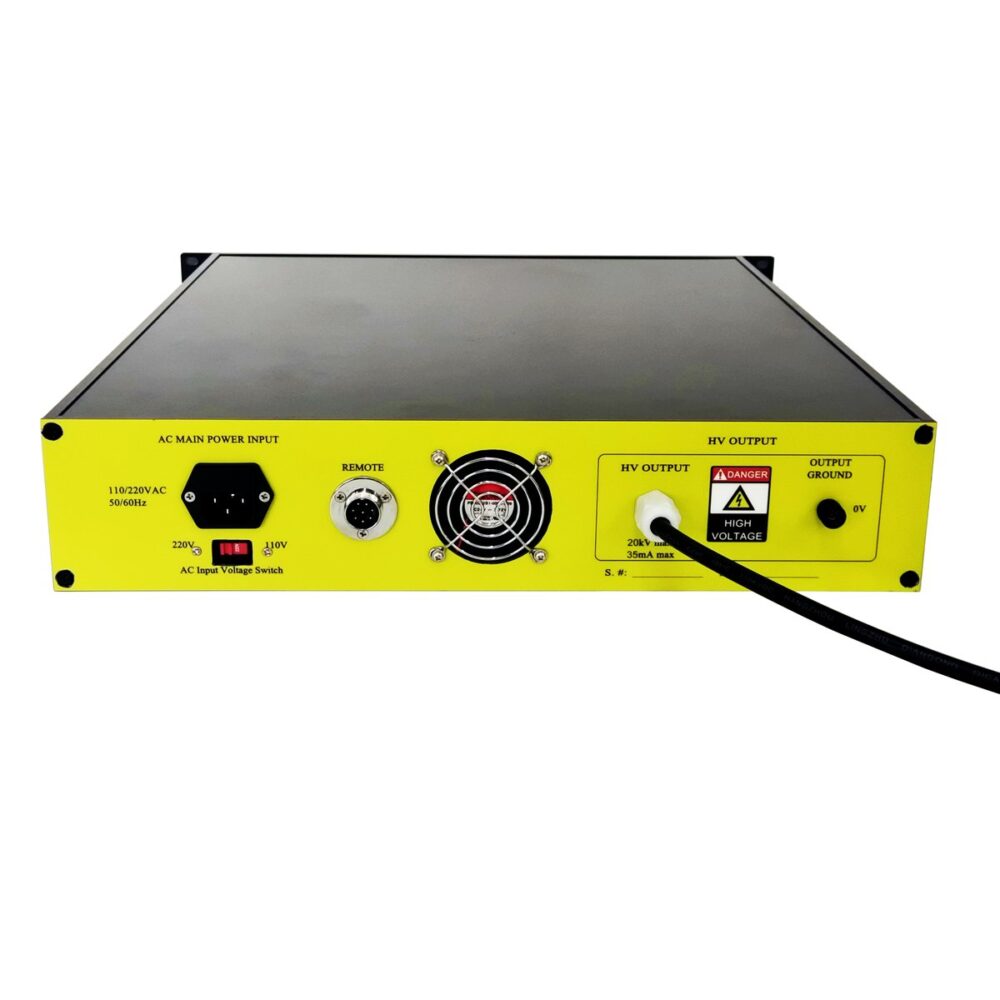

The output voltage is continuously adjustable from 0V up to the rated maximum, either locally using the front-panel 10-turn potentiometer or remotely through the rear-panel control connector with a 0V to 5V programming signal.
Specifications
| Input Voltage | 220V to 240V |
| Output Voltage | 0V to 20kV |
| Max. Output Current | 35mA |
| Output Type | Constant Voltage |
| Package Type | 2U |
| Input Type | AC |
| Dimension | 483×400×88 |
| Weight | 46 lbs |
|---|---|
| Input Voltage | AC Input |
| Polarity | Positive |
| Package Type | 2U |
