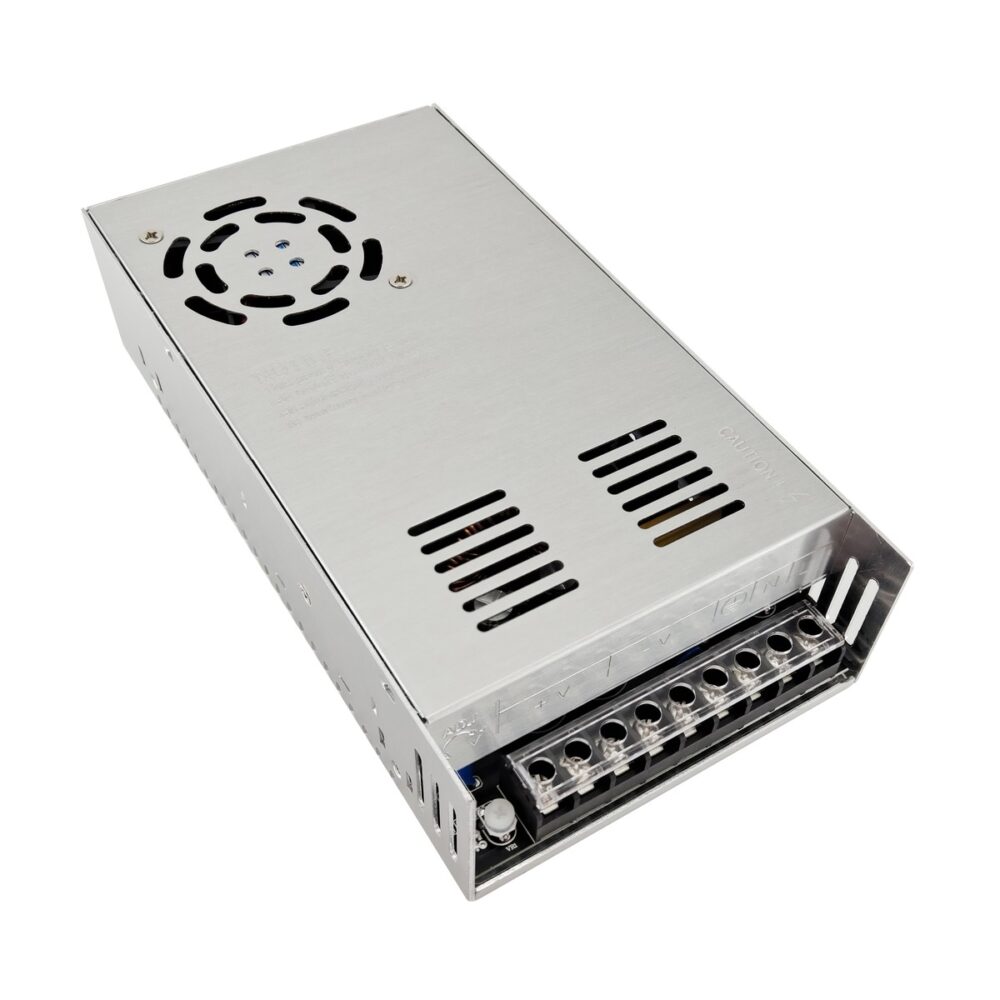

ALRS12V40AT 12V 40A 480W AC DC Switching Power Supply (90 ~ 264V Input)
$33.00
AC-DC Switching Power Supply
Input Voltage: 90 ~ 264V
Output Voltage: 12V
Output Current: 40A
Output Power: 480W
37 in stock (can be backordered)
Product Overview
The ALRS12V40AT is an ac-dc switching power supply designed for enclosed single-output dc power supplies. It converts 90 to 264V input into a regulated 12V dc output, with a rated output current of 40A (480W).
The unit is designed for stable AC-DC power conversion, offering high efficiency (>80%), complete short-circuit / overload / over-voltage / over-temperature protection, forced-air cooling with built-in fan control, and a compact 1U enclosed construction for easy integration. Typical applications include large LED video walls, industrial automation and motor control, robotics, and high-power audio/video systems.
Specifications
| Input Voltage | 90 to 264V |
| Output Voltage | 12V |
| Output Current | 40A |
| Output Power | 480W |
| Output Type | Constant Voltage |
| Package Type | Enclosed |
| Input Type | AC |
| Efficiency | >80% |
| Cooling | Forced Air |
| Operating Temperature | -10°C to 60°C |
| Weight | 3 lbs |
|---|---|
| ALRS Output Voltage | 12V |
