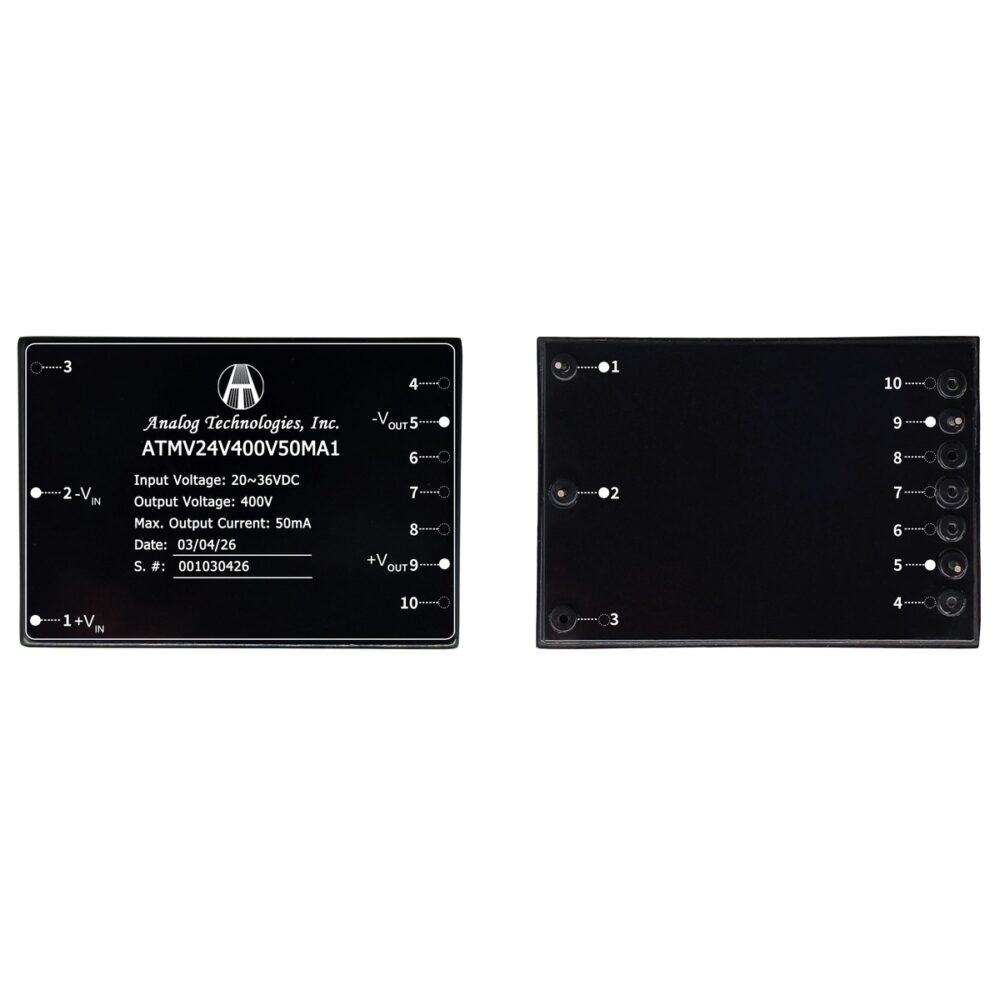

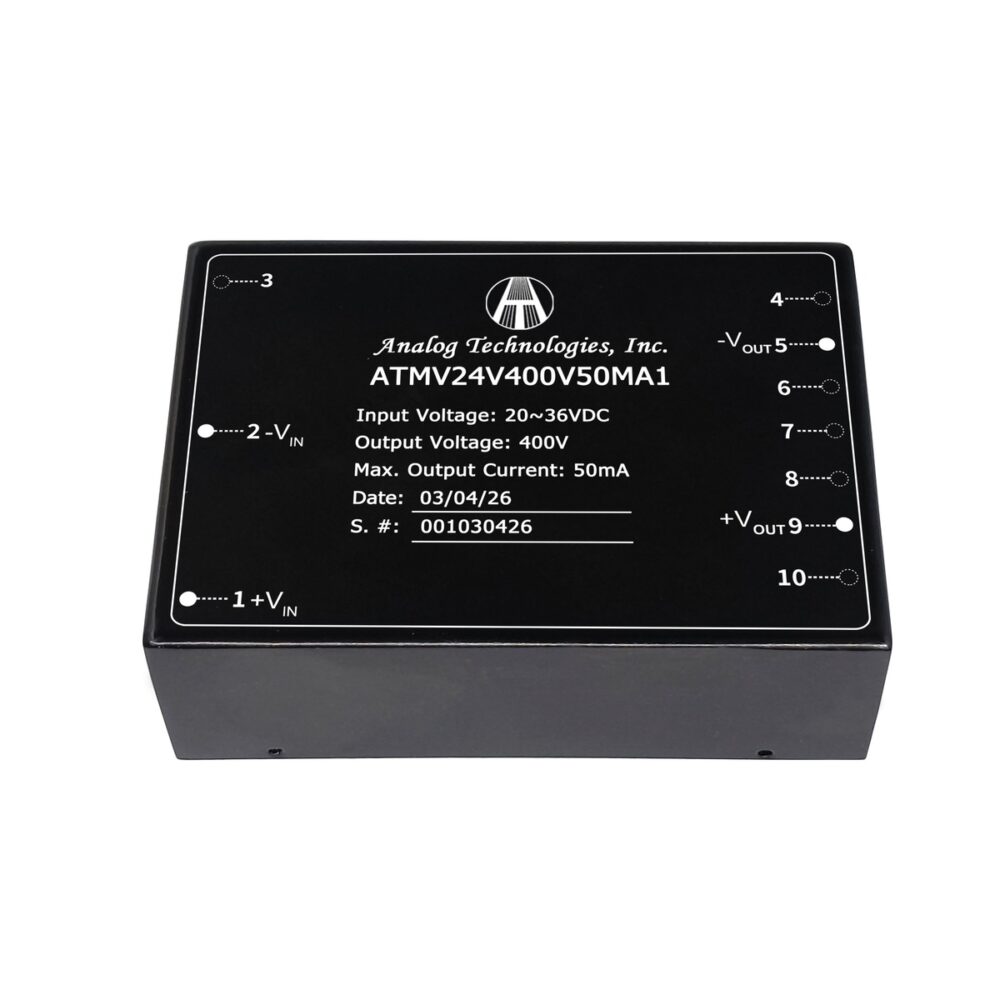

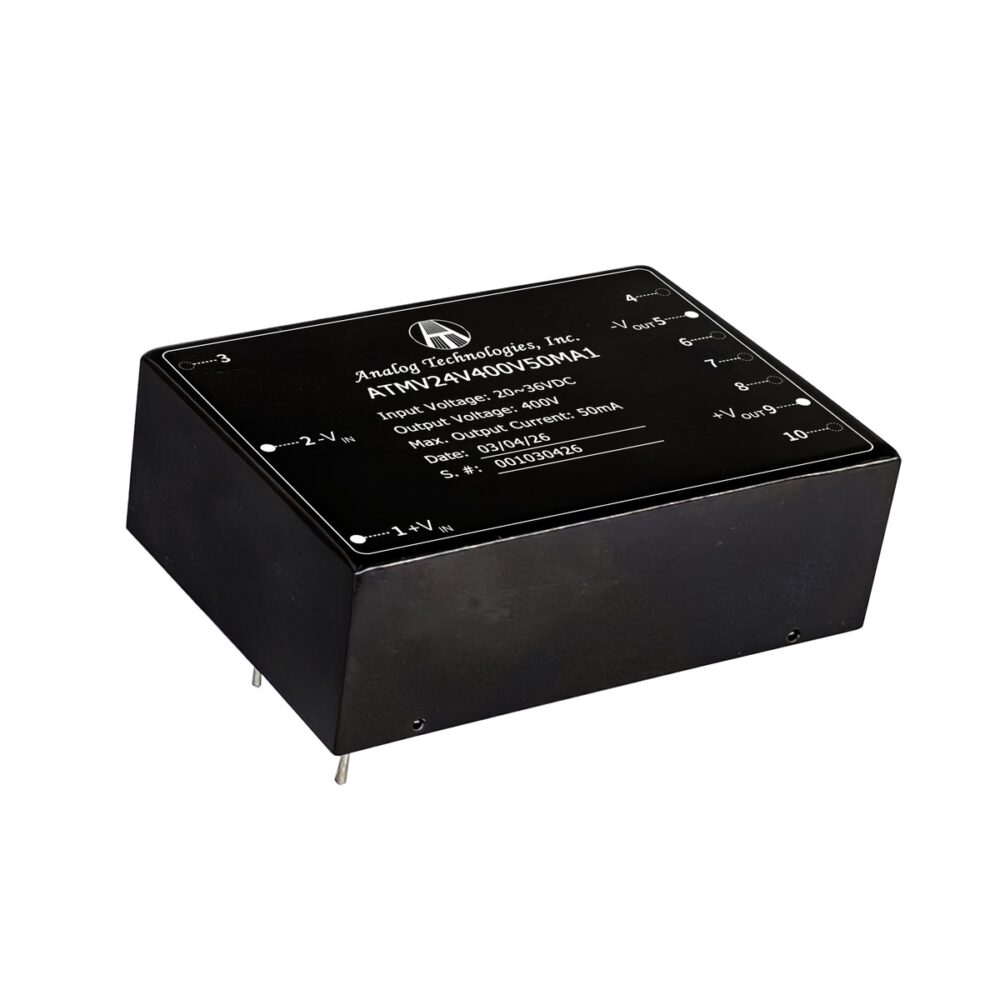

The ATMV24V400V50MA1 is an isolated DC-DC converter designed for 24V input isolated power applications. It converts 20V to 36V input into a single output of 400V, with a maximum output current of 50mA and a 1500VDC input-to-output isolation barrier.
The module provides efficient isolated DC-DC conversion in a compact package, with reliable regulation, galvanic isolation, and easy integration into low-voltage powered systems. It is suitable for powering the isolated side of measurement and signal-conditioning circuits, sensor and instrumentation supplies, and industrial control systems.
Specifications
Input Voltage
20V to 36V
Output Voltage
400V
Max. Output Current
50mA
Output Type
Single
Rated Power
20W
Efficiency
80%
Isolation
1500VDC
Input Type
DC
Dimension
72.00×40.00×24.00
Weight
0.3 lbs
Polarity
Positive
Efficiency
80%
Power
20W
