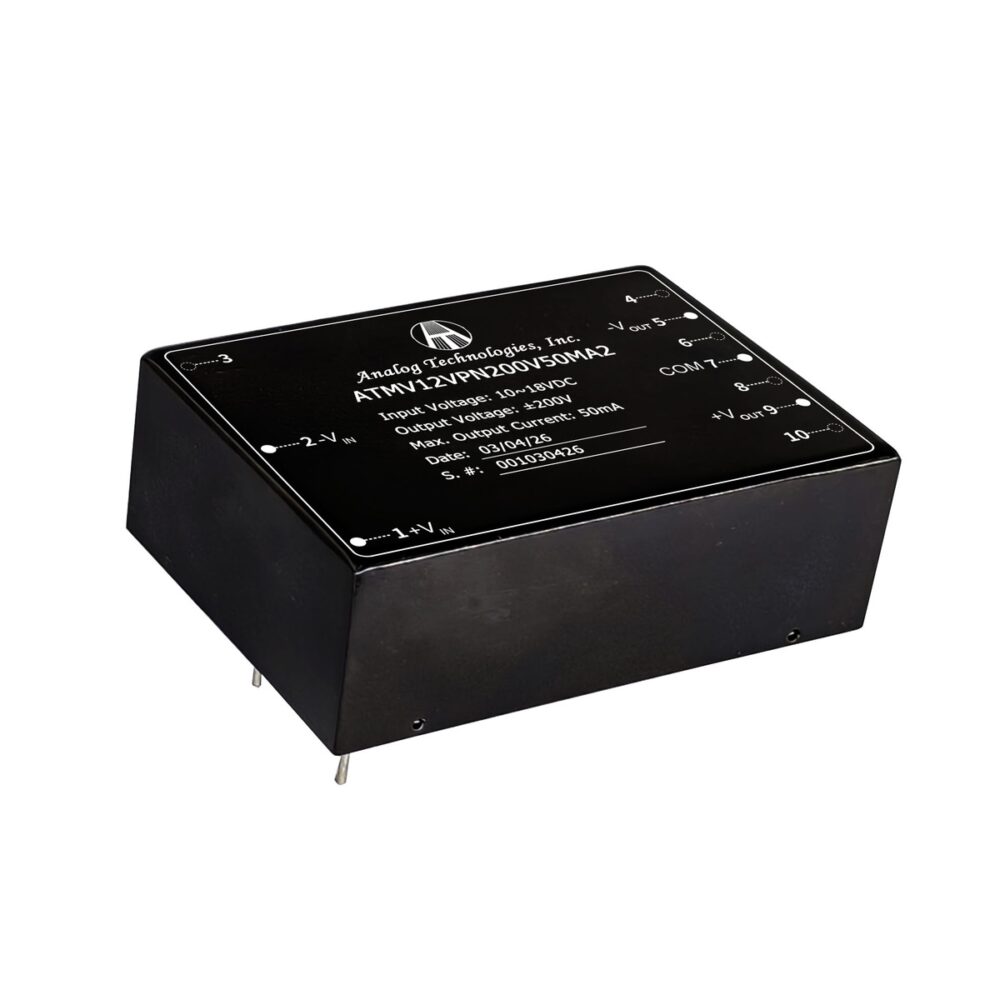

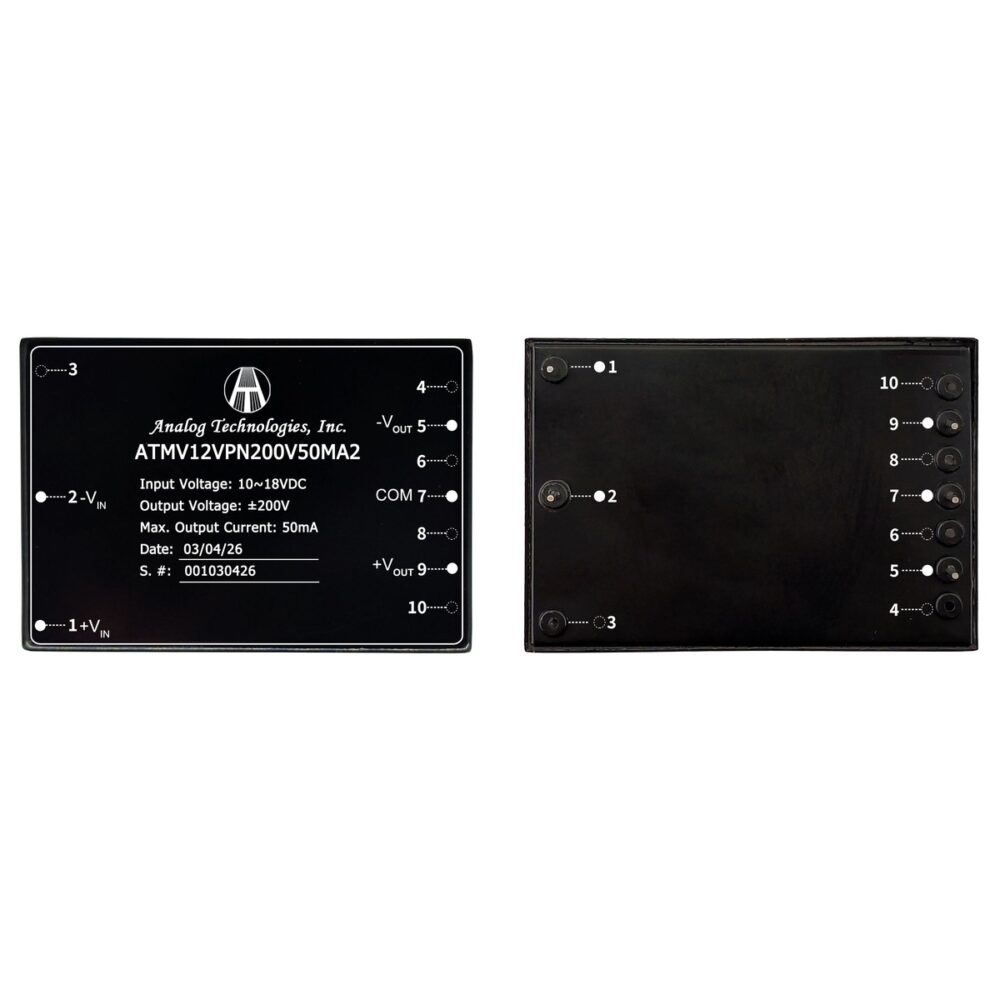

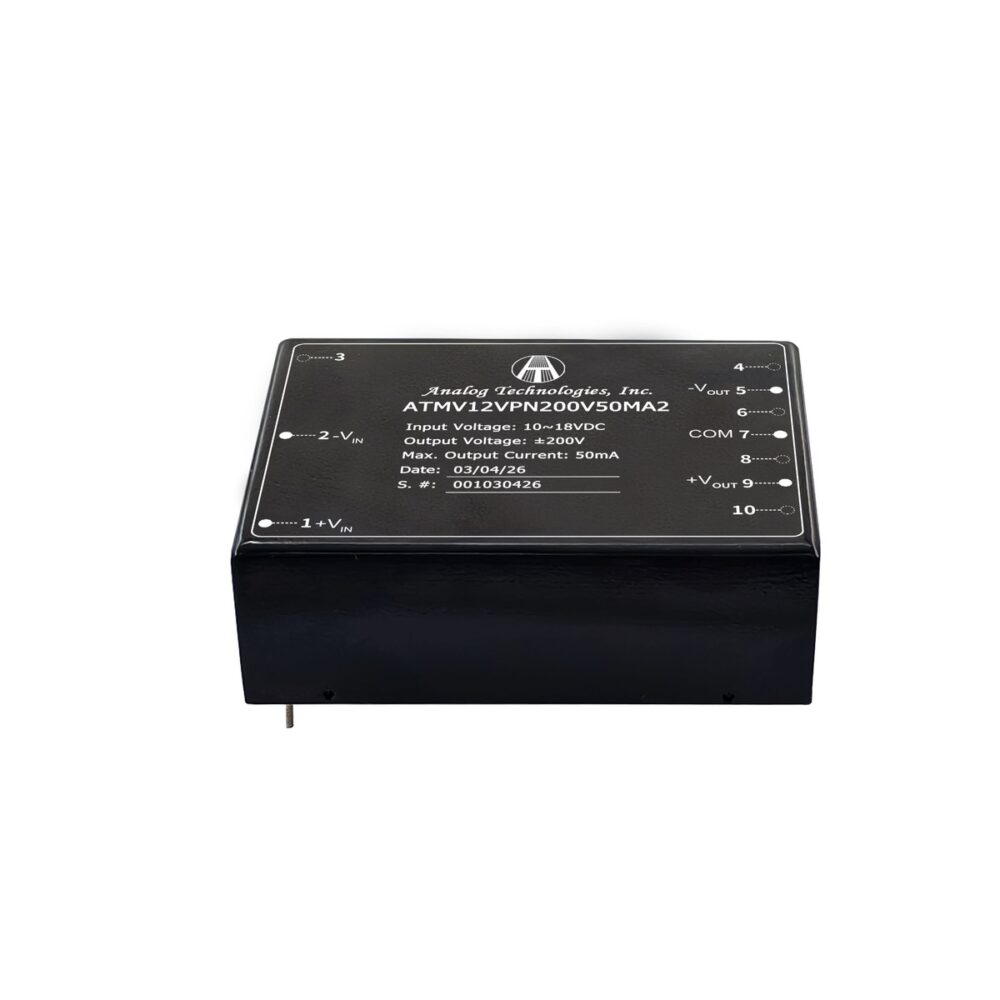

The ATMV12VPN200V50MA2 is an isolated DC-DC converter designed for 12V input isolated power applications. It converts 10V to 18V input into a bipolar output of ±200V, with a maximum output current of ±50mA and a 1500VDC input-to-output isolation barrier.
The module provides efficient isolated DC-DC conversion in a compact package, with reliable regulation, galvanic isolation, and easy integration into low-voltage powered systems. It is suitable for powering the isolated side of measurement and signal-conditioning circuits, sensor and instrumentation supplies, and industrial control systems.
Specifications
Input Voltage
10V to 18V
Output Voltage
±200V
Max. Output Current
±50mA
Output Type
Dual
Rated Power
20W
Efficiency
80%
Isolation
1500VDC
Input Type
DC
Dimension
72.00×40.00×24.00
Weight
0.3 lbs
Polarity
Bipolar
Efficiency
80%
Power
20W
