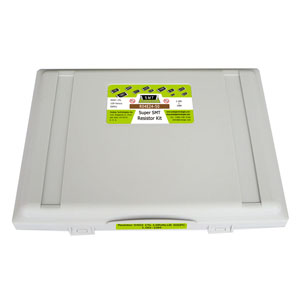

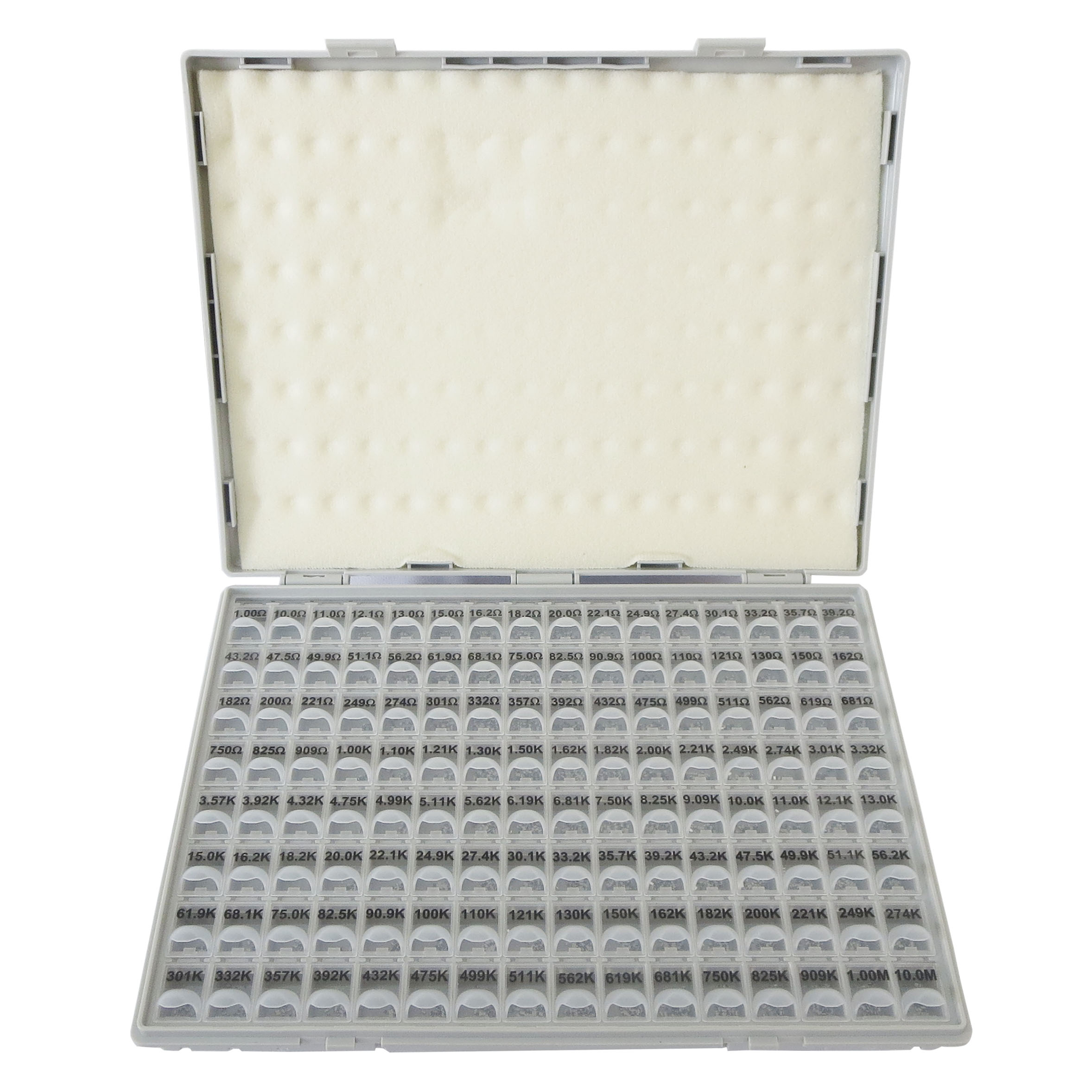

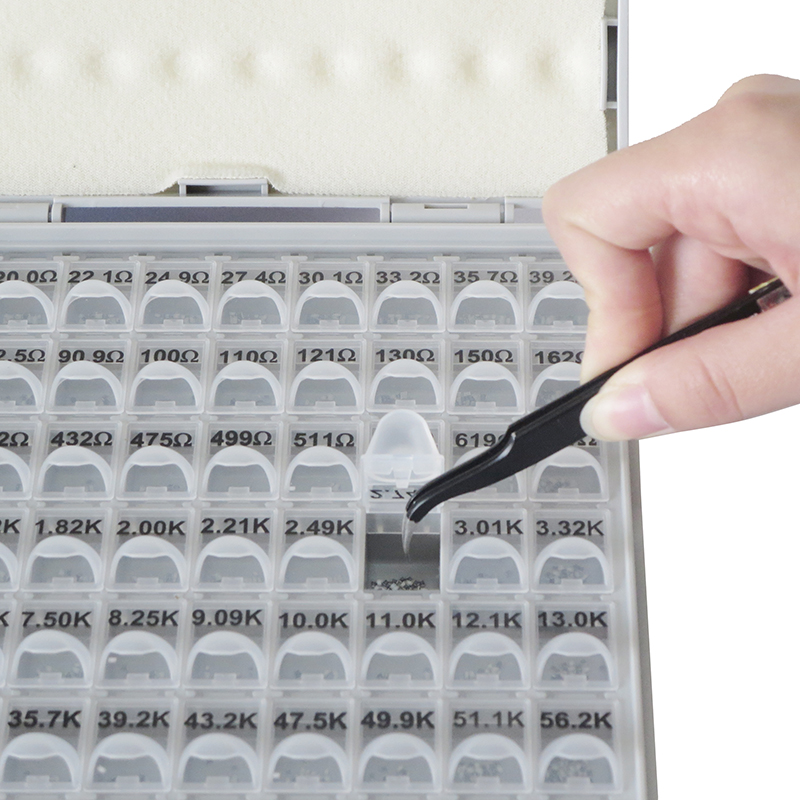

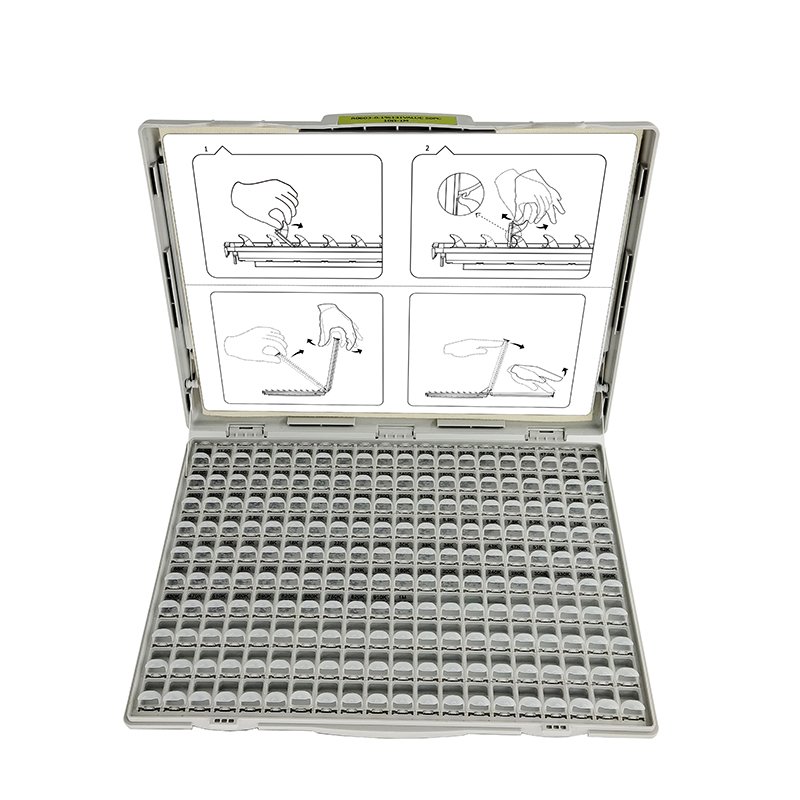

Our Super SMD Resistor Kits come in one or multiple Super SMD Enclosures, which have either 128 or 200 bins per box, featuring pre-sorted resistors with clear value labeling on each bin lid. You can quickly find and pick out any value of resistor in seconds, saving valuable time during prototyping or pilot production.
We offer three tolerance options: 5%, 1%, and 0.1%, giving you the flexibility to choose the suitable accuracy level for your specific needs. We have two types of kits available: standard kits with the same number of pieces per value, and differential kits with a variable number of pieces per value, where commonly used values have more pieces, and less frequently used values have fewer pieces.
The lead time for non-stocking kits is 1 week.
All resistors are 1% except noted.
: SMTZone.com, our store, lowest price.
: shop.analogtechnologies.com, our store, lowest price.
: Amazon, 15% higher priced due to commission fee.
: Digi-Key, 15% higher priced due to commission fee.
Video: SMD Resistor Kits
Video: How It Works
Content Format |
1. Part Number for Ordering 2. Datasheet 3. # of Pieces/Value 4. Price/Kit 5. Stocking Info. 6. Online Store Icons |
||||
---|---|---|---|---|---|
50Pcs/Value | 100Pcs/Value | 200Pcs/Value | 500Pcs/Value | 1000Pcs/Value | |

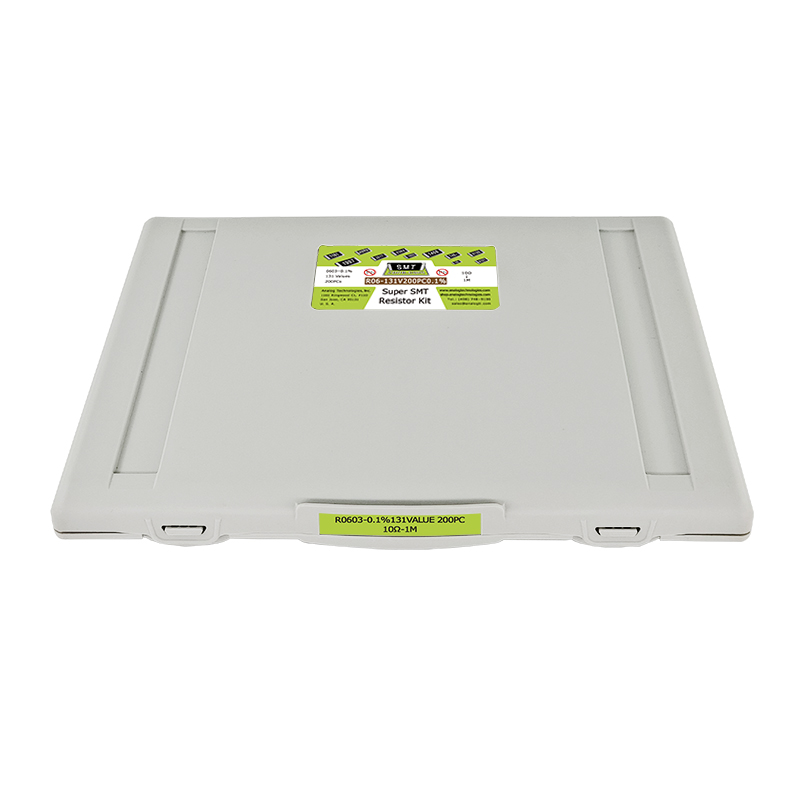

0.1% High Precison Series Resistor Kits |
|||||
0603 |
61Values |
61Values |
61Values |
61Values |
|
131Values |
131Values |
131Values |
131Values |
||
1% Classic Series Resistor Kits |
|||||

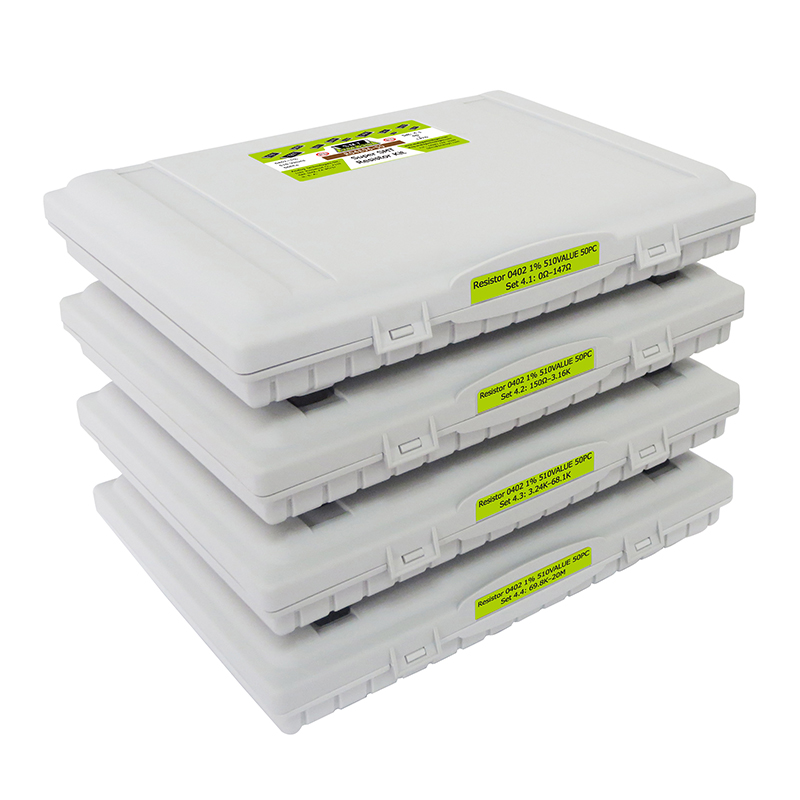

0402 | 128 Values | 128 Values | 128 Values | 128 Values | |
510 Values | 510 Values | 510 Values | 510 Values | ||
0603 | 128 Values | 128 Values | 128 Values | 128 Values | |
510 Values | 510 Values | 510 Values | 510 Values | ||
0805 | 128 Values | 128 Values | 128 Values | 128 Values | |
510 Values | 510 Values | 510 Values | 510 Values | ||
1206 | 128 Values | 128 Values | 128 Values | 128 Values | |
510 Values | 510 Values | 510 Values | 510 Values | ||
Upgraded Series Resistor Kits- More Values, Smaller Size |
|||||
0201 | 169 Values |
169 Values |
169 Values |
169 Values |
169 Values |
0402 | 196 Values |
196 Values |
196 Values |
196 Values |
|
760 Values | 760 Values | 760 Values |
760 Values | ||

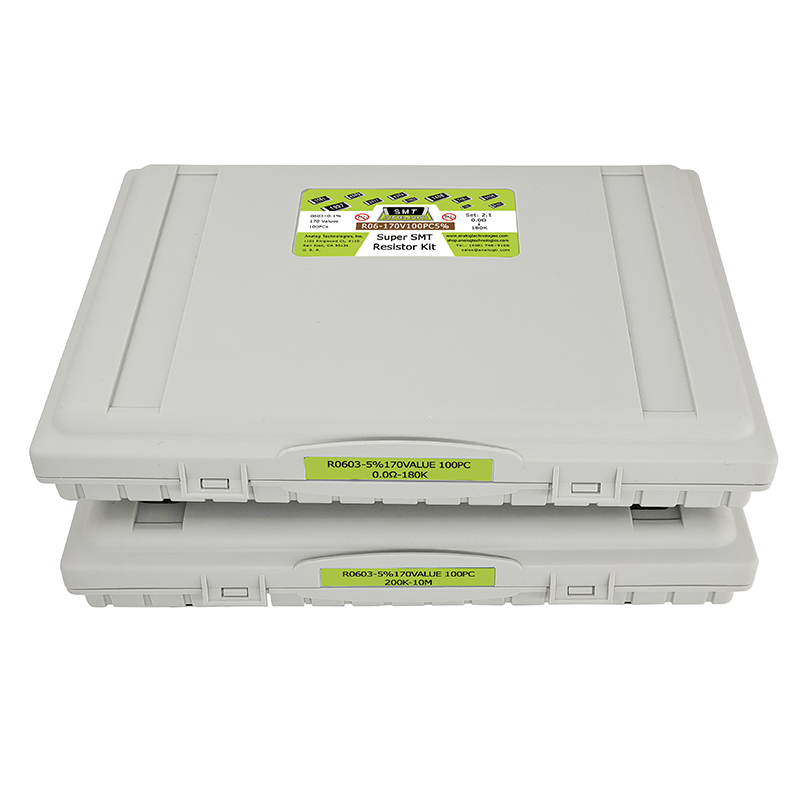

5% Precision Series Resistor Kits |
|||||
0603 | 170 Values | 170 Values | 170 Values | ||
- | |||||
0805 | 170 Values | 170 Values | 170 Values | ||
- | |||||
Diffential Series Resistor Kits |
|||||
0402 | 510 Values | ||||
- | |||||
0603 | - | ||||
0805 | - |
About Our Super SMD Resistor/Capacitor/Inductor Kits
Analog Technologies has been a leading manufacturer and supplier of Super SMT/SMD Resistor/Capacitor/Inductor Kits for over 26 years, with over 100 different types of kits available worldwide.
Our user-friendly and durable design makes our kits an ideal choice for professionals, students, and hobbyists seeking an efficient and reliable way to obtain SMD resistors, capacitors, and inductors. With our Super SMD Resistor Kits, you can streamline your workflow, improve the accuracy of your projects, and enjoy the convenience of our hassle-free system.
We also design and make Super SMD Capacitor Kits. Datasheet for Super SMD Capacitor Kits
