High-voltage isolation amplifiers for accurate signal processing in demanding applications exceeding 1000V
±0.005% precision
Up to 800kHz
2000V common mode
Our high-voltage isolation amplifiers play a critical role in detecting small voltage signals superimposed on high AC or DC voltages, typically exceeding 1000V. These amplifiers accurately isolate, amplify, and scale down the detected signals to a low common voltage level, enabling safe and precise signal processing.
The primary use of isolation amplifiers is in current measurement across current-sensing resistors positioned on high-voltage rails such as AC power grids and electric vehicle powertrain battery banks.
| Part # | Description | Package | Bandwidth | Serial # | Status | Output Voltage vs. Power Supply | Online Purchase: =shop.analogtechnologies.com = smtzone.com  = digikey.com(15% higher priced due to commission fee) |
|---|---|---|---|---|---|---|---|
| Datasheet | Common Mode Vmax. | Rise Time | |||||
| Price (@>50PCs) | P. S. Current | Linearity | Stock | ||||

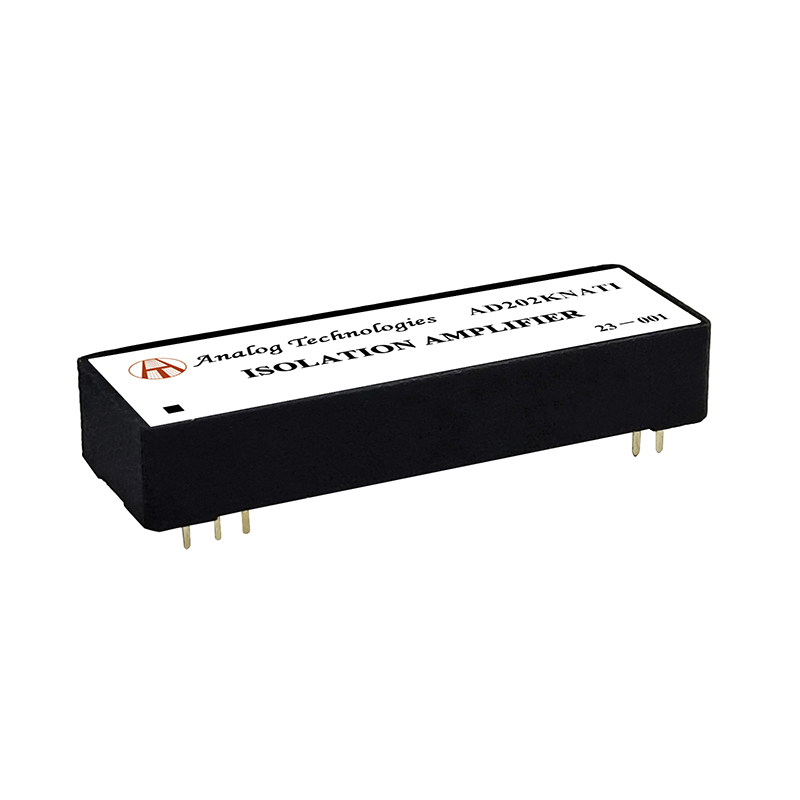

AD202KNATI
|
Upgraded replacement for AD202KN | DIP | 800kHz | >25156 | In production | Isolated |
5 |
AD202JNATI
|
Upgraded replacement for AD202JN | DIP | 800kHz | - | In production | Isolated |
0 |
AD202KYATI
|
Upgraded replacement for AD202KY | SIP | 800kHz | >25290 | In production | Isolated |
0 |
AD202JYATI
|
Upgraded replacement for AD202JY | SIP | 800kHz | - | In production | Isolated |
0 |
