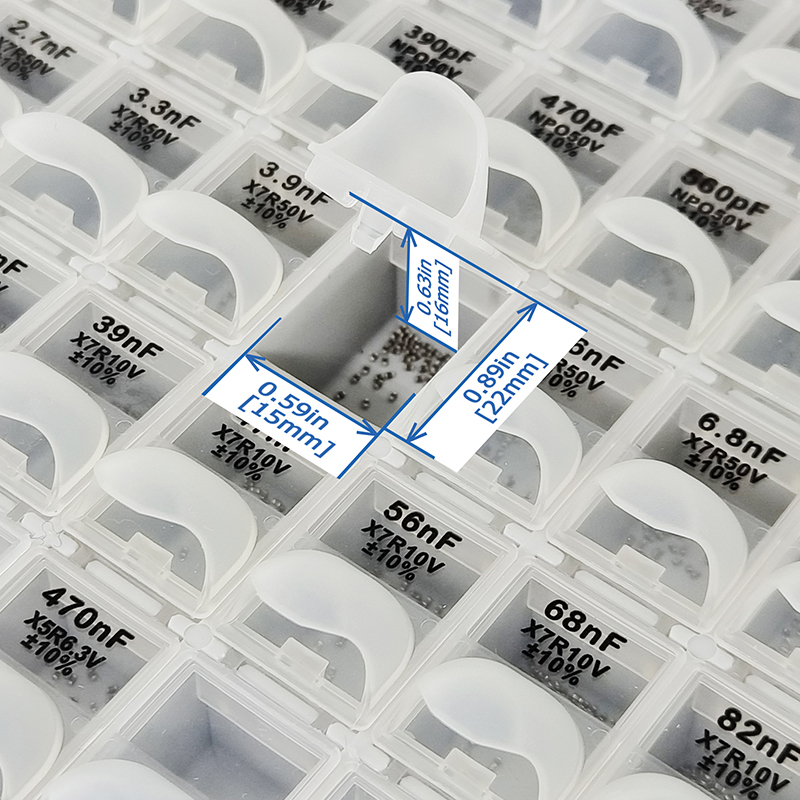

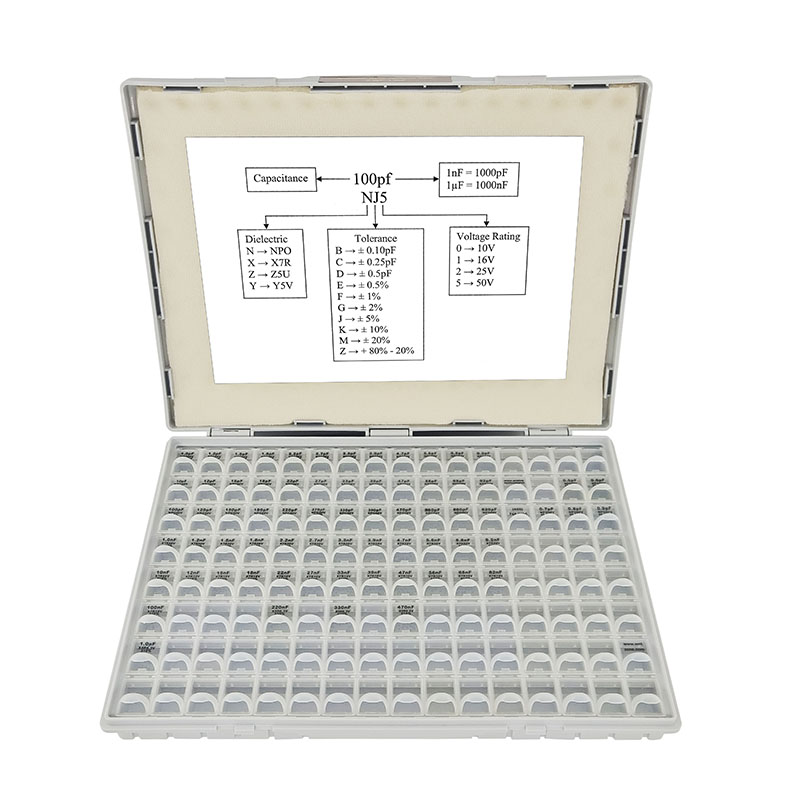

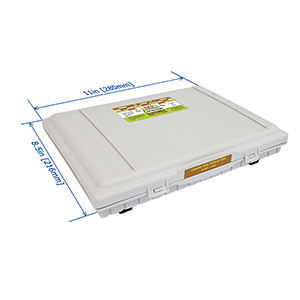

We have meticulously crafted our SMT/SMD capacitor kits with user convenience as our top priority. To ensure seamless usability, we have created a custom 128-Bin Super Enclosure. Inside, you'll find thousands of tiny capacitors, each with its capacitance value pre-sorted and securely stored in its own labeled compartment.
Our Super SMT Capacitor Kits™ are categorized by capacitor size, offering four distinct series: 0402, 0603, 0805, and 1206. Each of these kits contains capacitors with values spanning from 0.5pF to 220uF, in NPO, X7R, X5R materials, and featuring voltage ratings ranging from 6.3V to 50V, depending on the size and series. Table below shows size kit series vs. their spec. range:
Sereies | Size | Values | Values Range | Voltage Range | Materials |
---|---|---|---|---|---|
Upgraded Classic Series Capacitor Kits |
0402 | 87 | 0.5pF to 22uF | 6.3V to 50V | NPO, X7R, X5R |
0603 | 96 | 0.5pF to 47uF | 6.3V to 50V | NPO, X7R, X5R | |
0805 | 91 | 0.5pF to 100uF | 6.3V to 50V | NPO, X7R, X5R | |
1206 | 81 | 1.5pF to 220uF | 6.3V to 50V | NPO, X7R, X5R | |
Classic Series Capacitor Kits |
0402 | 70 | 0.5pF to 1.0uF | 6.3V to 50V | NPO, X7R, X5R |
0603 | 79 | 0.5pF to 4.7uF | 6.3V to 50V | NPO, X7R, X5R | |
0805 | 83 | 0.5pF to 22uF | 6.3V to 50V | NPO, X7R, X5R | |
1206 | 77 | 1.5pF to 47uF | 6.3V to 50V | NPO, X7R, X5R | |
RF Series Capacitor Kits |
0402 | 42 | 0.5pF to 1.0uF | 6.3V to 50V | NPO, X7R, X5R |
0603 | 42 | 0.5pF to 4.7nF | 6.3V to 50V | NPO, X7R, X5R | |
0805 | 42 | 0.5pF to 1.0nF | 6.3V to 50V | NPO, X7R, X5R | |
1206 | 35 | 1.5pF to 1.0nF | 6.3V to 50V | NPO, X7R, X5R |
: SMTZone.com, our store, lowest price.
: shop.analogtechnologies.com, our store, lowest price.
: Amazon, 15% higher priced due to commission fee.
: Digi-Key, 15% higher priced due to commission fee.
Note: The lead time for non-stocking kits is 1 week.
Video: SMD Capacitor Kits
Video: How It Works
Content Format |
(Part Number for Ordering) (Datasheet) (# of Pcs/Value) (Price/Kit) (Stocking Info.) (Online Store Icons) |
|||
---|---|---|---|---|
0402 | 0603 | 0805 | 1206 | |
Classic Series |
70 Values | 79 Values | 83 Values | 77 Values |
Upgraded Classic Series In one 128-Bin Super Enclosure |
89 Values | 96 Values | 91 Values | 81 Values |
RF Series |
42 Values | 42 Values | 42 Values | 35 Values |
We Also Supply Super SMT Resistor Kits and Super SMT Inductor Kits.
Datasheet for Super SMT Resistor Kits
Datasheet for Super SMT Inductor Kits
Tel.: 1(408) 748-9100.
