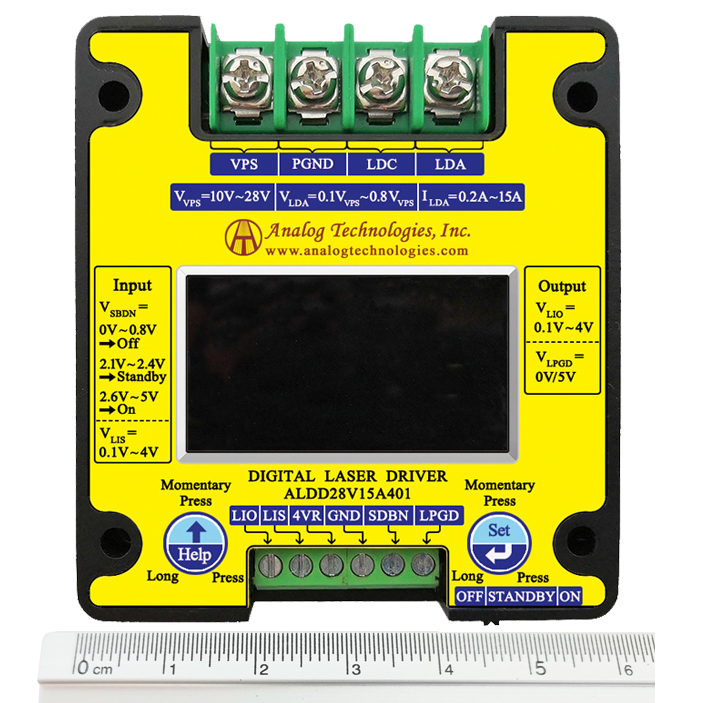

Digital High Voltage Constant Current 15A Laser Driver ALDD28V15A401

Availability: In Stock

FEATURES

●Wide Input Voltage Range: 10V∼27V ●Wide Output Voltage Range: 0.1×VVPS to 0.8×VVPS ●High Current Capability: 15A ●High Efficiency: ≥90% ●Wide Modulation Bandwidth: DC-10kHz ●Compact Size: 68.5×61.0×16.6 (mm) ●Dual Independent Current Set Ports: LISH and LISL ●100 % Lead (Pb)-free and RoHS Compliant  ●Fully Shielded  ●Low Output Ripple Voltage: <15mVP-P@500kHz

APPLICATIONS

Drive one or multiple laser diodes for DPSSL, EDFA, andfiber lasers with low noise and high efficiency.
Part Number STOCK 1-4PCs 5-24PCs 25-99 PCs ≥200 PCs Buy Now Datasheet Add TO WATCHLIST
ALDD28V15A401 1 $646.80 $623.70 $600.60 $576.35

This laser driver, ALDD28V15A401, is an electronicmodule that has all the valuable and important features, butare often difficult to achieve simultaneously such as: wideinput and output voltage range, high output currentcapability, high efficiency, low output noise (but it has anoutput 6mVp-p ripple voltage at 500kHz), wide modulationbandwidth, and small size.
