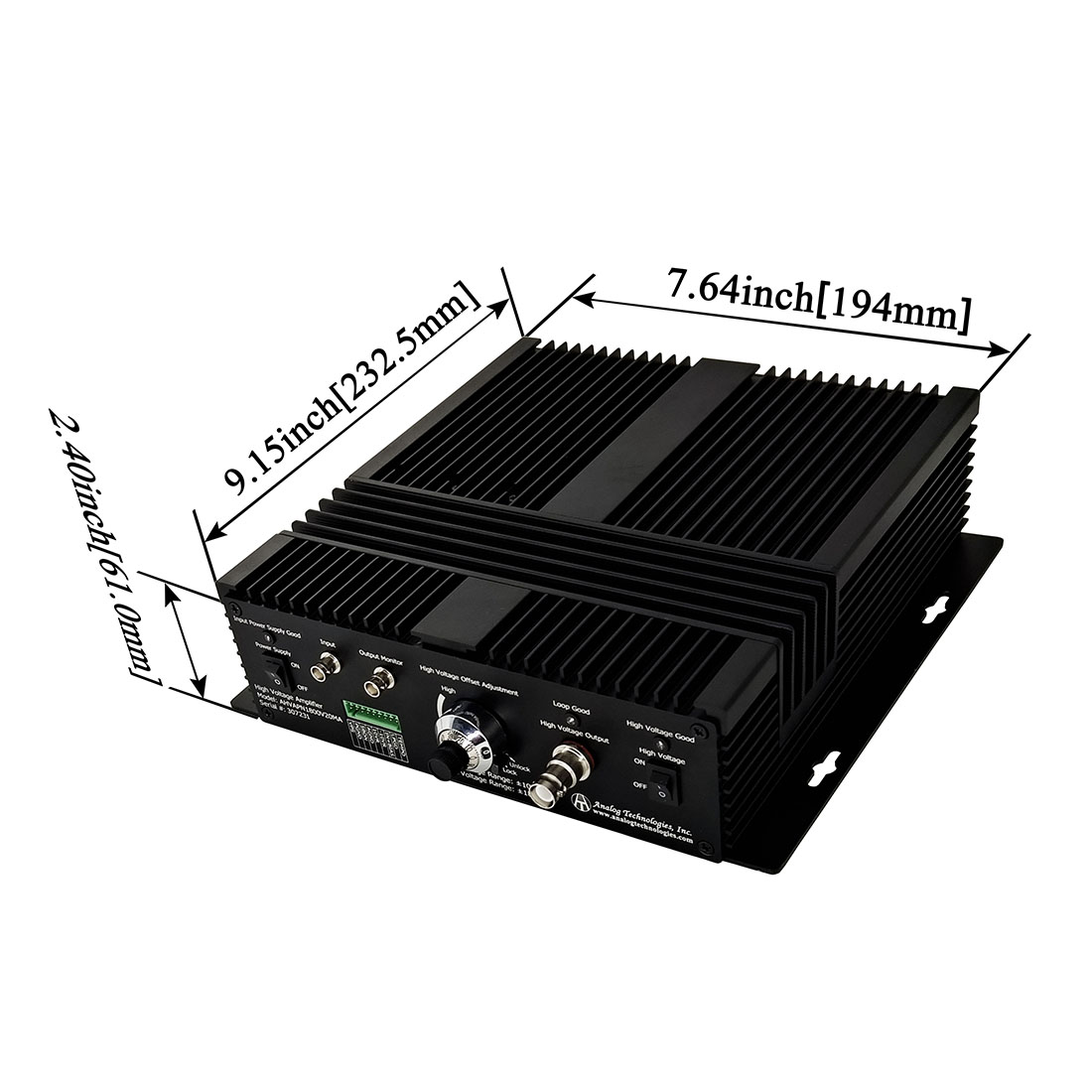

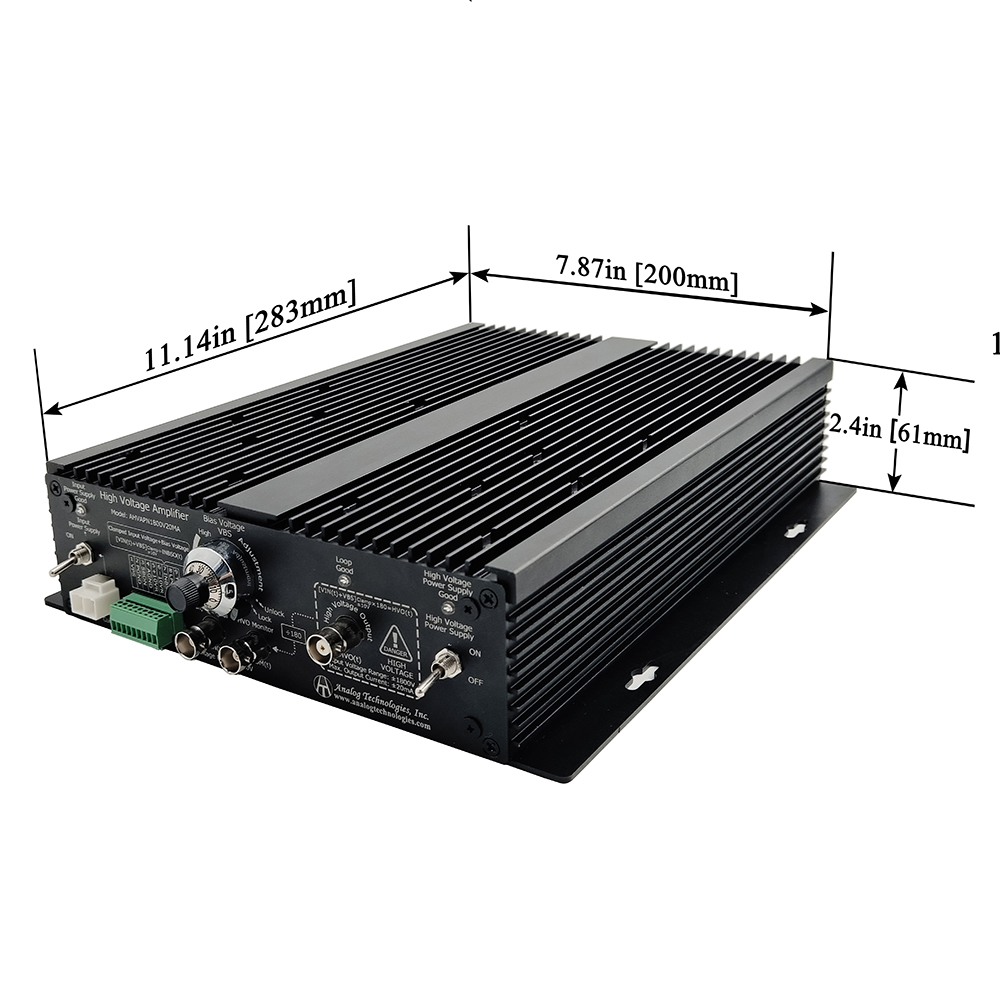

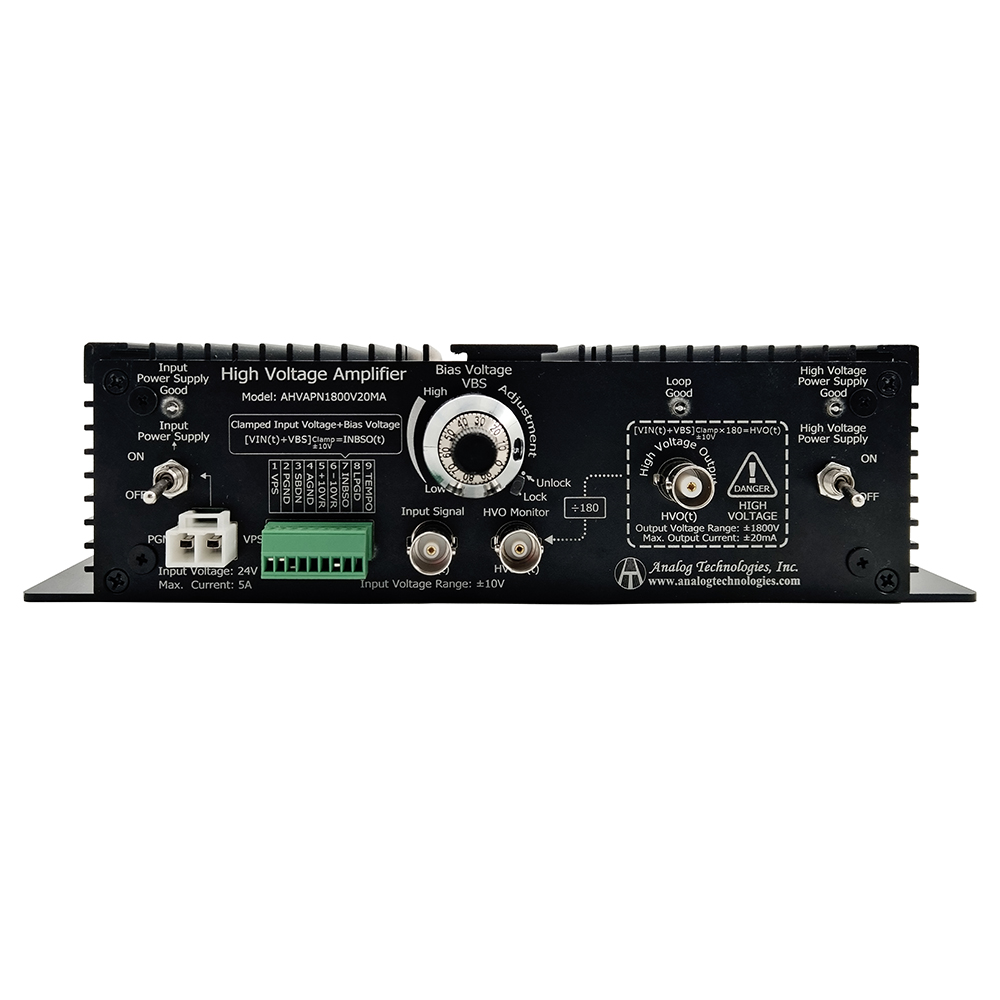

±1800V High Voltage Amplifier AHVAPN1800V20MA

Availability: In Stock

FEATURES

●Built-in High Voltage Power Supply  ●Bi-directional Output: ±1800V ●High Current Capability: Up to 20mA ●High Slew Rate: 2000V/µs@open load ●Input Signal Voltage Range: ±10V ●Adjustable Bias Voltage Range: −10V~10V

APPLICATIONS

⚫ piezoelectric transducers; ⚫ mass spectrometers; ⚫ electrostatic precipitators; ⚫ electrophoresis experiments; ⚫ high voltage storage capacitors;
Part Number STOCK 1-4 PCs 5-8 PCs 9-12 PCs 13-16 PCs 17-20 PCs ≥21 PCs Buy Now Datasheet VOUT IOUT Bandwidth Add TO WATCHLIST
AHVAPN1800V20MA 0 $1800 $1780 $1760 $1740 $1720 $1700 −1800V~1800V 20mA 15kHz@ Load = 100pF

The AHVAPN1800V20MA is an electronic module for amplifying an analog input voltage into a high voltage output.  It comes with a high voltage DC-DC converter, which converts the 24V input voltage into two output voltages: −1800V and +1800V. The analog input voltage, VIN(t), can be from −10V to +10V, the corresponding output voltage,
