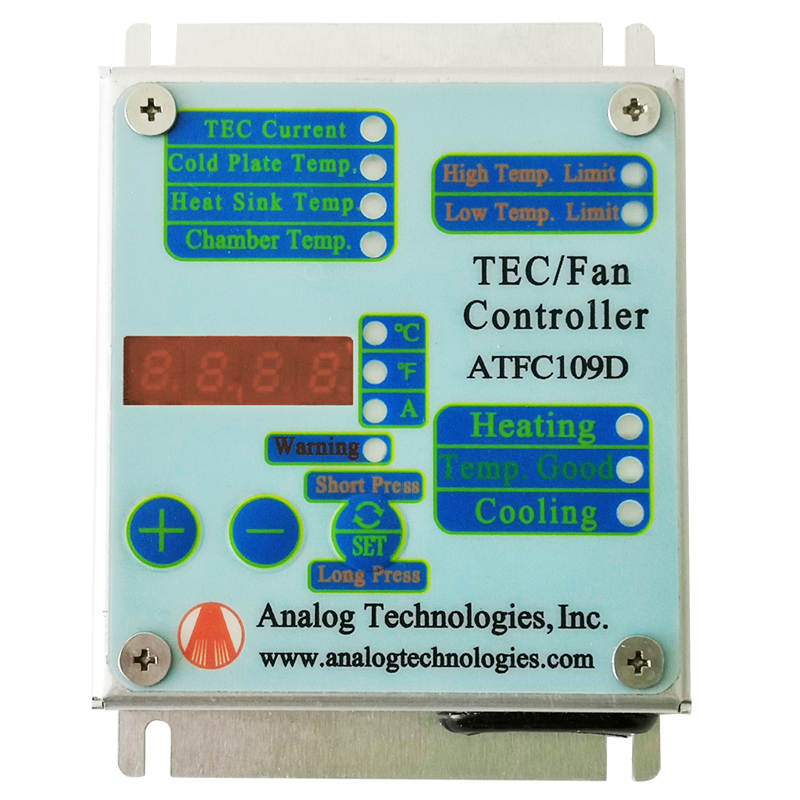

Digital TEC/Fan Controller ATFC109D

Availability:Under Development

FEATURES

●Digital Display for Parameter Setting and Monitoring  ●High Output Power for TEC: 20V 15A ●High Efficiency: >90% @ Full Load ●Bi-directional Output for Cooling or Heating  ●Continuous Regulated DC Output Current  ●Window Temperature Control Algorithm  ●No Heat Sink Required

APPLICATIONS

Drive and monitor TEC/Fan assemblies, show the realtime status of the controller on the computer
Part Number STOCK Datasheet Add TO WATCHLIST
ATFC109D 0

ATFC109D is designed for maintaining the temperature inside an enclosed chamber by driving one TEC or multiple TECs and a fan array with the working status and parameters
monitored and displayed at the same time. It allows setting the parameters of Upper Object Temperature Limit, TUOTL, and Lower Object Temperature Limit, TLOTL. The controller
integrates a micro-controller, a digital display, a few buttons and indication LEDs, a bidirectional TEC H bridge output stage and a fan driver.
