High Temperature Rectangular TEC Modules Selection Guide and Price List (December 10, 2020)

Home > TEC Modules> Thermal Cycling TEC Modules Selection Guide and Price List
ATE1-19-4ASH 4 2.3 63 20   10 4.00 $12.00 $11.50 $11.00 $10.50 - - Sealed buy now Buy now 0 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-35-1ASH 1 4.2 63 30   15 4.45 $22.56 $22.06 $21.56 $21.06 - - Sealed buy now Buy now 14 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-35-4AH 4 4.2 63 30   15 4.40 $22.56 $22.06 $21.56 $21.06 - - Non-sealed buy now Buy now 14 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-71-2BSH 2 8.5 63 30   30 4.20 $26.00 $25.50 $24.90 $24.40 - - Sealed buy now Buy now 5 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-71-3BH 3 8.5 63 30   30 4.80 $26.00 $25.50 $24.90 $24.40 - - Non-sealed Buy nowbuy now 0 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-71-3BSH 3 8.5 63 30   30 4.80 $26.00 $25.50 $24.90 $24.40 - - Sealed buy now Buy now 0 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-71-4BH 4 8.5 63 30   30 4.40 $26.00 $25.50 $24.90 $24.40 - - Non-sealed buy nowBuy now 0 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-71-4BSH 4 8.5 63 30   30 4.40 $26.00 $25.50 $24.90 $24.40 - - Sealed buy nowBuy now 18 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-71-5BH 5 8.5 63 30   30 4.11 $26.00 $25.50 $24.90 $24.40 - - Non-sealed buy nowBuy now 0 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-71-5BSH 5 8.5 63 30   30 4.11 $26.00 $25.50 $24.90 $24.40 - - Sealed buy nowBuy now  0 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-71-6ASH 6 8.5 63 30   30 4.08 $26.00 $25.50 $24.90 $24.40 - - Sealed buy nowBuy now 0 3-4 weeks - 1-2 weeks TEC5V4A-D
ATE1-71-7ASH 7 8.5 63 30   30 3.68 $26.00 $25.50 $24.90 $24.40 - - Sealed Buy nowbuy now 0 3-4 weeks - 1-2 weeks TEC5V4A-D
ATE1-71-8ASH 8 8.5 63 30   30 3.60 $26.00 $25.50 $24.90 $24.40 - - Sealed buy nowBuy now 5 3-4 weeks - 1-2 weeks TEC5V4A-D
ATE1-127-3AH 3 15.4 63 30   30 3.60 $27.20 $26.50 $25.90 $25.20 - - Non-sealed buy nowBuy now 5 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-3ASH 3 15.4 63 30   30 3.60 $27.20 $26.50 $25.90 $25.20 - - Sealed buy nowBuy now 5 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-3BH 3 15.4 67 40   40 4.40 $28.20 $27.50 $26.90 $26.20 - - Non-sealed buy nowBuy now 5 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-3BSH 3 15.4 67 40   40 4.80 $28.20 $27.50 $26.90 $26.20 - - Sealed buy nowBuy now 20 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-4AH 4 15.4 63 30   30 3.20 $27.20 $26.50 $25.90 $25.20 - - Non-sealed buy nowBuy now 2 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-4ASH 4 15.4 63 30   30 3.20 $27.20 $26.50 $25.90 $25.20 - - Sealed buy nowBuy now 5 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-4BH 4 15.4 67 40   40 3.80 $28.20 $27.50 $26.90 $26.20 - - Non-sealed buy nowBuy now 5 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-4BSH 4 15.4 67 40   40 4.40 $28.20 $27.50 $26.90 $26.20 - - Sealed buy nowBuy now 18 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-5AH 5 15.4 63 30   30 3.46 $27.20 $26.50 $25.90 $25.20 - - Non-sealed buy nowBuy now 0 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-5ASH 5 15.4 63 30   30 3.46 $14.5 $13.5 $12.5 $11.5 $10.5 $8.5 Sealed buy nowBuy now 5 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-5BH 5 15.4 67 40   40 3.90 $28.20 $27.50 $26.90 $26.20 - - Non-sealed buy nowBuy now 5 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-6AH 6 15.4 67 40   40 4.09 $28.20 $27.50 $26.90 $26.20 - - Non-sealed buy nowBuy now 0 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-6ASH 6 15.4 67 40   40 4.09 $15.0 $14.0 $13.0 $12.0 $11.0 $9.0 Sealed buy nowBuy now 2 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-7BSH 7 15.4 68 50   50 4.70 $32.10 $31.40 $30.70 $30.00 - - Sealed buy nowBuy now 0 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-8AH 8 15.4 67 40   40 3.50 $28.20 $27.50 $26.90 $26.20 - - Non-sealed buy nowBuy now 5 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-8ASH 8 15.4 67 40   40 3.50 $28.20 $27.50 $26.90 $26.20 - - Sealed buy nowBuy now 5 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-8BSH 8 15.4 68 50   50 5.20 $32.10 $31.40 $30.70 $30.00 - - Sealed buy nowBuy now 0 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-9ASH 9 15.4 68 50   50 4.95 $32.10 $31.40 $30.70 $30.00 - - Sealed buy nowBuy now 0 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-10ASH 10 15.4 67 40   40 3.65 $28.20 $27.50 $26.90 $26.20 - - Sealed buy nowBuy now 5 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-10BSH 10 15.4 68 50   50 4.20 $33.10 $32.40 $31.70 $31.00 - - Sealed buy nowBuy now 5 3-4 weeks - 1-2 weeks TECA1-5V-5V-D
ATE1-127-12BSH 12 15.4 68 50   50 4.62 $34.10 $33.40 $32.70 $32.00 - - Sealed buy nowBuy now 12 3-4 weeks 4 1-2 weeks TEC5V4A-D
ATE1-127-15ASH 15 15.4 67 40   40 3.75 $29.20 $28.50 $27.90 $27.20 - - Sealed buy nowBuy now 2 3-4 weeks - 1-2 weeks TEC5V4A-D
ATE1-127-15BSH 15 15.4 68 50   50 4.30 $34.10 $33.40 $32.70 $32.00 - - Sealed buy nowBuy now 0 3-4 weeks - 1-2 weeks TEC5V4A-D
ATE1-127-17AH 17 15.4 63 50   50 3.74 $35.10 $34.40 $33.70 $33.00 - - Non-sealed buy nowBuy now 0 3-4 weeks 2 1-2 weeks Note 1*
ATE1-127-18ASH 18 15.4 68 50   50 3.8 $36.10 $35.40 $34.70 $34.00 - - Sealed buy nowBuy now 0 3-4 weeks - 1-2 weeks Note 1*
ATE1-127-26ASH 26 15.4 68 50   50 3.67 $24.10 $23.40 $22.70 $22.00 - - Sealed buy nowBuy now 6 3-4 weeks - 1-2 weeks Note 1*
Part #
Imax
(A)
Vmax
(V)
Qmax
(W)
DTmax*
(°C)
 Lc
(mm)
Lh
(mm)
W
(mm)
H
(mm)
1-4 PCs
5-24 PCs
25-99 PCs
≥100 PCs
500-499 PCs
 Note Buy Now
US
Stock
US
Lead Time
 Non-US
Stock
Non-US
Lead Time
 TEC Controller
Recommended

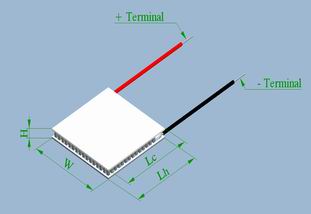

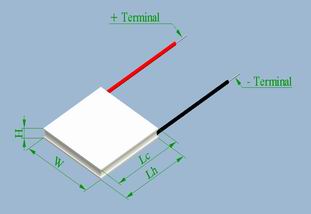

The Dimensions of Single-stage TECs (Sealed) The Dimensions of Single-stage TECs (Non-sealed)
*Note 1: No appropriate TEC controller to be recommended, because the impedance, Vmax/Imax, is <1 Ohm.
*DTmax: DT stands for Differential Temperature between TEC's 2 plates.
