High Efficiency AC Input 50A 6V Laser Driver AAS50A6V3

Availability: In Stock

FEATURES

●High efficiency: ≥ 70 % ●Maximum output current: 50A ●Wide output voltage: 1V ~ 6V ●Wide input voltage: 100VAC ~ 240VAC ●High speed digital modulation: 5kHz ●Low temperature rise: 30°C ●Over-temperature protection  ●Low corner noise at 0.1 ~ 10Hz: 354μAP-P

APPLICATIONS

Driving high current laser diode bars with high stability and high efficiency.
Part Number STOCK 1-9PCs 10-49PCs 50-199 PCs 200-499 PCs ≥500 PCs Buy Now Datasheet Add TO WATCHLIST
AAS50A6V3 0 $299 $279 $259 $239 $219

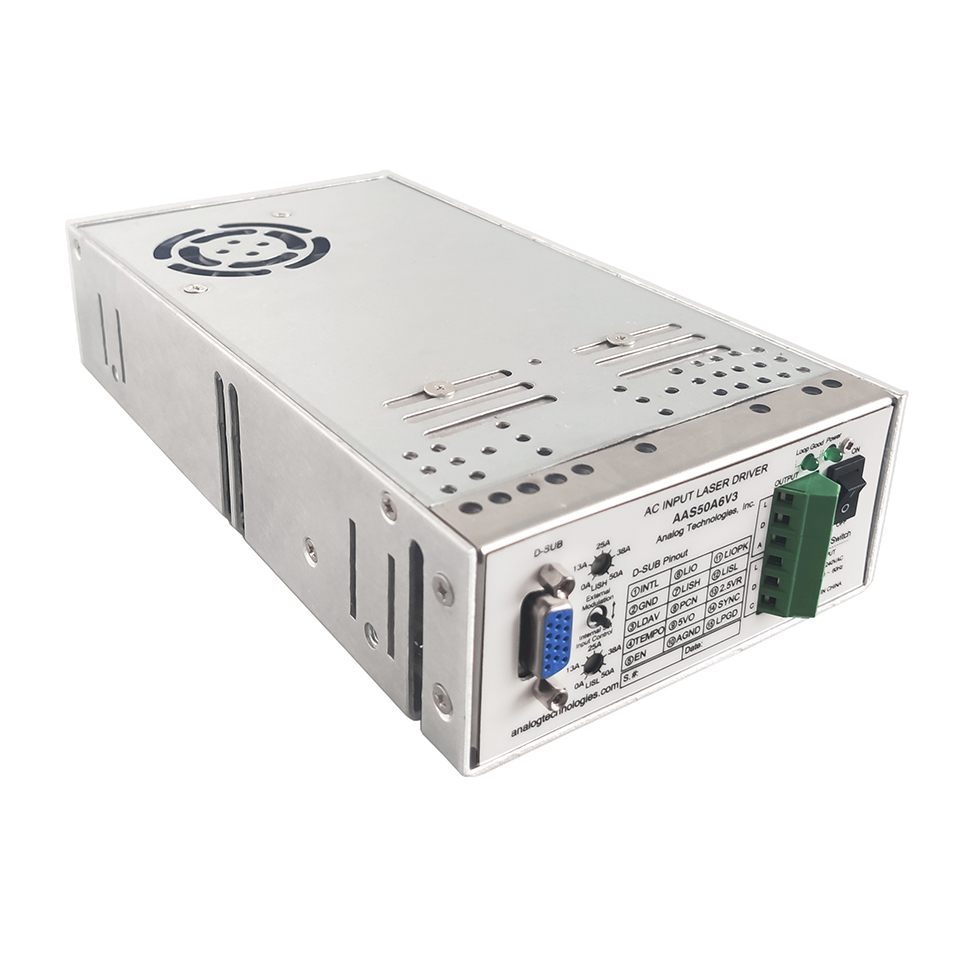

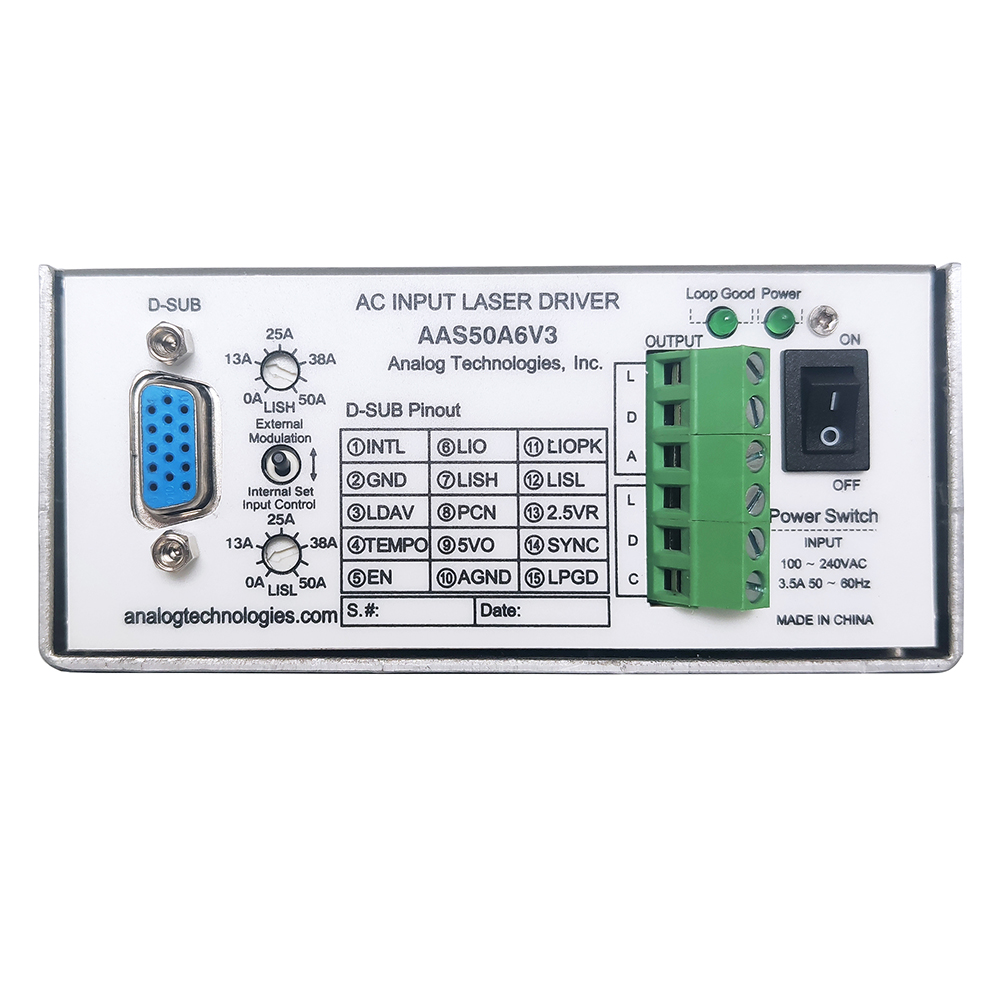

The AAS50A6V3 is an electronic power supply brick designed for driving laser diodes with up to 50A low noise current. The output current can be set by an analog voltage of 0V to 2.5V, an external potentiometer, or the built-in internal potentiometer, to between 0 and 50A.
