High Efficiency AC Input 25A 6V Laser Driver AAS50A12V1

Availability: In Stock

FEATURES

●High efficiency: ≥ 85% ●Maximum output current: 50A ●Wide output voltage: 3V ~ 12V ●Wide input voltage: 100VAC ~ 240VAC ●High speed digital modulation: 1kHz ●Low temperature rise: 30°C ●Over-temperature protection  ●Operating temperature: °20C ~ 50°C

APPLICATIONS

Driving high current laser diode bars with high stability and high efficiency.
Part Number STOCK Datasheet Add TO WATCHLIST
AAS50A12V1 1

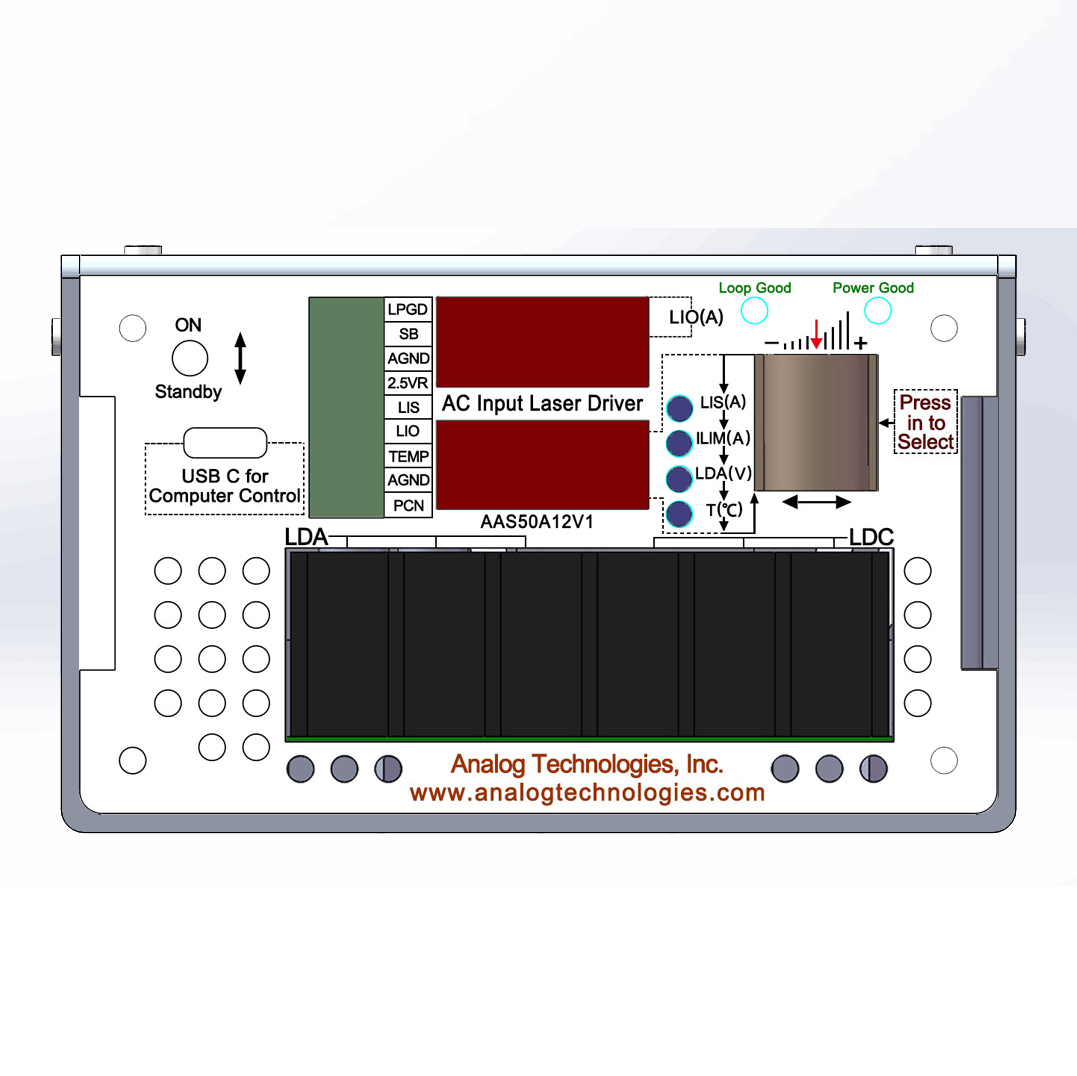

The AAS50A12V1 is an electronic power supply block designed for driving diode lasers with up to 50A low noise current. The output current can be set by an analog voltage of
0V to 12V, an external potentiometer, or an internal potentiometer, to between 0A and 50A.
