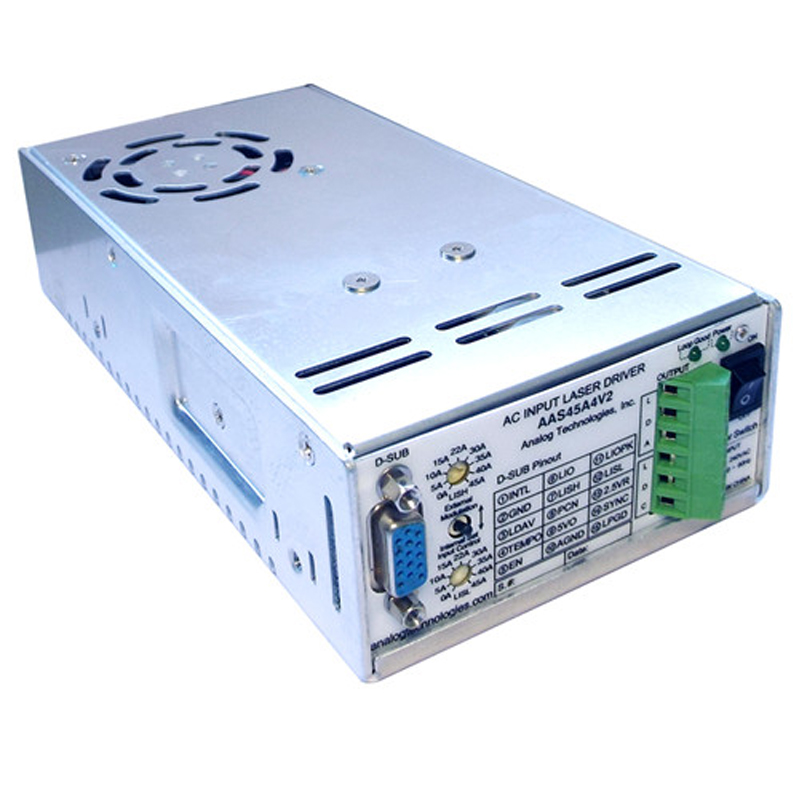

High Efficiency AC Input 45A 4V Laser Driver AAS45A4V2

Availability: In Stock

FEATURES

●High efficiency: ≥ 76 % ●Maximum output current: 45A ●Wide output voltage: 1V ~ 4V ●Wide input voltage: 100VAC ~ 240VAC ●High speed digital modulation: 5kHz ●Low temperature rise: 30°C ●Over-temperature protection  ●Operating temperature: −20°C ~ 50°C ●MBTF (Mean Time Before Failure): 180,000 hours

APPLICATIONS

Driving high current laser diode bars with high stability and high efficiency.
Part Number STOCK 1-9PCs 10-49PCs 50-199 PCs 200-499 PCs ≥500 PCs Buy Now Datasheet Add TO WATCHLIST
AAS45A4V2 0 $299 $279 $259 $239 $219

The AAS45A4V2 is an electronic power supply block designed for driving diode lasers with up to 45A low noise current. The output current can be set by an analog voltage of 0V to 2.5V, an external potentiometer, or an internal potentiometer, to between 0A and 45A.
