High Efficiency AC Input 16A 9.5V Laser Driver AAS16A9.5V2

Availability: In Stock

FEATURES

●High efficiency: ≥ 70 % ●Maximum output current: 16A ●Wide output voltage: 1V ~ 9.5V ●Wide input voltage: 100VAC ~ 240VAC ●High speed digital modulation: 5kHz ●Low temperature rise: 30°C ●Over-temperature protection  ●Low corner noise at 0.1 ~ 10Hz: 354μAP-P

APPLICATIONS

Driving high current laser diode bars with high stability and high efficiency.
Part Number STOCK 1-9PCs 10-49PCs 50-199 PCs 200-499 PCs ≥500 PCs Buy Now Datasheet Add TO WATCHLIST
AAS16A9.5V2 0 $299 $279 $259 $239 $219

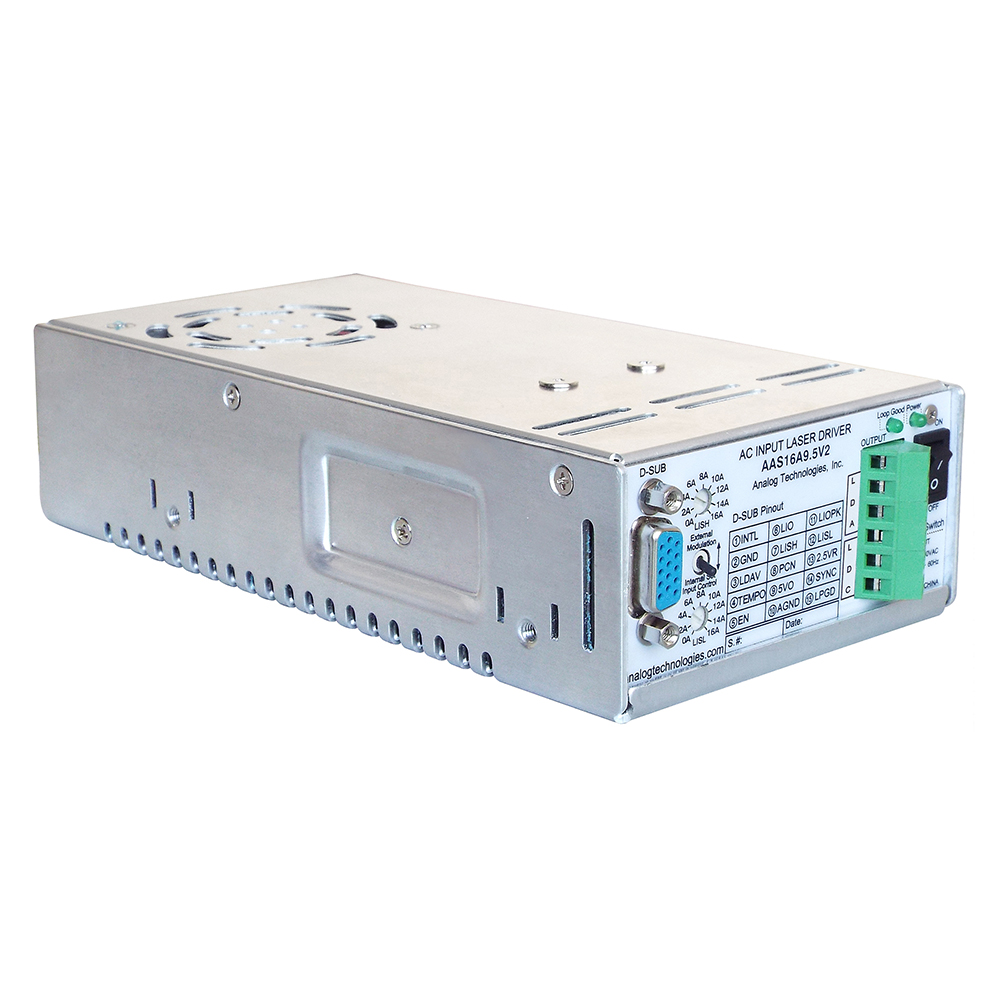

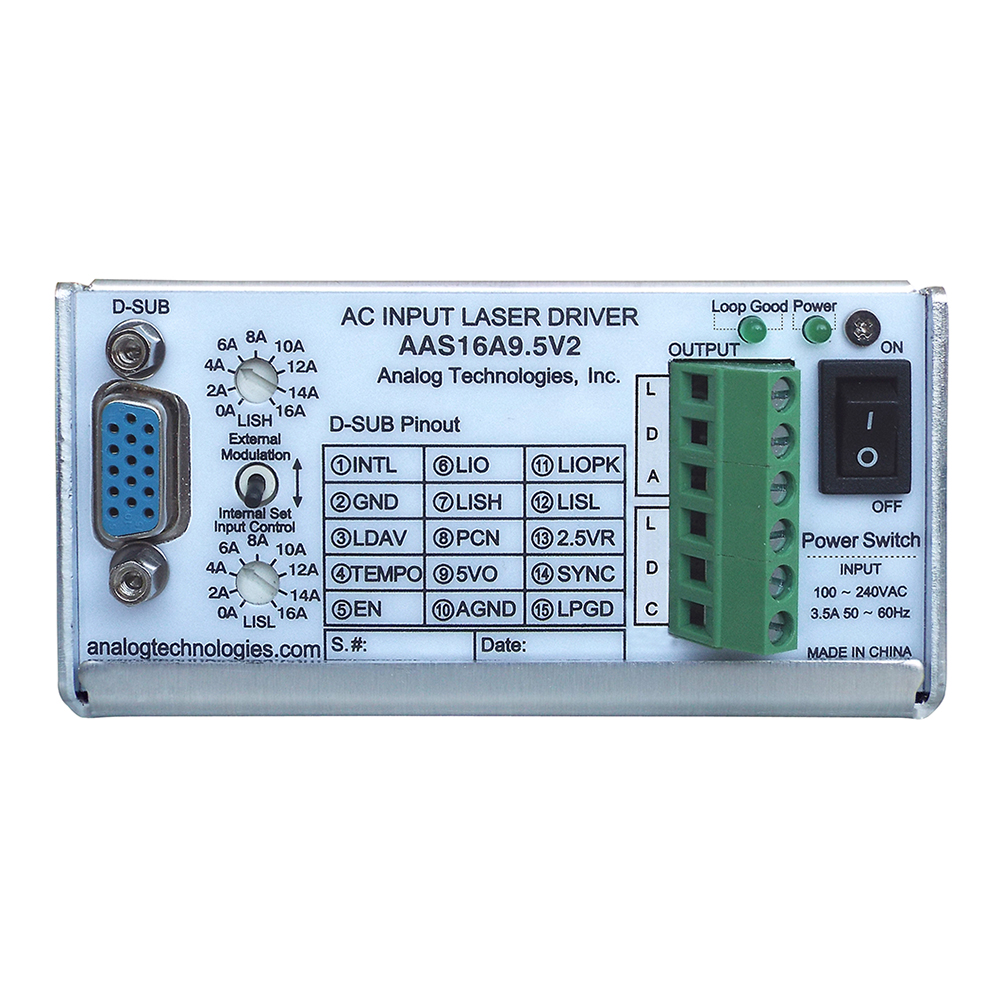

The AAS16A9.5V2 is an electronic power supply brick designed for driving laser diodes with up to 16A low noise current. The output current can be set by an analog voltage of 0V to 2.5V, an external potentiometer, or the built-in internal potentiometer, to between 0 and 16A.
