High Efficiency AC Input 100A 5V Laser Driver AAS100A5V1

Availability: In Stock

FEATURES

●High efficiency: ≥ 85 % ●Maximum output current: 100A ●Wide output voltage: 1.5V ~ 5V ●Wide input voltage: 100VAC ~ 240VAC ●High speed digital modulation: 1kHz ●Low temperature rise: 30°C ●Over-temperature protection  ●The ripple noise at 600kHz: <24mVP-P

APPLICATIONS

Driving high current laser diode bars with high stability and high efficiency.
Part Number STOCK 1-9PCs 10-49PCs 50-249 PCs 250-249 PCs ≥ 500 PCs Buy Now Datasheet Add TO WATCHLIST
AAS100A5V1 0 $499 $479 $459 $439 $419

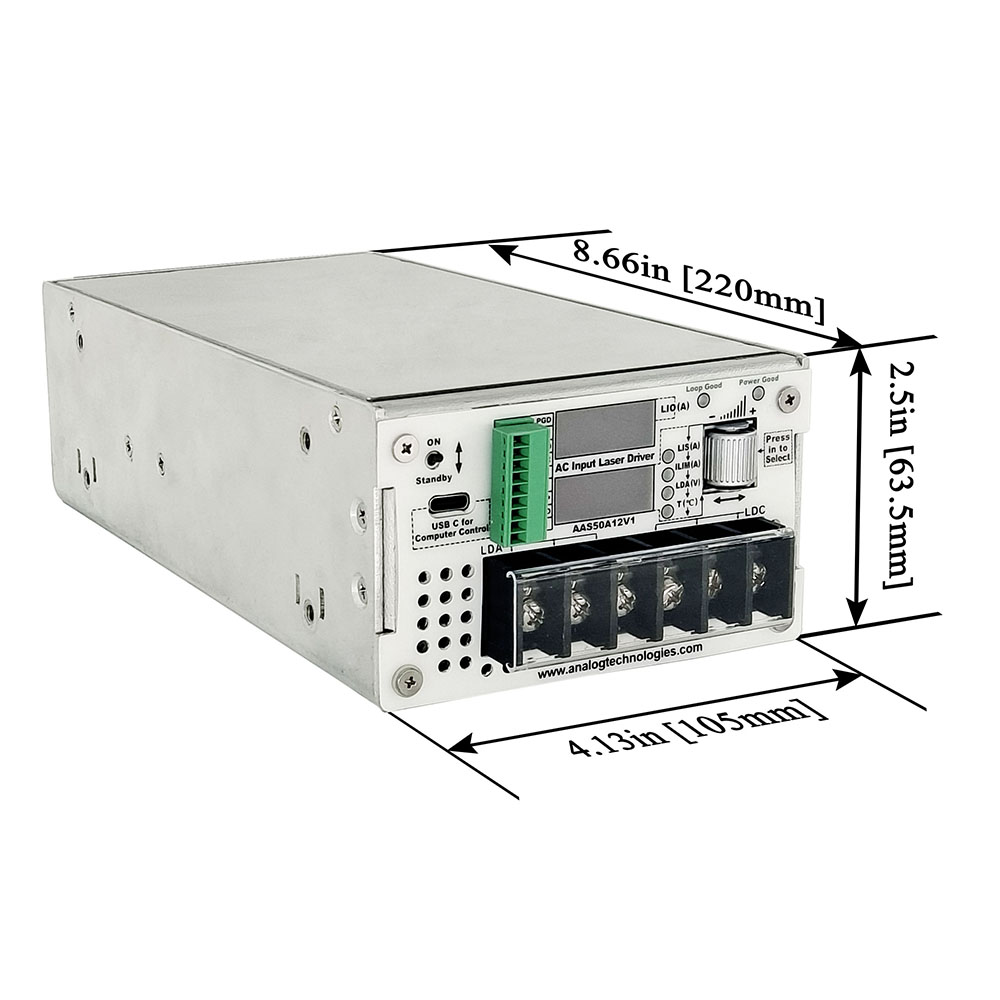

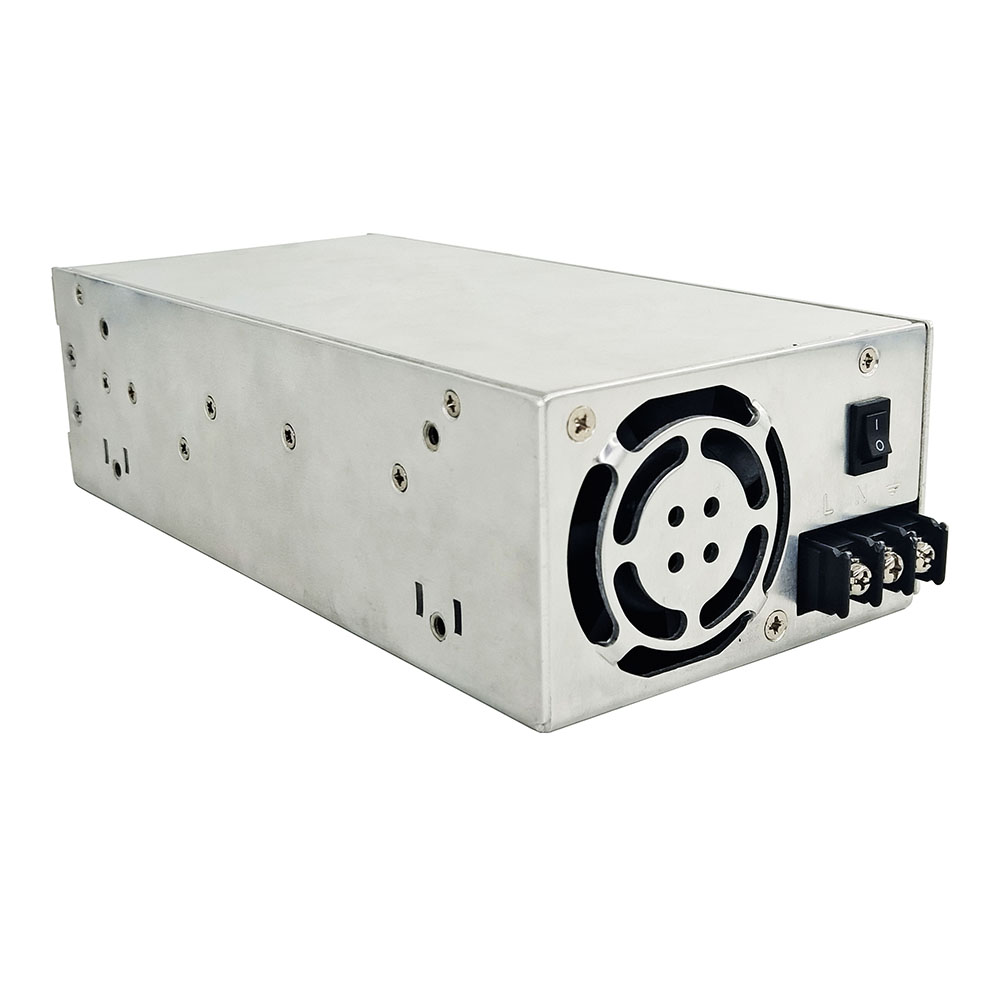

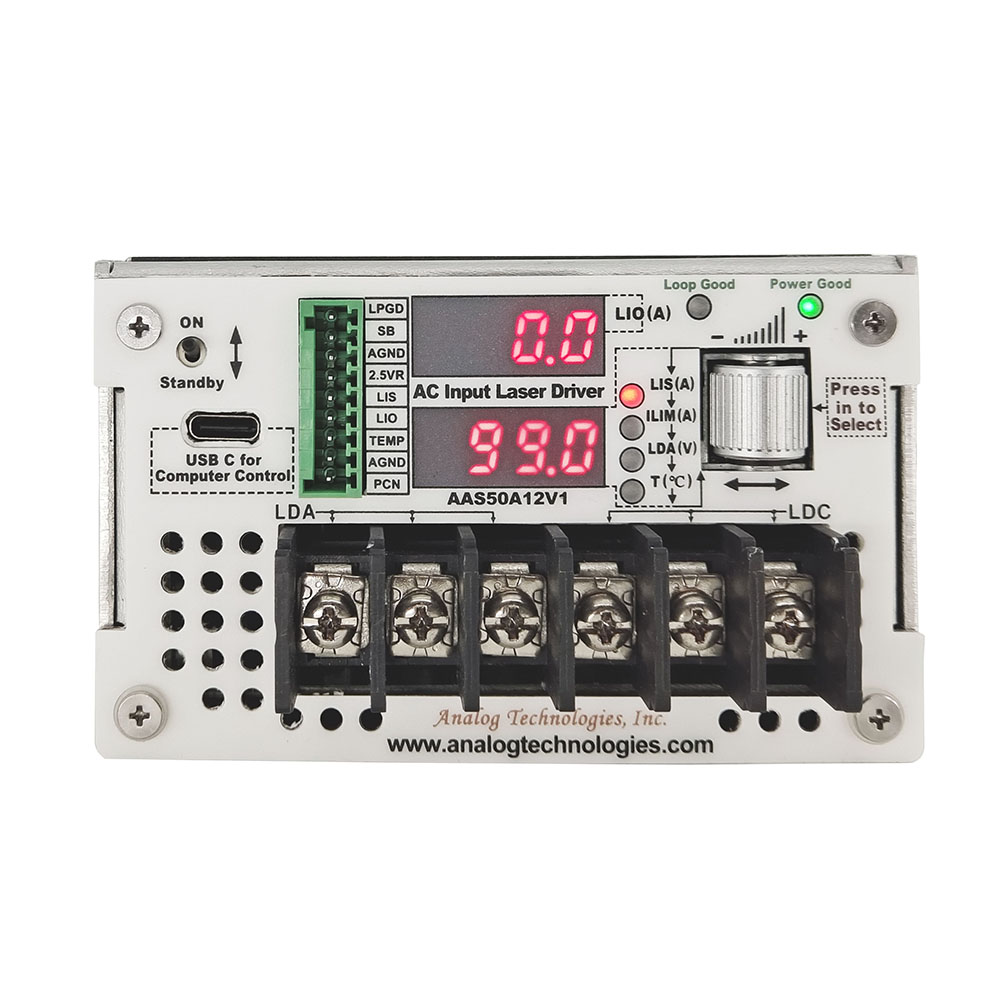

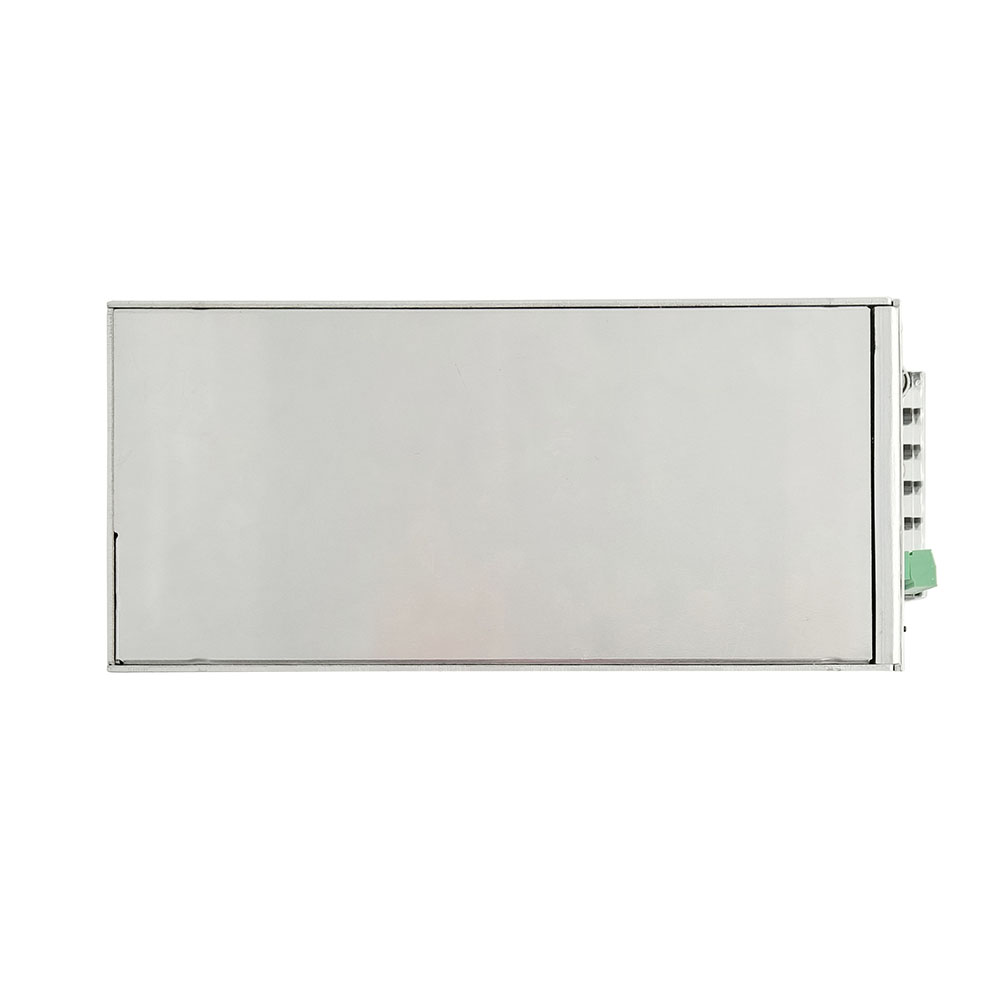

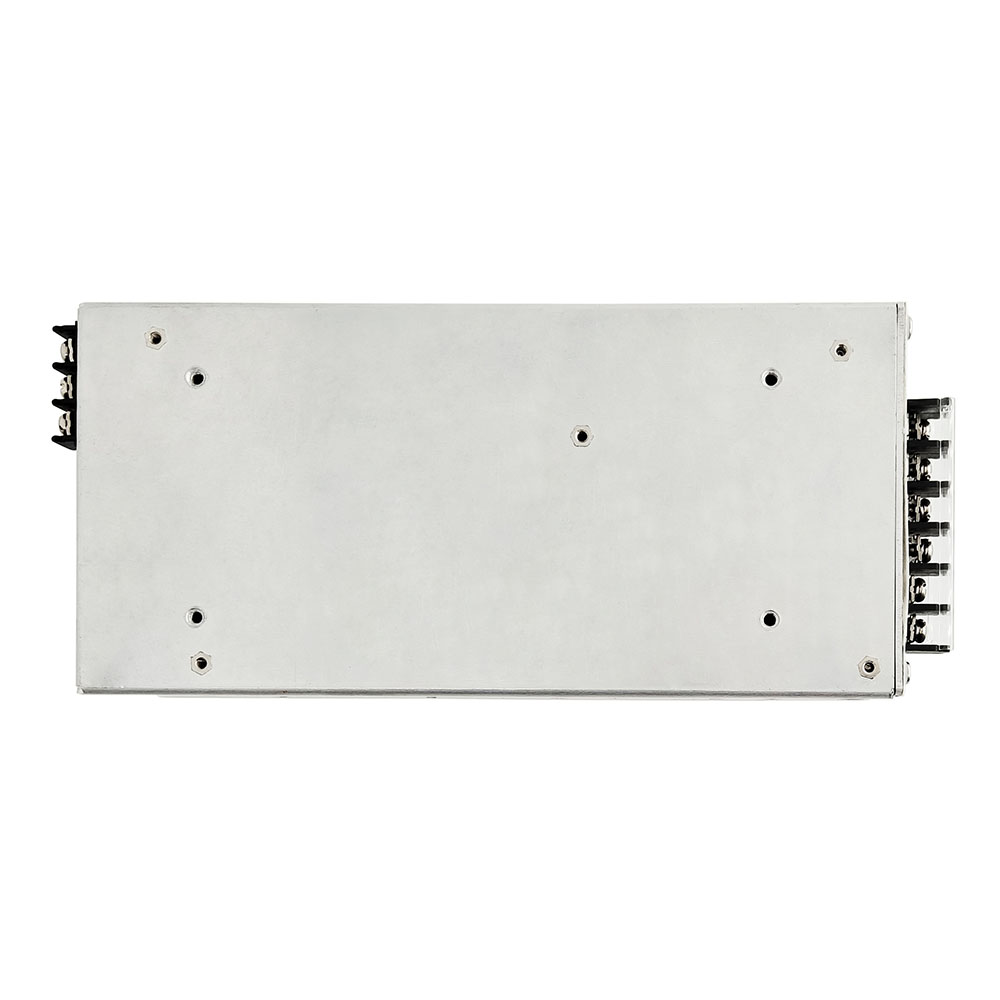

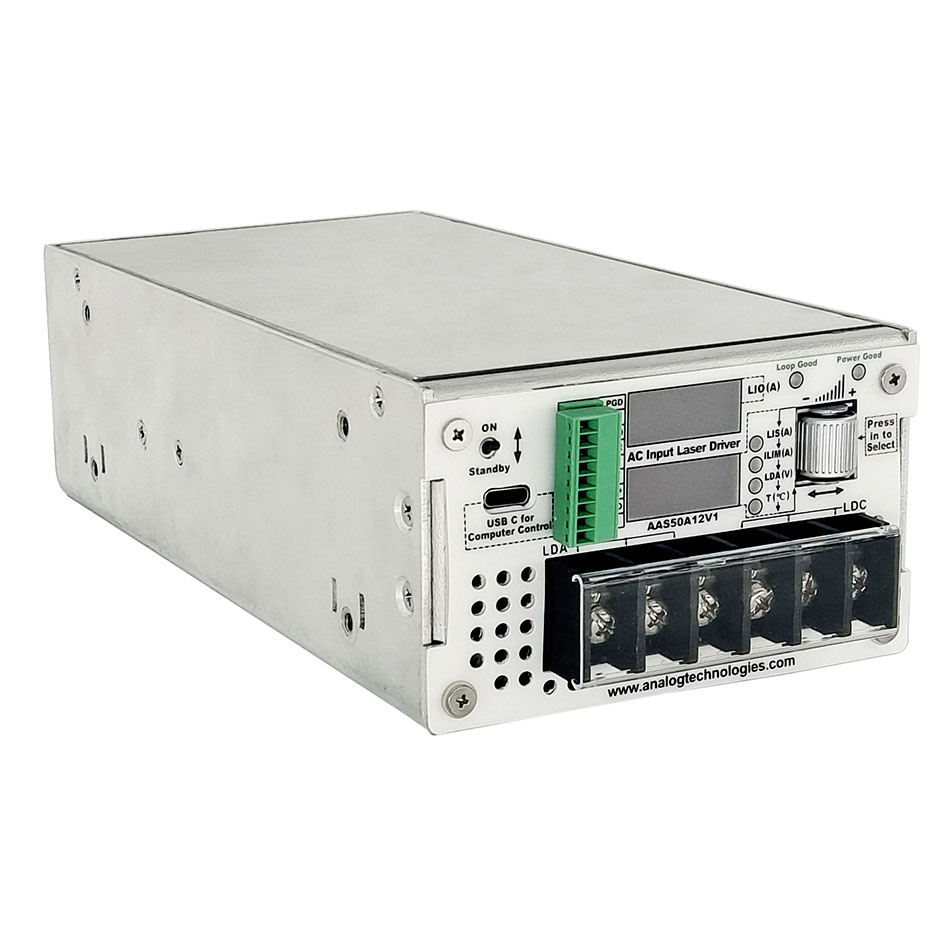

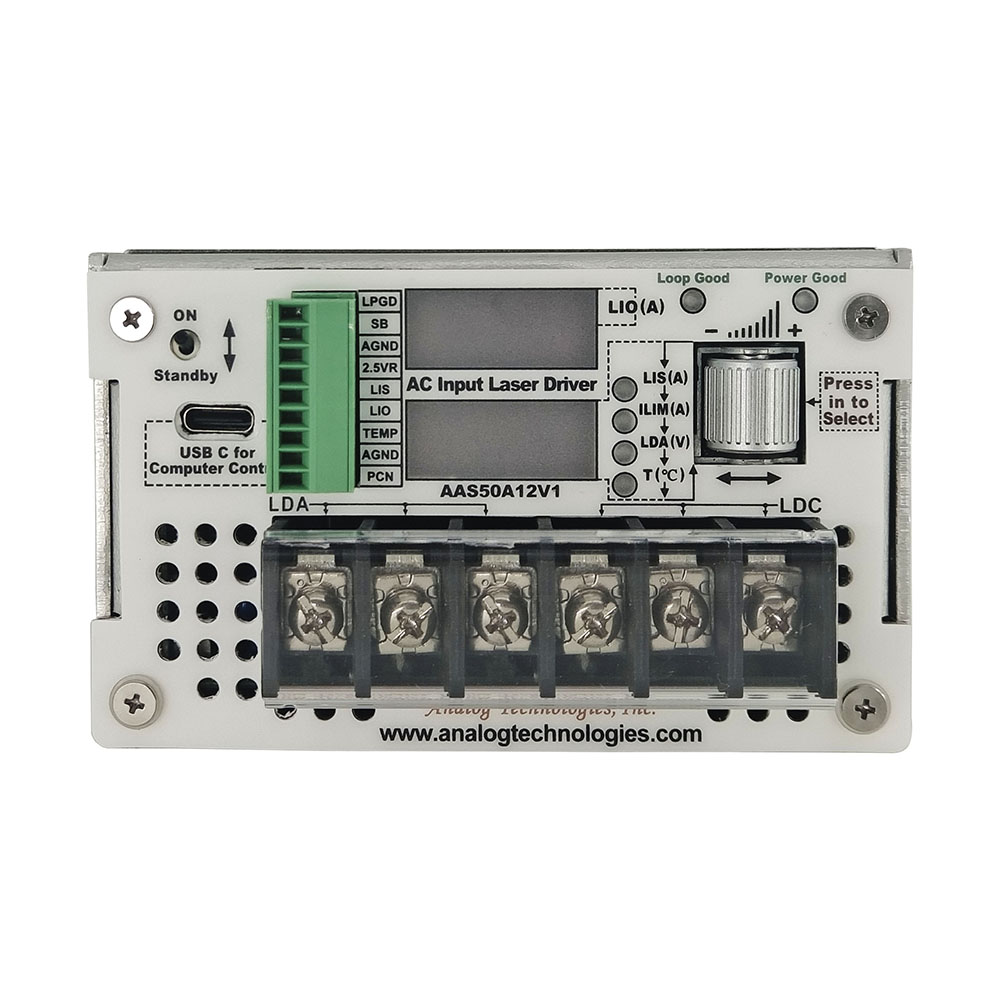

The AAS100A5V1 is an electronic power supply block designed for driving diode lasers with up to 100A low noise current. The output current can be set by an analog voltage of 0V to 5V, an external potentiometer, or an internal potentiometer, to between 0A and 100A.
