The AHV24V30KVR5MAW is a high-performance DC-DC converter module with an input range of 18-36V DC and a robust output of 24V/30A (720W). Designed for industrial automation, telecom systems, and high-power applications, it features 95% efficiency, overvoltage/overcurrent/short-circuit protection, and an extended operating temperature range (-40°C to +85°C). Compliant with EN 62477-1 safety standards, its metal-cased thermal design ensures reliability and supports parallel operation for scalable power solutions

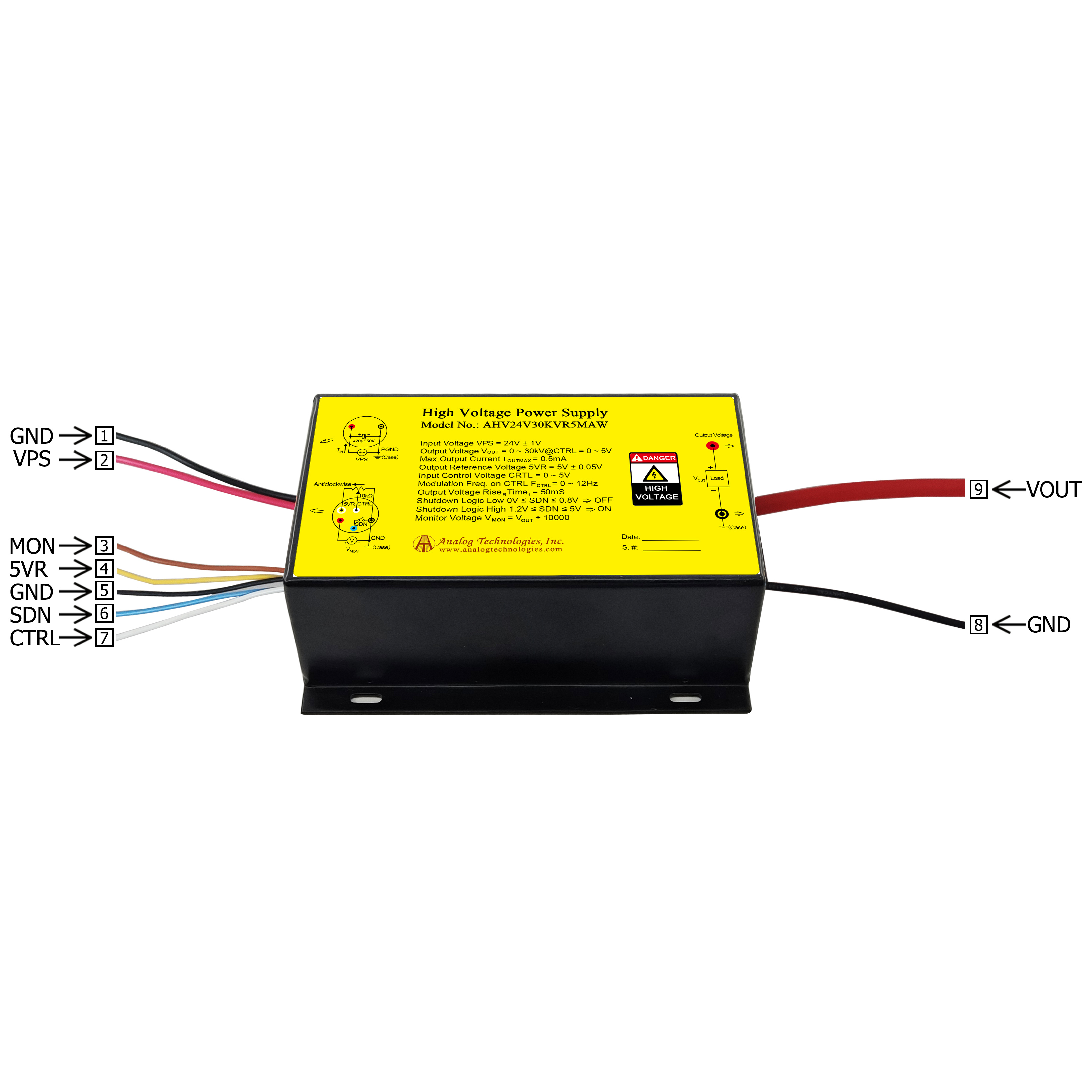

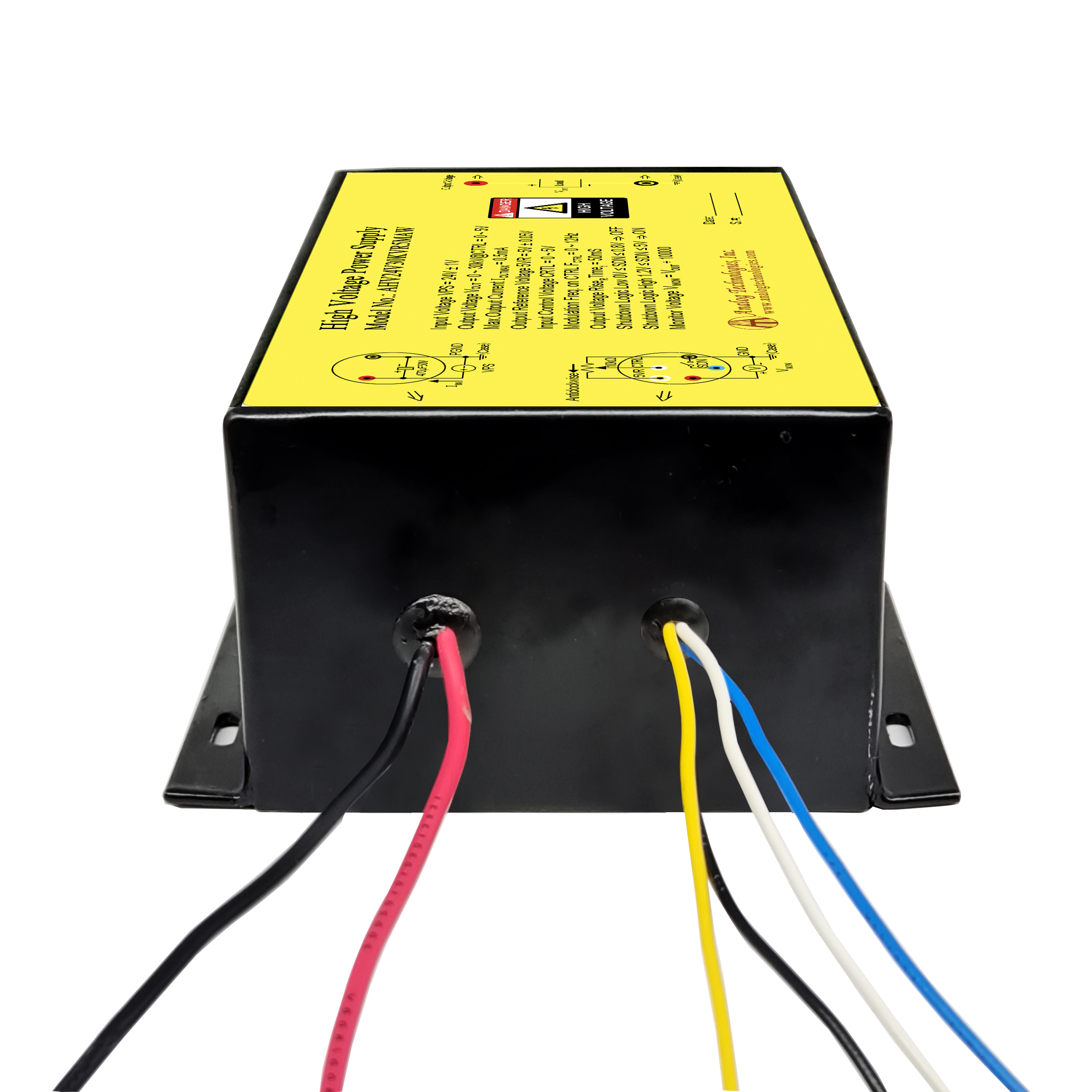

Draw a clear distinction between input lead and output lead: input 24V (red lead), ground electrodes (black lead), regulation wire (white lead), reference voltage 5V (yellow lead), shutdown (blue lead), and output high-tension cable (thick brown lead).
While regulating the potentiometer, connect the intermediate tap of the potentiometer with white lead, and connect the other two ends to ground (black lead) and reference voltage (yellow lead) respectively. Switch on the power, and regulate the potentiometer to have the required output voltage.
